Komotek :1KW 380VAC Brushless Motor With Brake and oil seal,With Biss-C Absolute Encoder,KANS-10GG2TC
Komotek :1KW 380VAC Brushless Motor With Brake and oil seal,With Biss-C Absolute Encoder,KANS-10GG2TC


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KANS-10GG2TC
Qty:

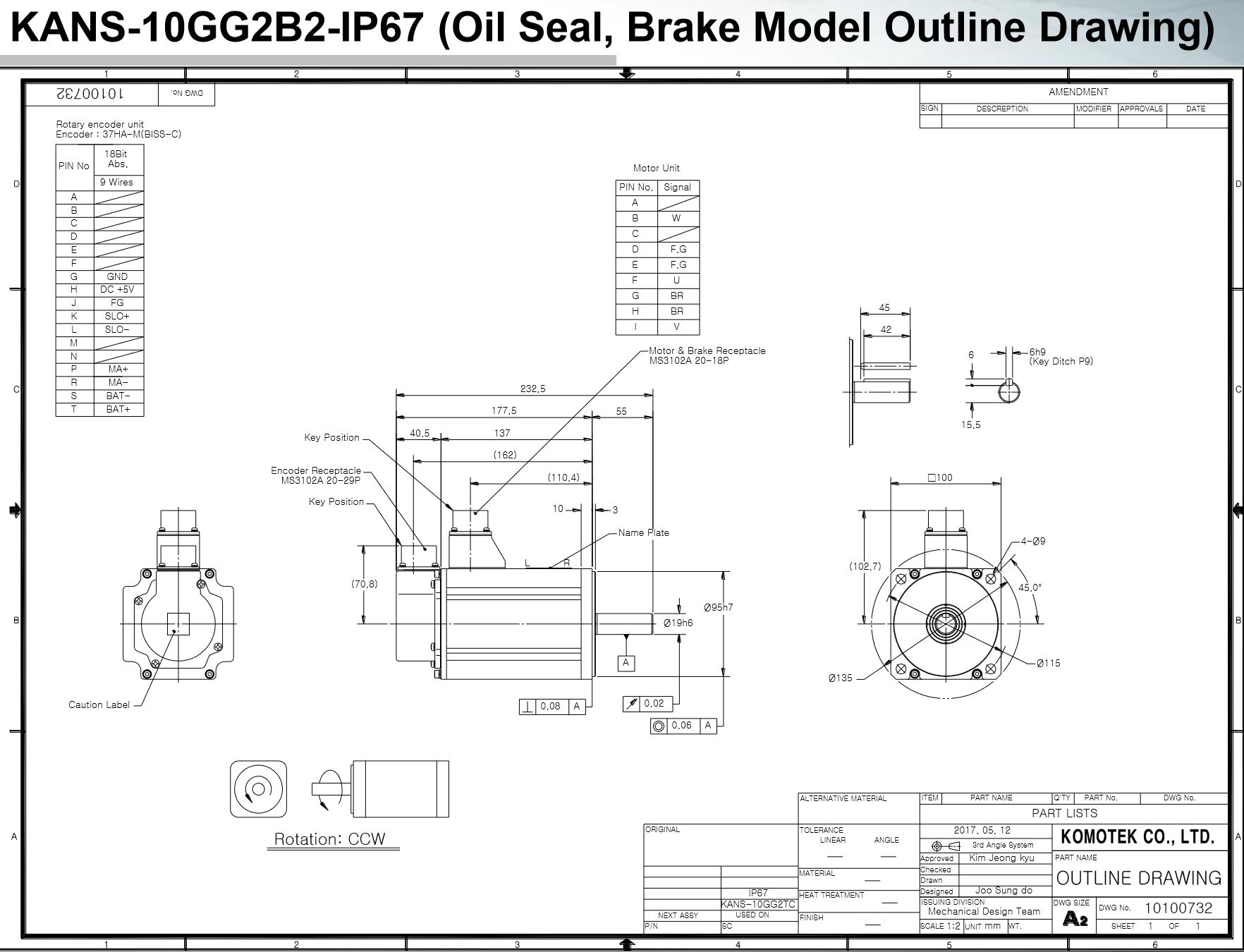

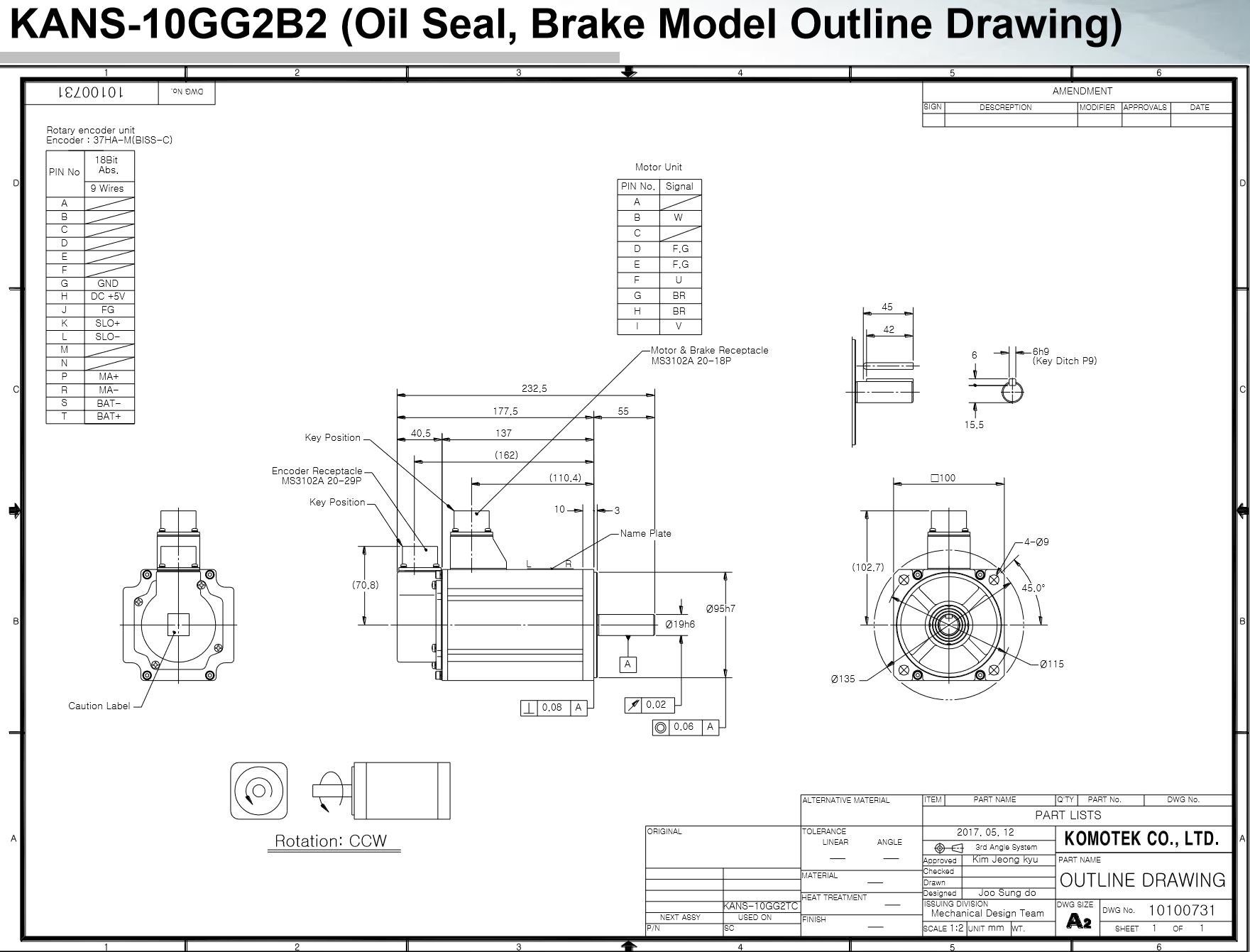

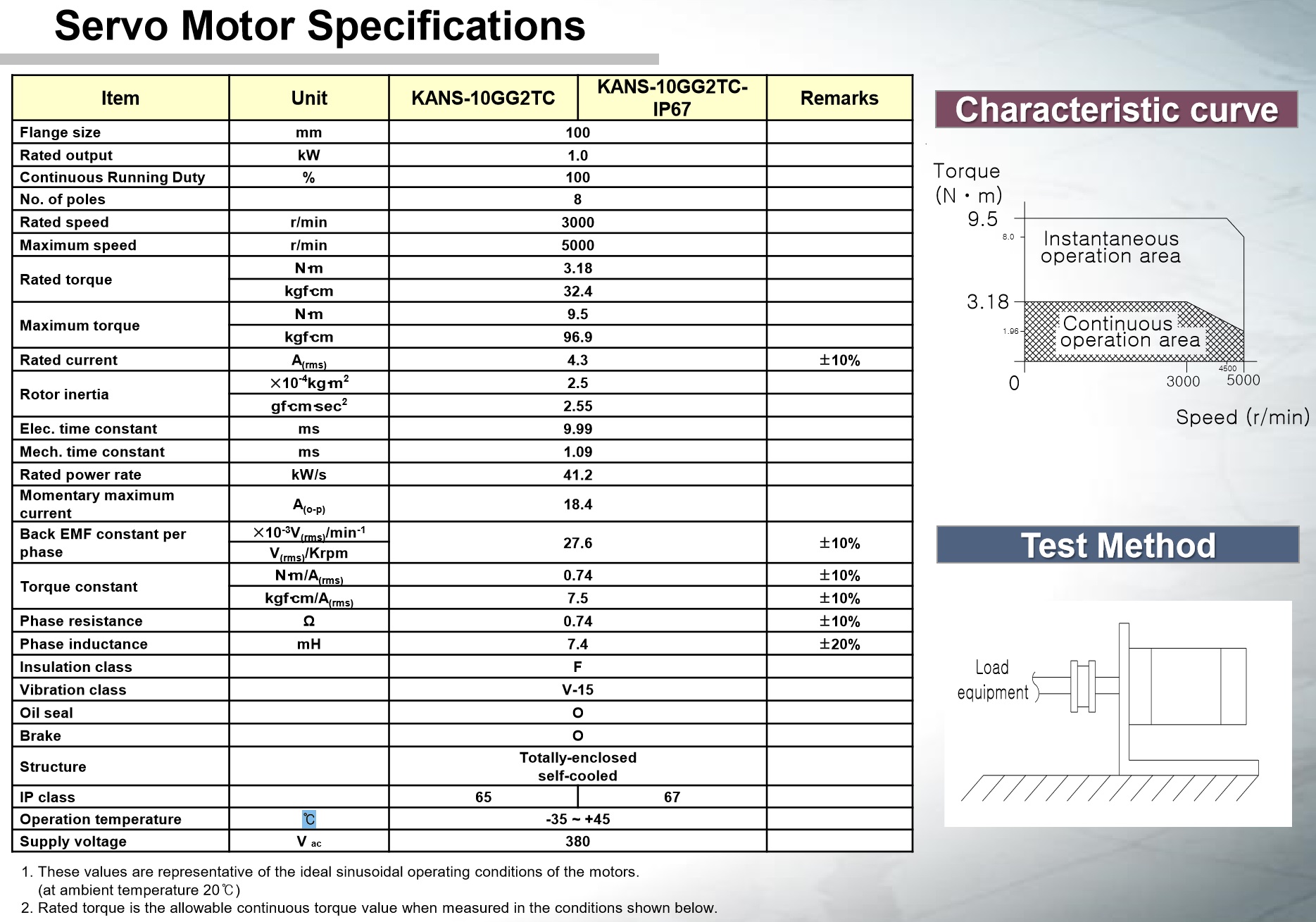

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KANSSeries can be applied to High frequency positioning equipments, Assembly robots, Welding robots, High speed precision tools..High speed, quick response servomotor
Minimization of cogging torque through magnet shape design.Minimization of torque ripple through core optimum shape design.

Motor Model:KANS-10GG2NC
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：380VAC
Motor Poles:8
Motor Rated Output:1000W
Motor Flange Size：100mm
Motor Rated Phase Current：4.3A
Motor Peak Phase Current:18.4A
Motor Rated Torque：3.18Nm
Motor Maximum Torque:9.5Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：25.4 x10-4kg·m2
Motor Feedback:17Bits Biss-C Absolute Encoder
Motor Protection level：IP65
Motor Operation Temperature：-35-+45℃

Motor Model:KANZ-KANS-10GG2TC
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：380VAC
Motor Poles:8
Motor Rated Output:1000W
Motor Flange Size：100mm
Motor Rated Phase Current：4.3A
Motor Peak Phase Current:18.4A
Motor Rated Torque：3.18Nm
Motor Maximum Torque:9.5Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia：27.6 x10-4kg·m2
Motor Feedback:17Bits Biss-C Absolute Encoder
Motor Protection level：IP65
Motor Operation Temperature：-35-+45℃
