Komotek :1.2KW 48VDC Brushless Motor With Brake KANS-12DF2B2
Komotek :1.2KW 48VDC Brushless Motor With Brake KANS-12DF2B2


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KANS-12DF2B2
Qty:

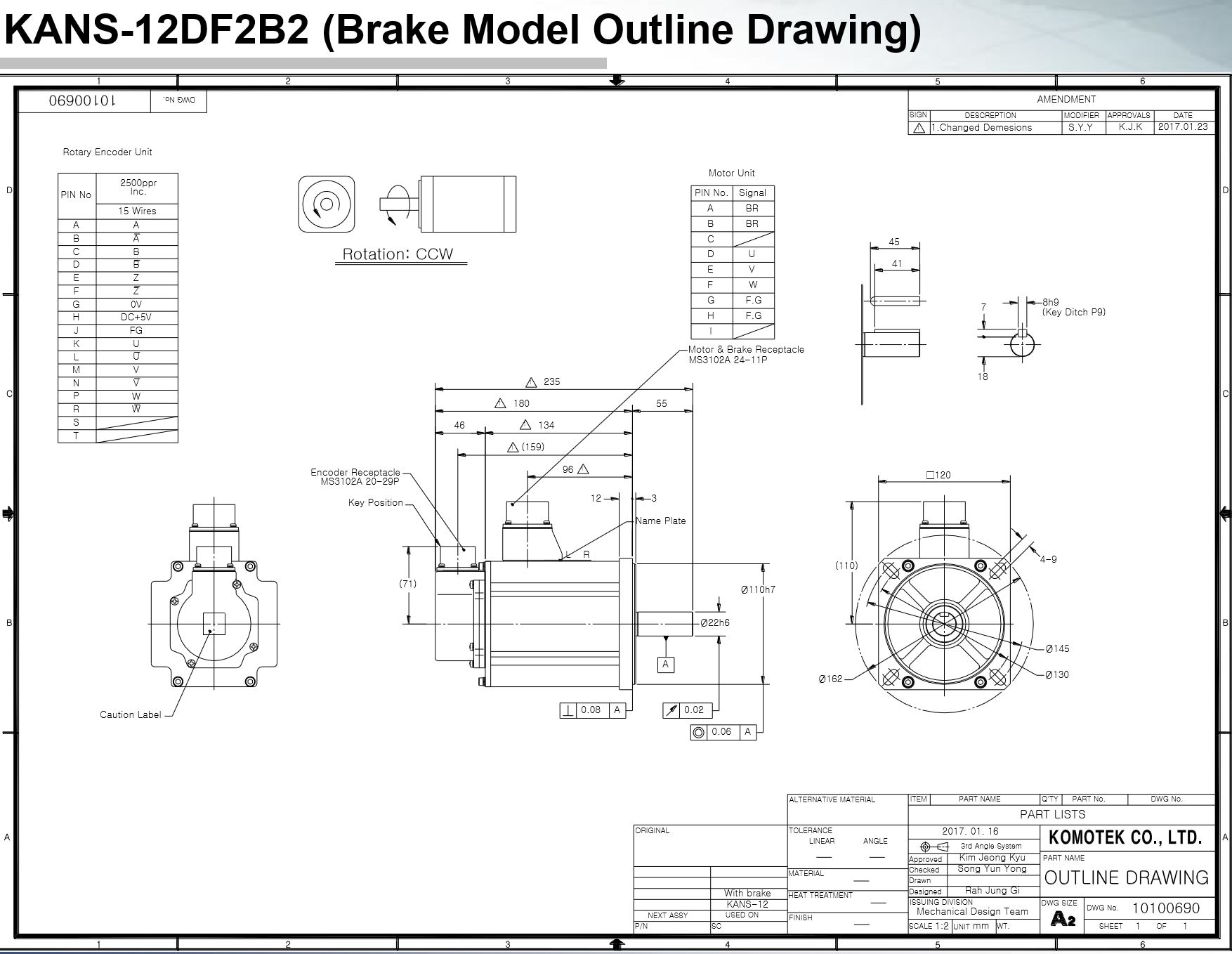

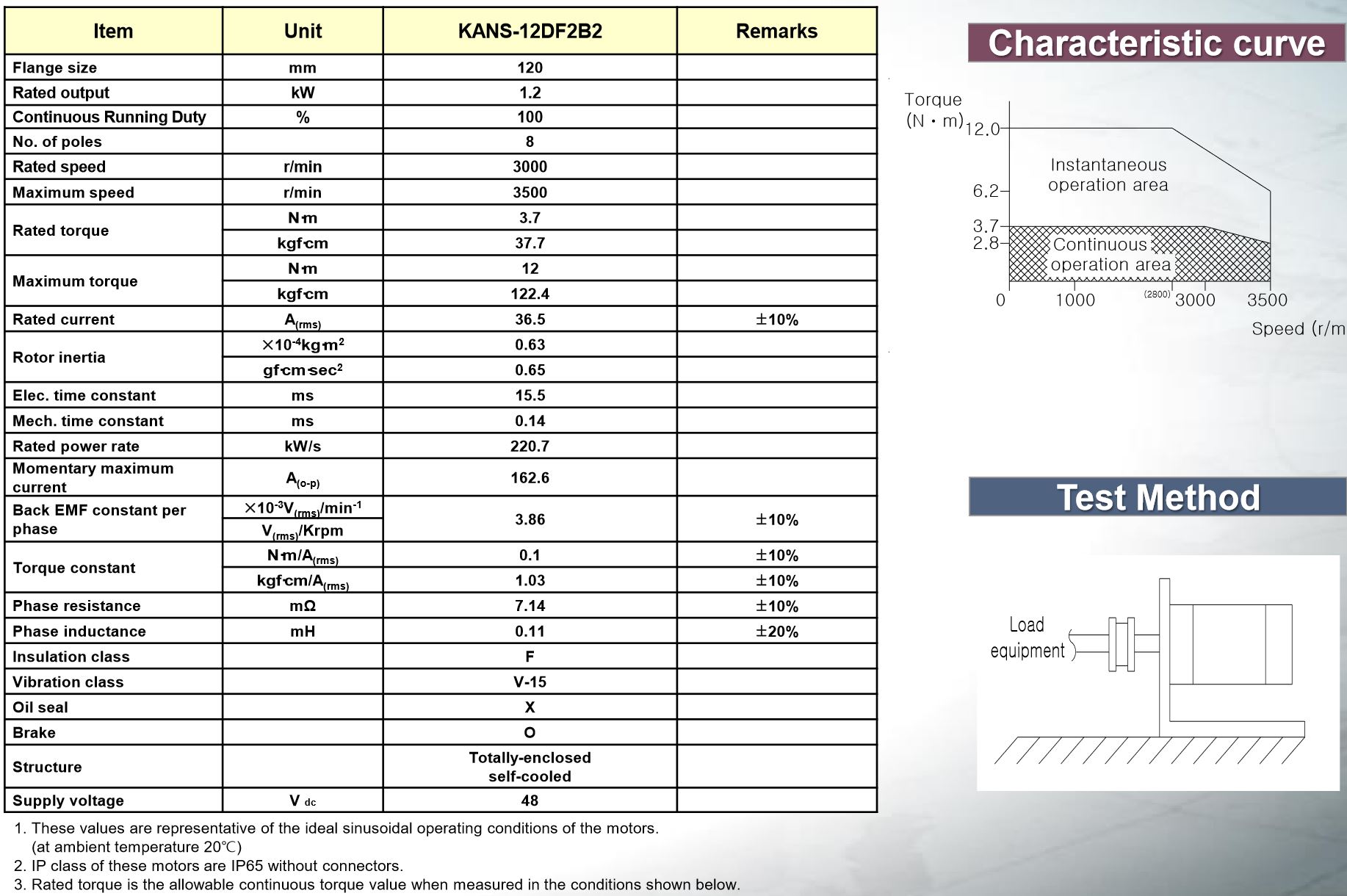

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.

KANS Series is High speed, quick response servomotor,Minimization of cogging torque through magnet shape design.Minimization of torque ripple through core optimum shape design.Main application is High frequency positioning equipments, Assembly robots, Welding robots, High speed precision tools

Motor Model:KANS-12DF2N2
Motor Type：DC Brushless Servo Motor without Brake
Motor Voltage：48VDC
Motor Poles:8
Motor Rated Output:1200W
Motor Flange Size：120mm
Motor Rated Phase Current：36.5A
Motor Peak Phase Current:126.6A
Motor Rated Torque：3.7Nm
Motor Maximum Torque:12Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
Rotor inertia：0.936 x10-4kg·m2

Motor Model:KANS-12DF2B2
Motor Type：DC Brushless Servo Motor with Brake
Motor Voltage：48VDC
Motor Poles:8
Motor Rated Output:1200W
Motor Flange Size：120mm
Motor Rated Phase Current：36.5A
Motor Peak Phase Current:162.6A
Motor Rated Torque：3.7Nm
Motor Maximum Torque:12Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:3500RPM
Rotor inertia：1.081 x10-4kg·m2
