Komotek :4.5KW 380VAC Brushless Motor With Brake and oil seal,With Biss-C Absolute Encoder,KANS-45GG2TC-IP67
Komotek :4.5KW 380VAC Brushless Motor With Brake and oil seal,With Biss-C Absolute Encoder,KANS-45GG2TC-IP67


Price: (Members Only)


Availability: Usually Ships in 4 to 6 Weeks
Order #: KANS-45GG2TC-IP67
Qty:

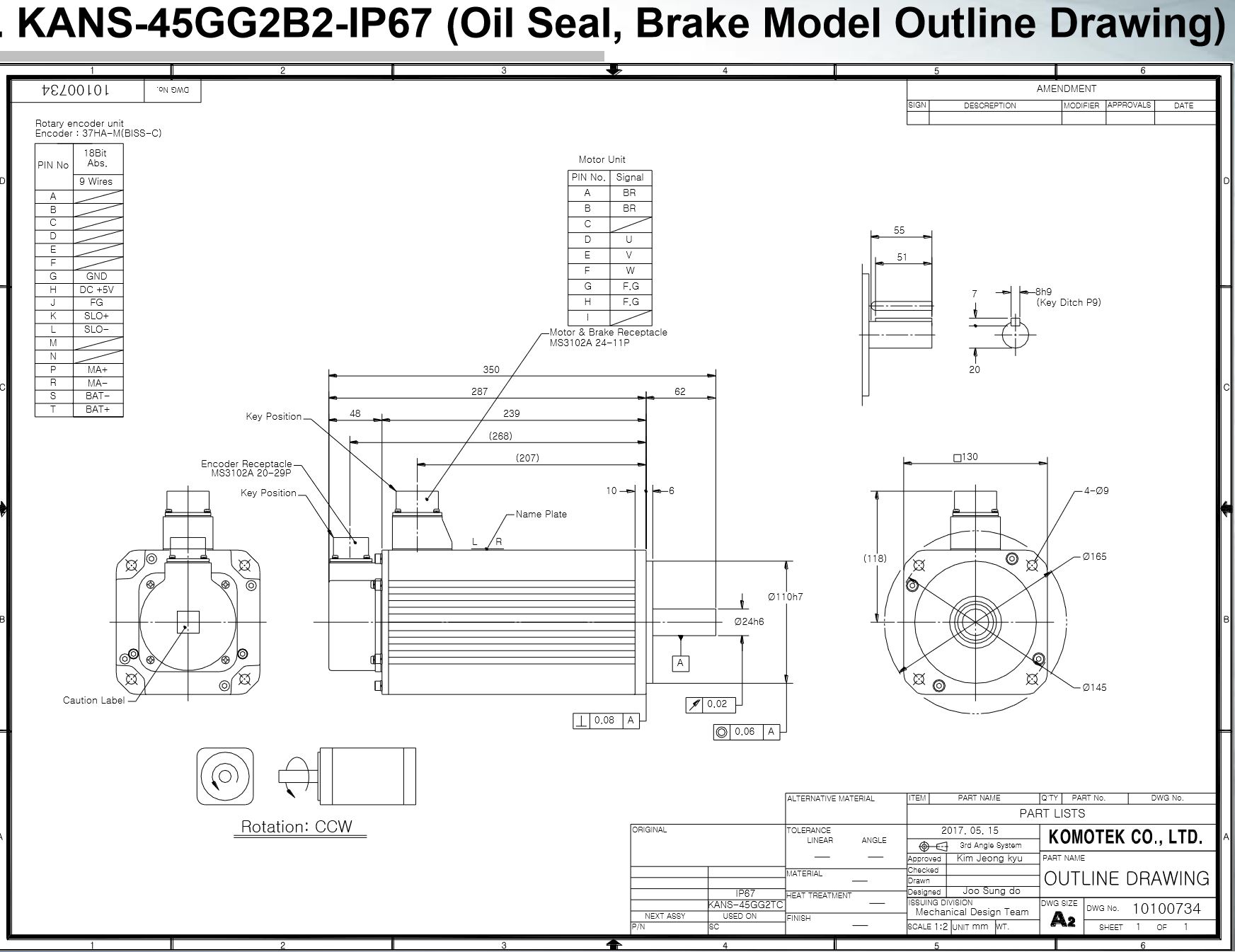

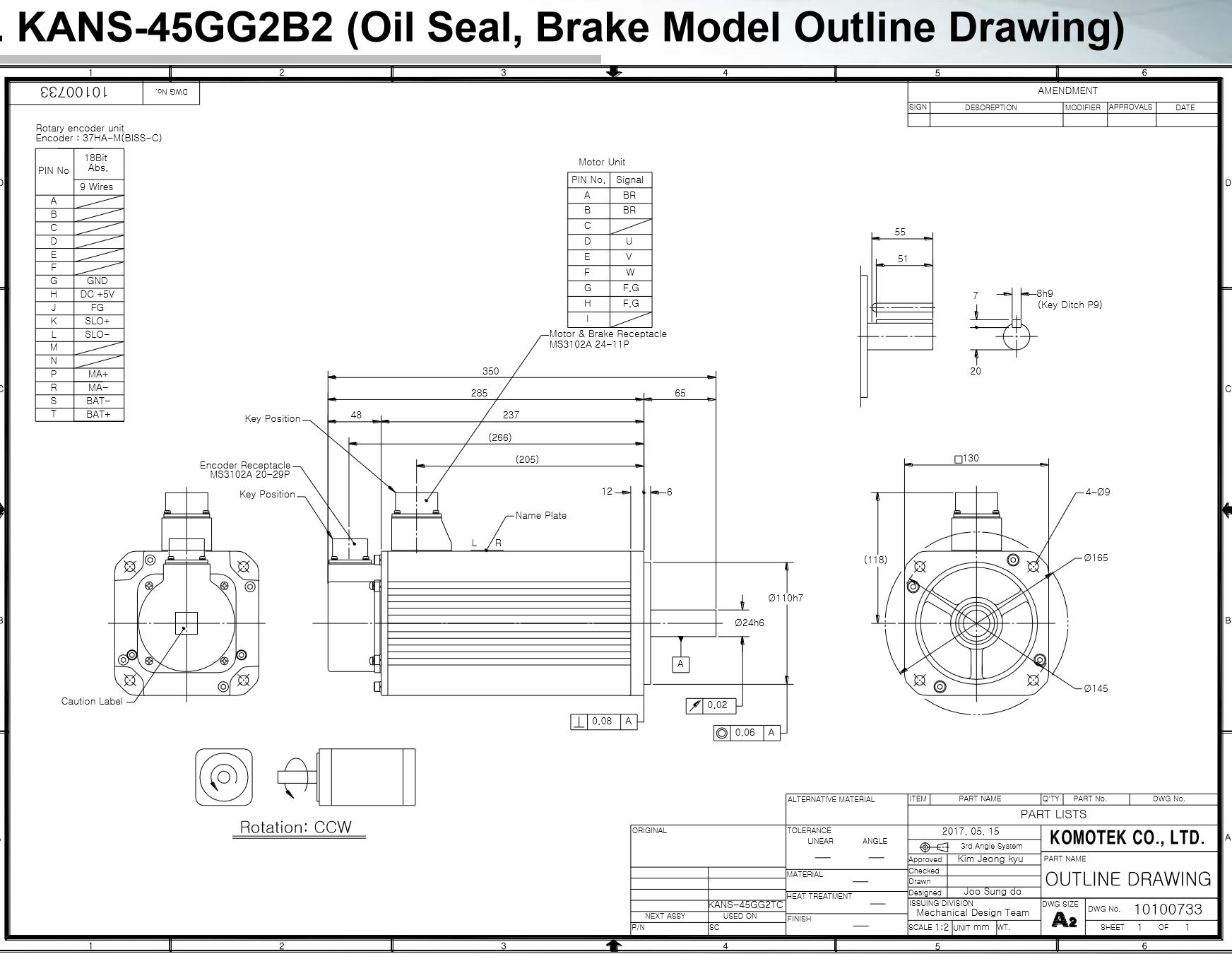

Description Ordering Information Specifications and Drawings

E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KANSSeries can be applied to High frequency positioning equipments, Assembly robots, Welding robots, High speed precision tools..High speed, quick response servomotor
Minimization of cogging torque through magnet shape design.Minimization of torque ripple through core optimum shape design.

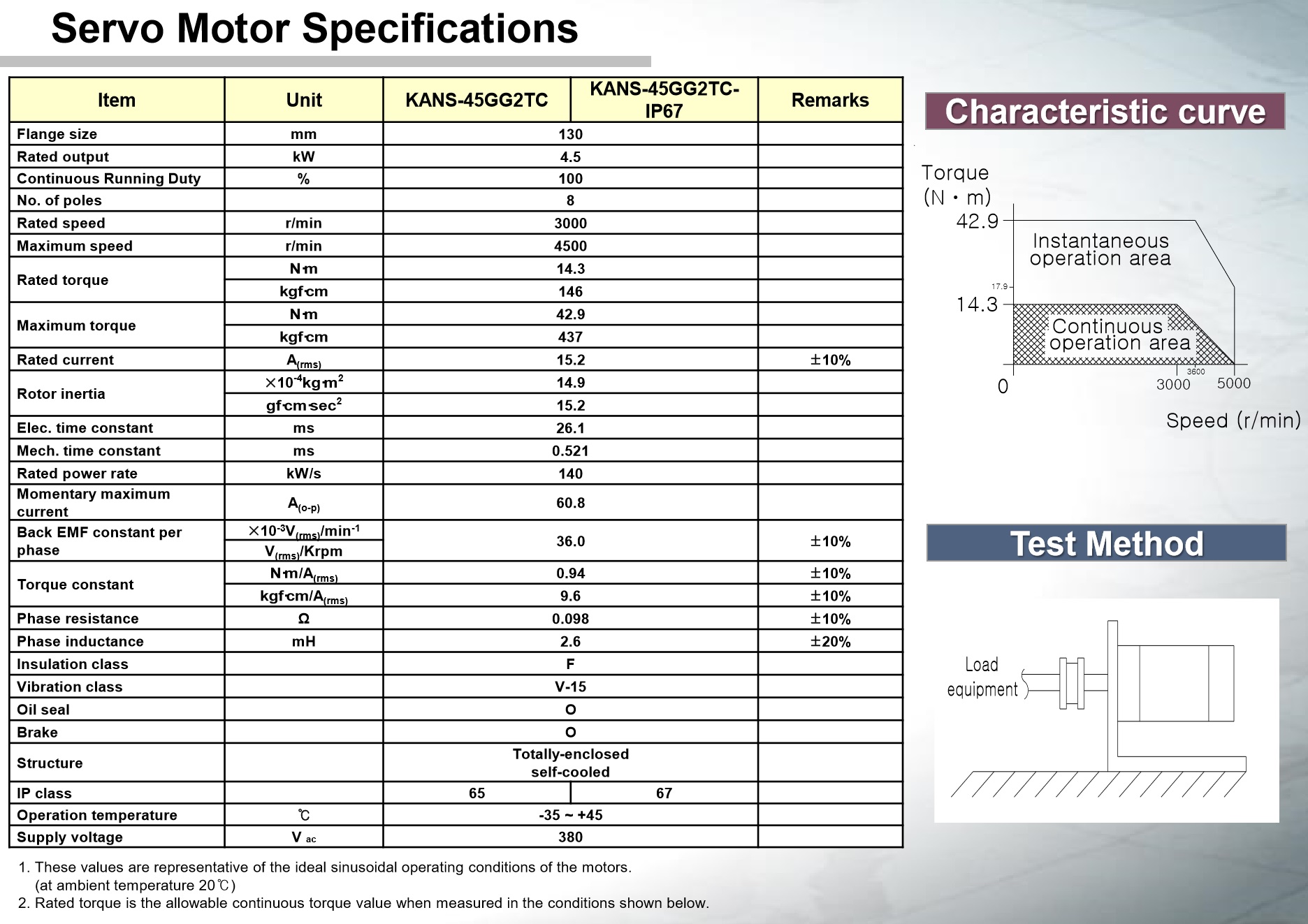

Motor Model:
KANS-45GG2NC-IP67
Motor TypeDC Brushless Servo Motor without Brake
Motor Voltage380VAC
Motor Poles:8
Motor Rated Output:4.5KW
Motor Flange Size130mm
Motor Rated Phase Current15.2A
Motor Peak Phase Current:60.8A
Motor Rated Torque14.3Nm
Motor Maximum Torque:42.9Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:4500RPM
Rotor inertia:13.8 x10-4kg·m2

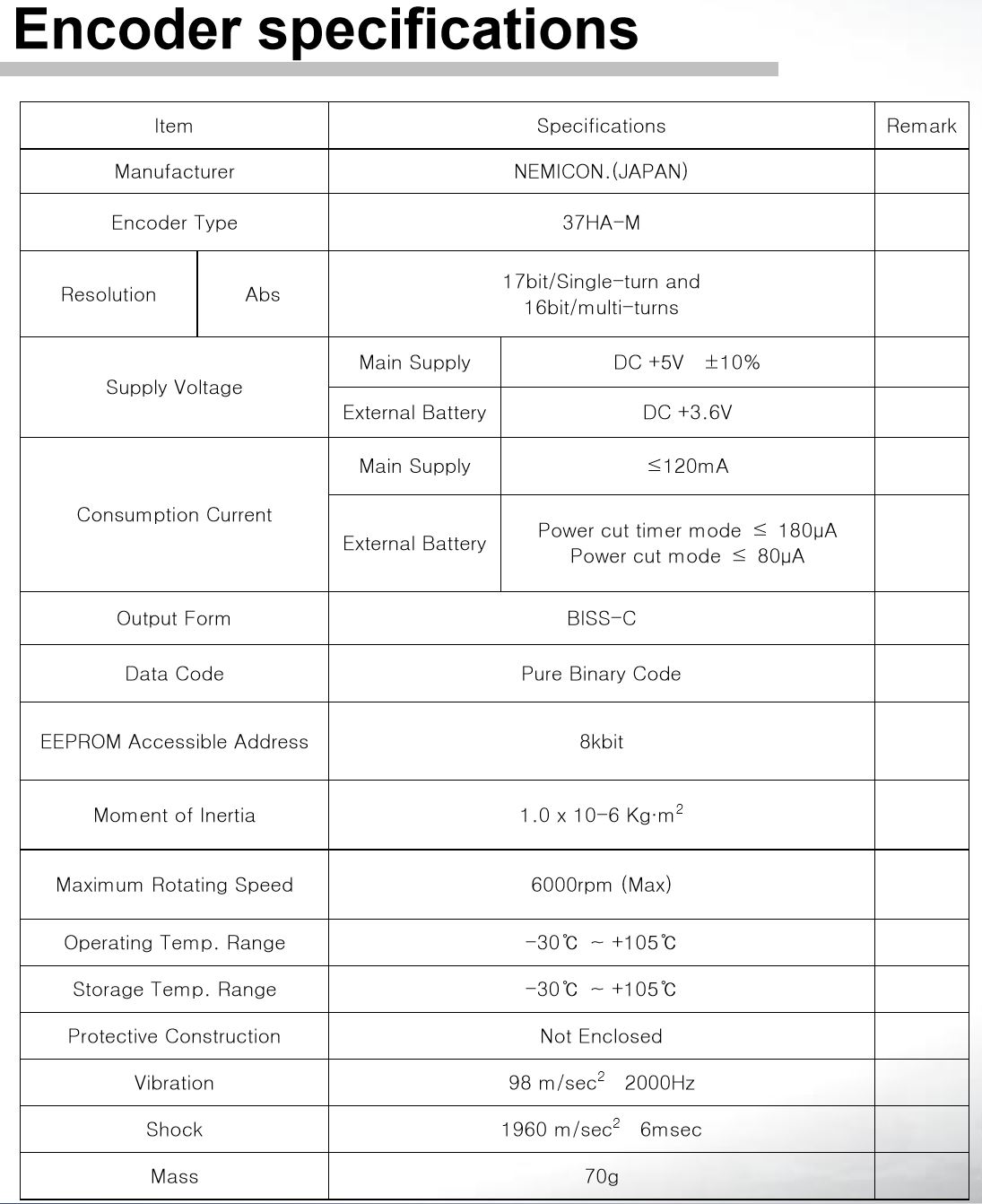

Motor Feedback:17Bits Biss-C Absolute Encoder
Motor Protection level:IP67
Motor Operation Temperature:-35-+45℃


Motor Model:KANZ-KANS-45GG2TC-IP67
Motor TypeDC Brushless Servo Motor with Brake
Motor Voltage380VAC
Motor Poles:8
Motor Rated Output:4.5KW
Motor Flange Size130mm
Motor Rated Phase Current15.2A
Motor Peak Phase Current:60.8A
Motor Rated Torque:14.3Nm
Motor Maximum Torque:42.9Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:4500RPM
Rotor inertia:14.9 x10-4kg·m2
Motor Feedback:
17Bits Biss-C Absolute Encoder
Motor Protection level:IP67
Motor Operation Temperature:-35-+45
