Komotek :50W 220VAC Brushless Motor Without Brake,With resolver,KANZ-A5BR4N2
Price:
(Members Only)
Availability:
Usually Ships in 4 to 6 Weeks
Order #:
KANZ-A5BR4N2
Qty:
Description
Ordering Information

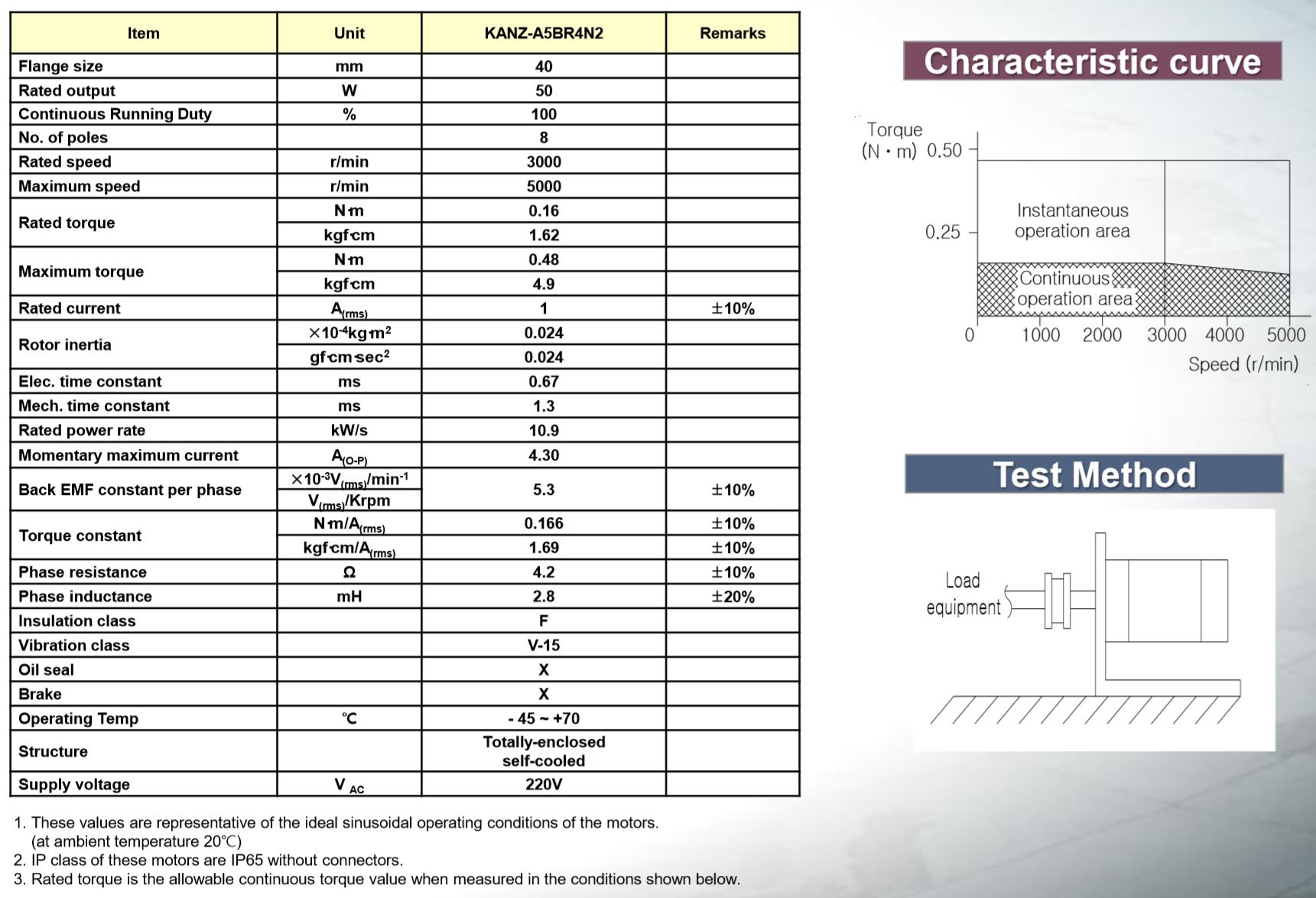

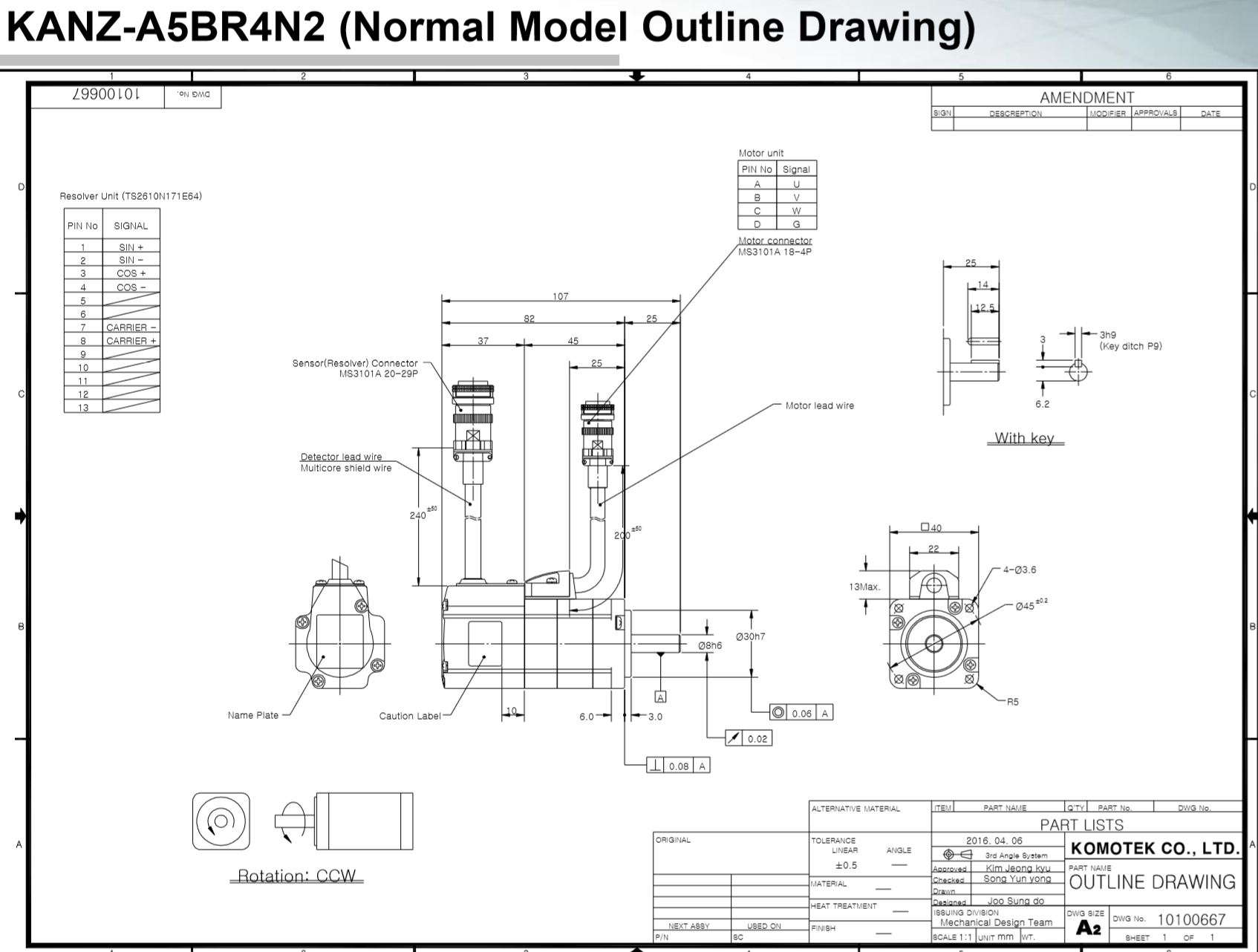

Specifications and Drawings
E-Motionsupply is a professional servo motor supplier. Our low-voltage servo motors are produced in different countries and regions. Their quality and longevity are products that have been verified through long-term use. We accept customized orders to provide our customers with products that better suit their application needs.
KANZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems and semiconductor manufacturing equipments.
Ultra compactness, light servomotor,
Excellent product life cycle with high reliability
Able to
manufacture products that satisfies various specification needs of customers.Main application is
Robots, Semiconductor manufacturing instruments, Chip mounters, Inserters, XY tables.
Motor Model:
KANZ-A5
BR4N2
Motor Type
:
DC Brushless Servo Motor without Brake
Motor Voltage
:
220VAC
Motor Poles:8
Motor Rated Output:50W
Motor Flange Size
:
40mm
Motor Rated Phase Current
:
1A
Motor Peak Phase Current:4.3A
Motor Rated Torque
:
0.16Nm
Motor Maximum Torque:0.0.48Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia:0.024 x10-4kg·m2

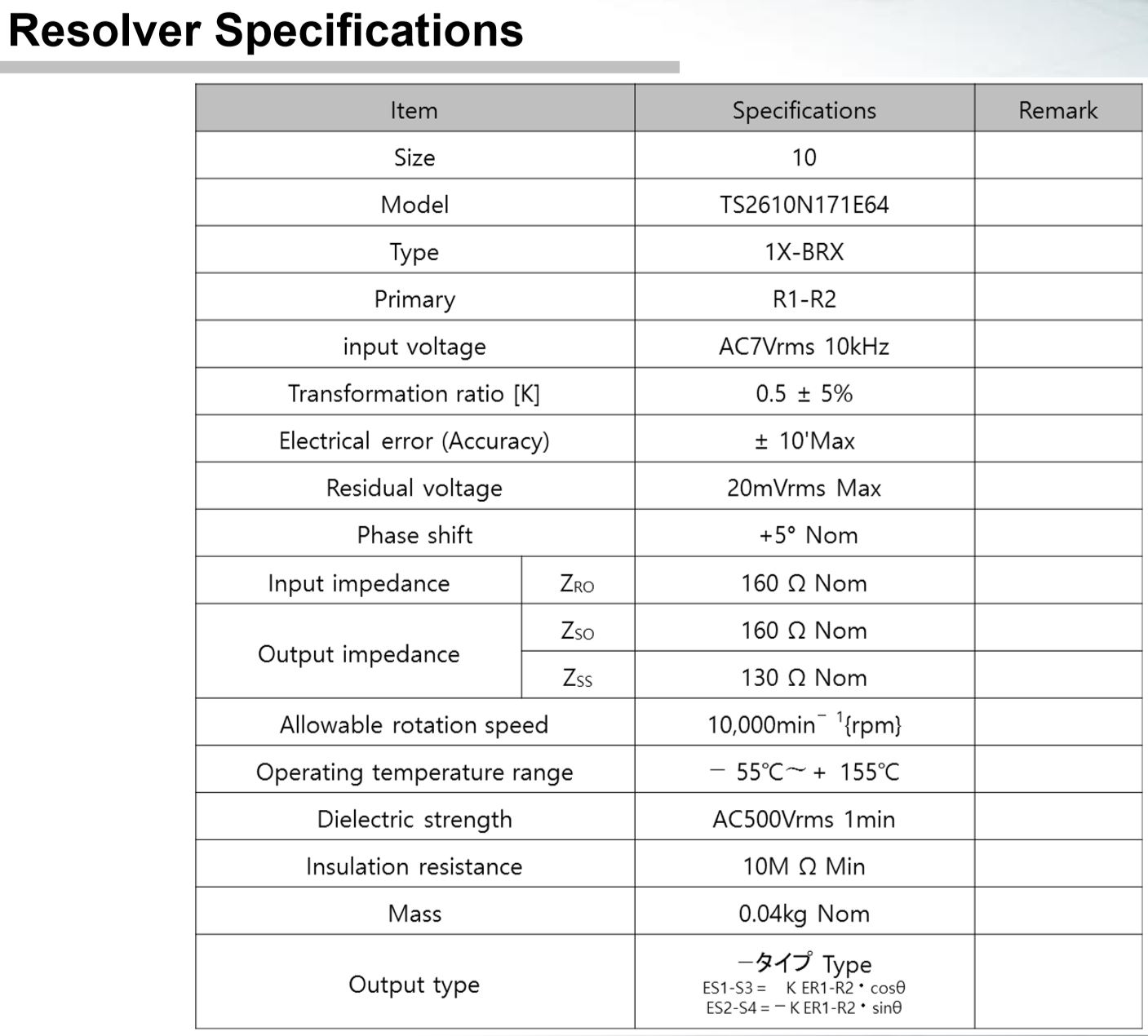

Motor Feedback:Resolver
Motor Model:
KANZ-A5BR4B2
Motor Type
:
DC Brushless Servo Motor with Brake
Motor Voltage
:
220VAC
Motor Poles:8
Motor Rated Output:50W
Motor Flange Size
:
40mm
Motor Rated Phase Current
:
1A
Motor Peak Phase Current:4.3A
Motor Rated Torque
:
0.16Nm
Motor Maximum Torque:0.48Nm
Motor Rated Speed:3000RPM
Motor Maximum Speed:5000RPM
Rotor inertia:0.031 x10-4kg·m2
Motor Feedback:Resolver
