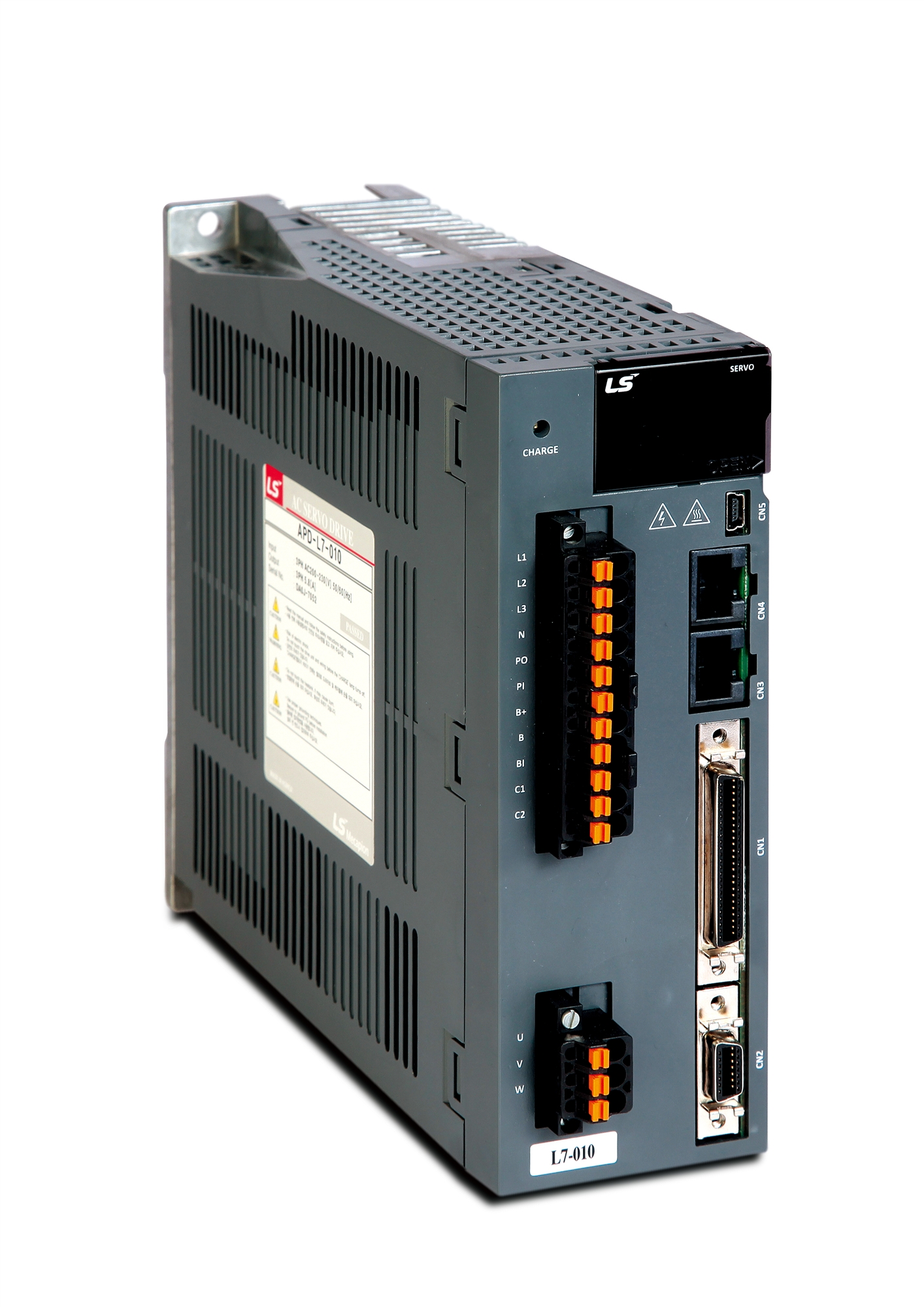

LS Mecapion: L7S Servo Drive (L7SA010)
LS Mecapion: L7S Servo Drive (L7SA010)



Price: (Members Only)


Availability: Usually Ships in 6 to 8 Weeks
Order #: L7SA010


Encoder:


Qty:
Description Ordering Information Specifications and Drawings


LS Mecapion: L7S Servo Drive (L7SA010)

Model No.: L7SA010A, L7SA010B

Specifications:

  • Size: 58x169x198

  • Main power supply: 3Phase AC200 ~ 230[V]

  • Rated current: 6.75[A]

  • Peak current: 20.25[A]

  • Encoder type: Incremental encoder, 19Bit Serial encoder

  • Frequency response: Max 1kHz

  • Weight: 1.5 Kg
