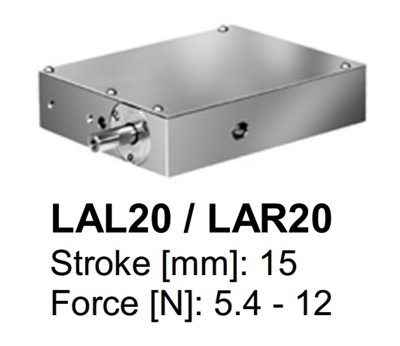

SMAC: Linear Actuators (LAL20-015-65)
SMAC: Linear Actuators (LAL20-015-65)

Alternate View



Price: (Members Only)


Order #: LAL20-015-65


Encoder:


Vacuum:


Qty:
Description Specifications and Drawings


Features:

  • Voltage (DC): 24
  • Dimensions (mm): 65x115x20
  • Stroke (mm): 15
  • Max. Force (N): 12
  • Cont. Force (N): 4.8
  • Force Const. (N/A): 5.8
  • Moving Mass (kg): 0.08
  • Weight (kg): 0.34
