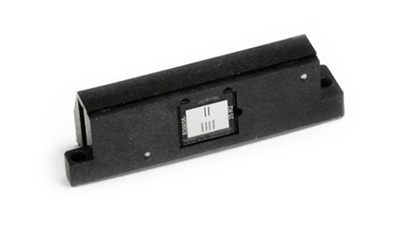

MicroE: Linear Encoder Kit (LDK Series)
MicroE: Linear Encoder Kit (LDK Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: LDK
.

Description Specifications and Drawings


LDK Series

(Non-Contacting Linear Encoder Kit)

Features:

  • Low cost non-contacting linear encoder designed for OEM usage

  • Utilizes reflective optical diffraction technology for superb bi-directional repeatability

  • .520” by 1.814” cross section designed to fit most space restrictive applications

  • Differential, TTL compatible line driver output with optional index

  • Up to 48” ( 1220mm ) travel lengths

  • Enhanced mounting tolerances

  • Single LED light source

The model LDK is a compact non-contacting incremental linear encoder. It is available with three scale options. Mini scale, Micro scale and the Micro scale mounted on a spar for simplifying the scale installation. In addition to the varies scale options the model LDK can also be supplied with varies lengths of PVC jacketed cable or a 12” PARLEX high flex cable.
