MicroE: Miniature Linear Encoder Kit (LDL-A Series)
MicroE: Miniature Linear Encoder Kit (LDL-A Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: LDL-A
.

Description Specifications and Drawings

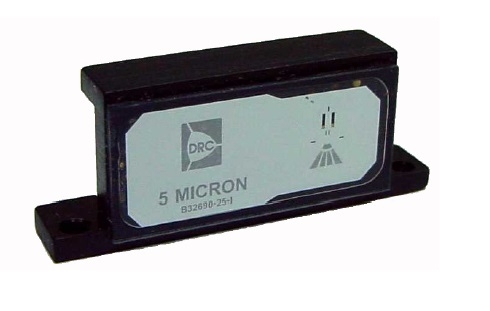

LDL-A Series

(Miniature Non-Contacting Linear Encoder Kit)

Features:

  • Low cost non-contacting linear encoder designed for OEM usage

  • Utilizes reflective optical diffraction technology for superb bi-directional repeatability

  • Designed to fit most space restrictive applications. .486 high by 1.229” long

  • Available in either Metric or English Resolutions down to ( 5.0 Micron, .0001 inch )

  • Single ended TTL compatible square wave with optional index

  • Travel speeds up to 2.5 meters per second ( 100 inches per second )

  • Up to 48” ( 1220mm ) travel lengths

  • Enhanced mounting tolerances

  • Single LED light source

The model LDL-A is a miniature non-contacting high resolution incremental linear encoder. It is available with three scale options. Mini scale, Micro scale and the Micro scale mounted on a spar for simplifying the scale installation. In addition to the varies scale options the model LDL-A can also be supplied with varies lengths of PVC jacketed cable or flat ribbon cable.
