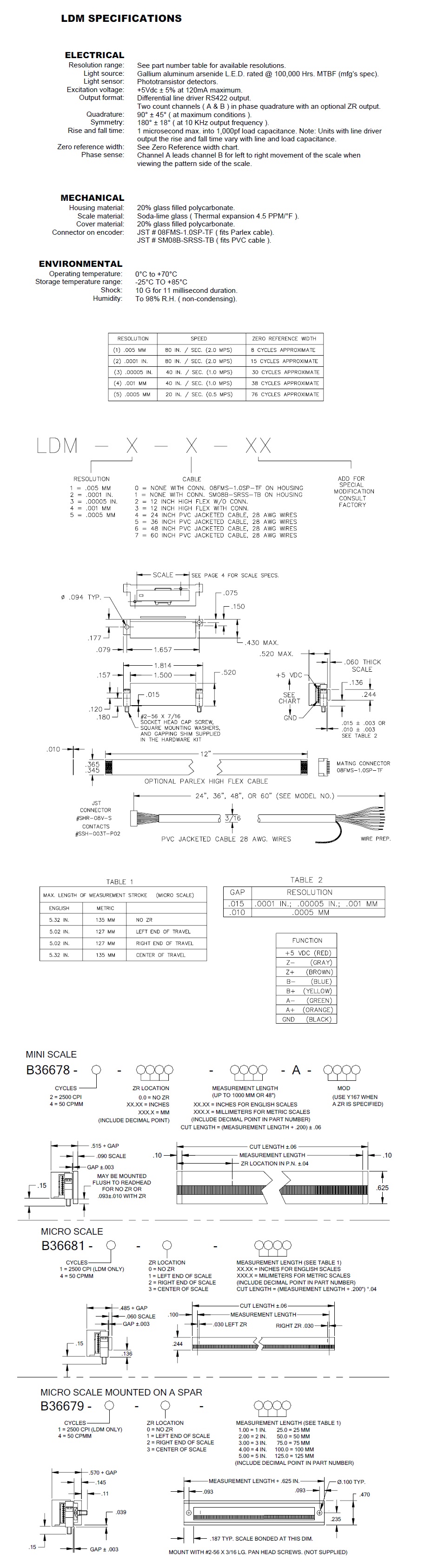

Description Specifications and Drawings


LDM Series

(Non-Contacting High Resolution Linear Encoder Kit)

Features:

  • Low cost non-contacting linear encoder designed for OEM usage

  • Utilizes reflective optical diffraction technology for superb bi-directional repeatability

  • .520” by 1.814” cross section designed to fit most space restrictive applications

  • Available in either Metric or English Resolutions down to ( 1.0 Micron, .00005 inch )

  • Differential, TTL compatible line driver output with optional index

  • Travel speeds up to 2 meters per second ( 80 inches per second )

  • Up to 48” ( 1220mm ) travel lengths

  • Enhanced mounting tolerances

  • Single LED light source

The LDM model is a compact, non-contacting, high resolution, incremental linear encoder. It is available with three scale options: Mini scale, Micro scale and the Micro scale mounted on a spar for simplifying the scale installation. In addition to the various scale options, the LDM model can also be supplied with several lengths of PVC jacketed cable or a 12” PARLEX high flex cable.
