MotiCont: Linear Motor Actuators (LMA-051 Series)
Single-Axis Positioning Systems
The Linear Motor Actuator is used in positioning applications where high speed and high accuracy are required. The actuator may be used in the following industries; Semiconductor, Disk Drive, Automotive, Medical, Industrial, Optical, Test and Manufacturing.
Voice coil motors do not need commutation and using a position sensor, positioning accuracies of less than one micron or 0.00004 inches are achievable.
Each actuator is integrated with a quadrature position sensor, inner limit, outer limit and home switch.
Customized solutions can be provided upon request.
Features:
High Acceleration
High Speed
High Accuracy
Cog Free
High Repeatability
Independent Multiple Coil Operation with Overlapping Trajectories
No Metal-to-Metal Contact, Virtually Maintenance Free
Modular Magnet Tracks
Trapezoidal or Sinusoidal Commutation
Increased throughput, a Function of High Acceleration

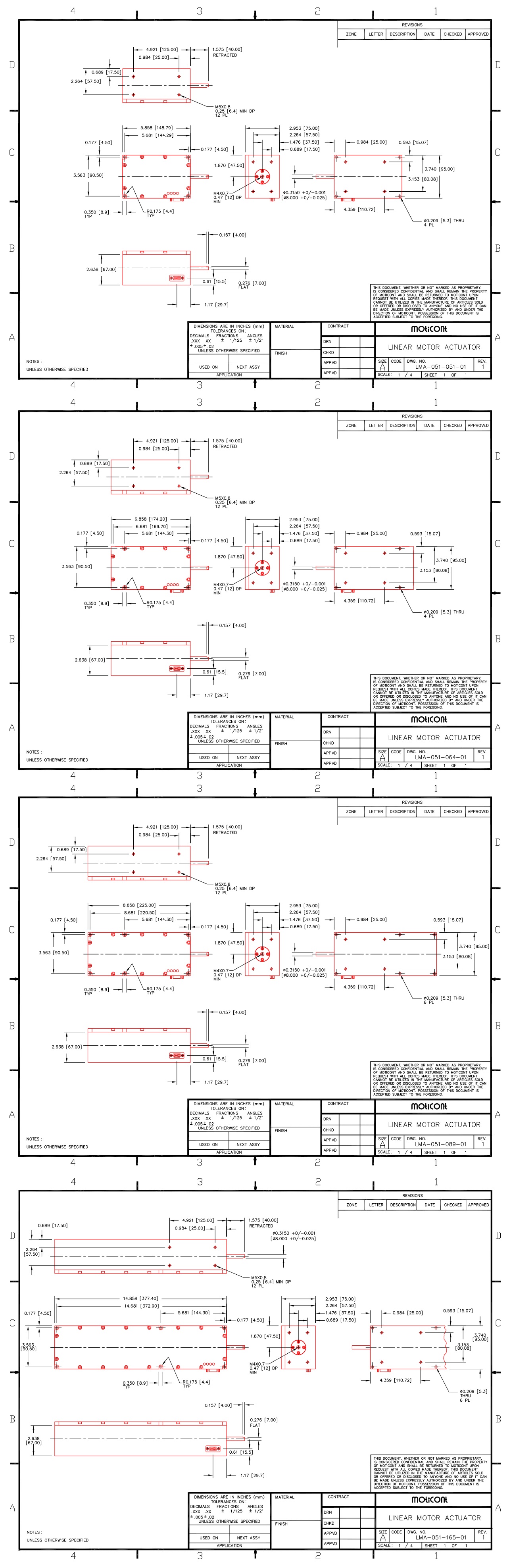

LMA 051-051-01 Specifications:
Range of Motion: 0.7” (17.8 mm) Max
Continuous Force: 6.0 lb (26.7 N)
Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
Optional Return Spring
Quadrature Optical Encoder with Optional Differential Outputs
Built-in Home Switch
LMA 051-064-01 Specifications:
Range of Motion: 1.2” (30.5 mm) Max
Continuous Force: 6.4 lb (28.4 N)
Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
LMA 051-089-01 Specifications:
Range of Motion: 2.2” (55.9 mm) Max
LMA 051-165-01 Specifications:
Range of Motion: 5.2” (132.1 mm) Max
Continuous Force: 3.2 lb (14.2 N)
Intermittent Force: 10.1 lbs (44.9 N) at 10% duty cycle
