Misumi: Single Axis Actuators (LS12 Series) Medium Accuracy
Misumi: Single Axis Actuators (LS12 Series) Medium Accuracy

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: LS12


Model No.:

.

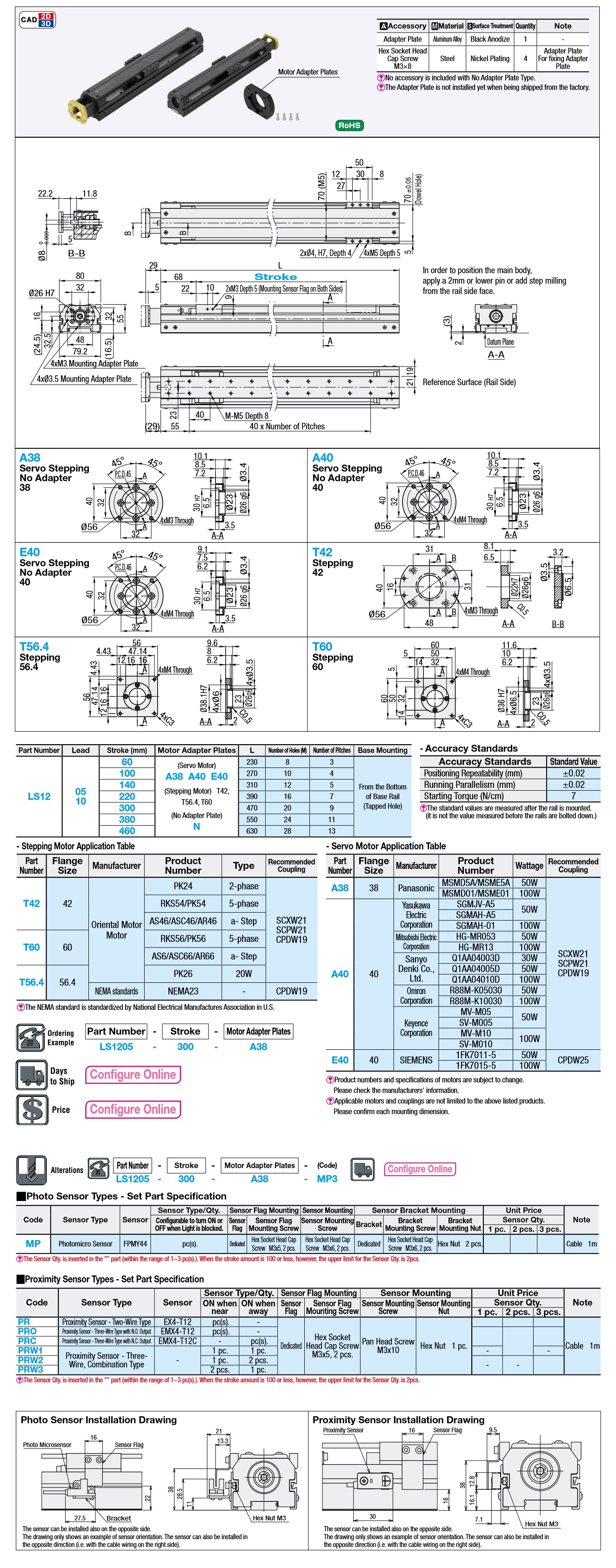

Description Specifications and Drawings


Misumi: [Medium Accuracy] Single Axis Actuators (LS12 Series) - Driven by Ball Screw

By adopting this type of Single Axis Actuator, Medium Accuracy Transferring/Positioning can be achieved at low costs.

Specifications:

  • Main Body, Peripheral Components

  • Precision: Standard Grade

  • Table: Long 1 pc.

  • Lead(mm): 5～10

  • Motor Mounting Orientation: Straight

  • Cover: Included

  • Grease: Standard

  • With or w/o Motors: Stepper Motor

  • With or w/o Lubricant Unit: Not Provided

  • Ball Screw Shaft Dia.(φ): 12

  • Table Length L1(mm): 50

  • Table Width W1(mm): 80

  • Amplifier Voltage: Not Provided


Model No.: LS1205-[60,100,140,220,300,380,460]-A[38,40], LS1205-[60,100,140,220,300,380,460]-E40, LS1205-[60,100,140,220,300,380,460]-N, LS1205-[60,100,140,220,300,380,460]-T[42,56.4,60], LS1210-[60,100,140,220,300,380,460]-A[38,40], LS1210-[60,100,140,220,300,380,460]-E40, LS1210-[60,100,140,220,300,380,460]-N, LS1210-[60,100,140,220,300,380,460]-T[42,56.4,60]
