Moons: Linear Stepper Motors (LX11HS Series) A stepper motor is an Open-loop control element which converts electrical pulse signals into angular or linear displacements, By controlling the sequence, frequency and quantity of electrical pulses working on the motor coils, we can achieve the control for the velocity, rotation and rotation angle of a stepper motor. Matching with linear motion executive module or gear box device, it will satisfying more complicated and precise linear motion controlling demands. Due to our professional technology and experience in designing, developing, manufacturing, and marketing of stepper motors, MOONS' supplies abundant stepper motor products series, with different phases and step angle for your selection. Each of the series has its unique advantages and characteristics, in order to meets the demands of different customers and different applications. MOONS' Step Motor Advantage Included are a number of improvements in performance and value: Many refinements that increase torque by an average of 20% Complete range of sizes: 8, 11, 14, 16, 17, 23, 24, 34, 42 Size 17 and larger 2 phase motors are UL recognized 0.9 degree 2 phase motors, and 3 phase motors for extra smooth, quiet, performance PowerPlus technology: for maximum efficiency and performance at all speeds Lower inertia rotors provide faster acceleration High voltage insulation for use with high voltage, high performance drives Low loss stators have better high speed performance Standard windings with high fill for more torque

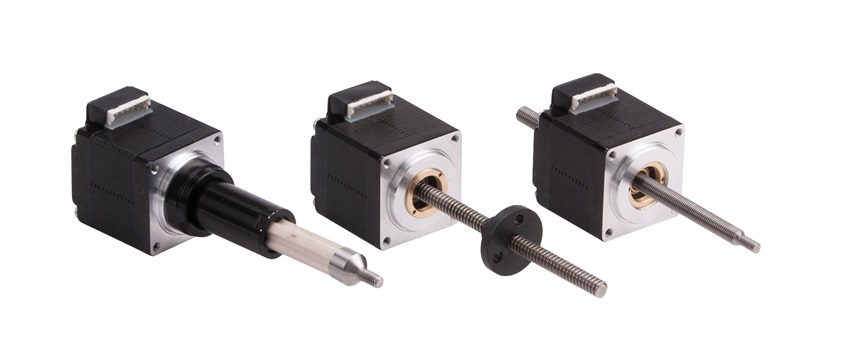

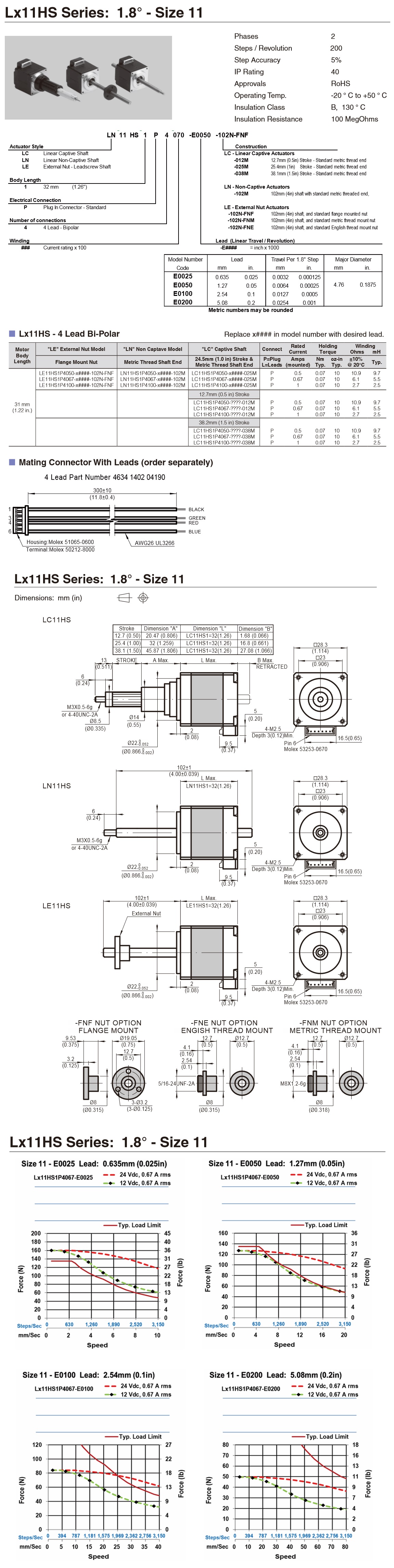

The basic stepper motor creates rotary motion, linear actuator convert this rotation motion into a linear motion by mechanical mean. This approach greatly simplifies the design of many application by allowing a “drop in motor” capable of precise linear motion without the need to install external mechanical linkages, matching the requirements from customers. A linear hybrid stepper motor operates on the same electromagnetic principles as a rotary hybrid stepping motor. Through unique patented technology combining the thread engagement of the lead screw and the rotor bearings, rotational motion is converted into a linear travel. MOONS’ linear hybrid stepper motor adopts design of high efficiency transmission threads and unique bearing technology. The result is an extremely improved product with higher transmission efficiencies, reliability, bearing capacity and life expectancies compared with similar products in the market. MOONS’ linear hybrid stepper motors are a great choice when design specifications call for high performance, precise positioning, rapid motion and long life expectancy in condition that the design space is limited. Phases: 2 Steps / Revolution: 200 Step Accuracy: ±5% IP Rating: 40 Approvals: RoHS Operating Temp: -20°C to +50°C Insulation Class: B, 130°C Insulation Resistance: 100 MegOhms
|
|
|
 |
|
 |
|
