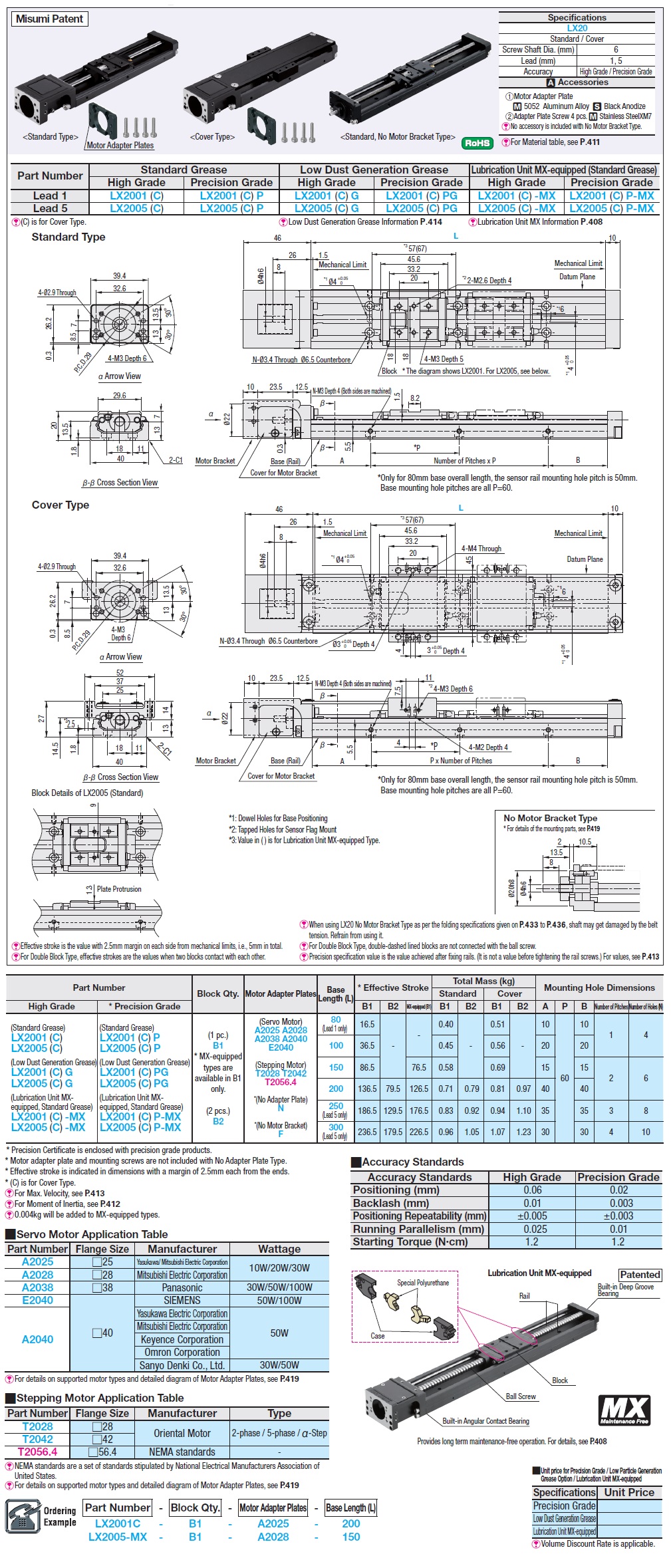

Description Specifications and Drawings

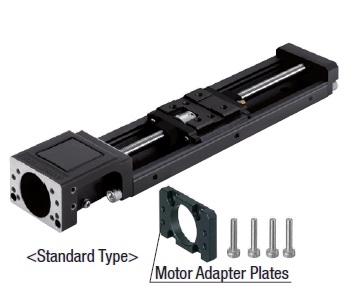

Misumi: Single Axis Actuators - LX20 Standard / Cover Type

Specifications:

  • Main Body, Peripheral Components: Main Body

  • Nominal (Height): 20

  • Precision: High Grade / Precision Grade

  • Table: Long 1 pc. / Long 2 pcs.

  • Lead(mm):1~5

  • Motor Mounting Orientation: Straight

  • Cover: Not Provided / Included

  • Grease: Standard / Low Particle Generation

  • With or w/o Motors: Not Provided (Installed by customers)

  • With or w/o Lubricant Unit: Not Provided

  • Ball Screw Shaft Dia.(φ): 6

  • Table Length L1(mm): 33.2

  • Table Width W1(mm): 29.6~52

Model No.: LX2001-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001-B1-E2040-[80,100,150,200], LX2001-B1-F-[80,100,150,200], LX2001-B1-N-[80,100,150,200], LX2001-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001-B2-A[2025,2028,2038,2040]-200, LX2001-B2-E2040-200, LX2001-B2-F-200, LX2001-B2-N-200, LX2001-B2-T[2028,2042,2056.4]-200, LX2001-MX-B1-A[2025,2028,2038,2040]-[150,200], LX2001-MX-B1-E2040-[150,200], LX2001-MX-B1-F-[150,200], LX2001-MX-B1-N-[150,200], LX2001-MX-B1-T[2028,2042,2056.4]-[150,200], LX2001C-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001C-B1-E2040-[80,100,150,200], LX2001C-B1-F-[80,100,150,200], LX2001C-B1-N-[80,100,150,200], LX2001C-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001C-B2-A[2025,2028,2038,2040]-200, LX2001C-B2-E2040-200, LX2001C-B2-F-200, LX2001C-B2-N-200, LX2001C-B2-T[2028,2042,2056.4]-200, LX2001C-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300], LX2001C-MX-B1-E2040-[150,200,250,300], LX2001C-MX-B1-F-[150,200], LX2001C-MX-B1-N-[150,200], LX2001C-MX-B1-T[2028,2042,2056.4]-[150,200,250,300], LX2001CG-B1-A[2025,2028,2038,2040]-[80,100,150,200]

LX2001CG-B1-F-[80,100,150,200], LX2001CG-B1-N-[80,100,150,200,250,300], LX2001CG-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001CG-B2-A[2025,2028,2038,2040]-200, LX2001CG-B2-F-[250,300], LX2001CG-B2-N-[250,300], LX2001CG-B2-T[2028,2042,2056.4]-200, LX2001CP-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001CP-B1-E2040-[80,100,150,200], LX2001CP-B1-F-[80,100,150,200], LX2001CP-B1-N-[80,100,150,200], LX2001CP-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001CP-B2-A[2025,2028,2038,2040]-200, LX2001CP-B2-E2040-200, LX2001CP-B2-F-200, LX2001CP-B2-N-200, LX2001CP-B2-T[2028,2042,2056.4]-200, LX2001CP-MX-B1-A[2025,2028,2038,2040]-[150,200], LX2001CP-MX-B1-E2040-[150,200], LX2001CP-MX-B1-F-[150,200], LX2001CP-MX-B1-N-[150,200], LX2001CP-MX-B1-T[2028,2042,2056.4]-[150,200], LX2001CPG-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001CPG-B1-E2040-[80,100,150,200], LX2001CPG-B1-F-[80,100,150,200], LX2001CPG-B1-N-[80,100,150,200], LX2001CPG-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001CPG-B2-A[2025,2028,2038,2040]-200, LX2001CPG-B2-E2040-200, LX2001CPG-B2-F-200, LX2001CPG-B2-N-200, LX2001CPG-B2-T[2028,2042,2056.4]-200, LX2001G-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001G-B1-F-[80,100,150,200]

LX2001G-B1-N-[80,100,150,200], LX2001G-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001G-B2-A[2025,2028,2038,2040]-200, LX2001G-B2-F-200, LX2001G-B2-N-200, LX2001G-B2-T[2028,2042,2056.4]-200, LX2001P-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001P-B1-E2040-[80,100,150,200], LX2001P-B1-F-[80,100,150,200], LX2001P-B1-N-[80,100,150,200], LX2001P-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001P-B2-A[2025,2028,2038,2040]-200, LX2001P-B2-F-200, LX2001P-B2-N-200, LX2001P-B2-T[2028,2042,2056.4]-200, LX2001P-MX-B1-A[2025,2028,2038,2040]-[150,200], LX2001P-MX-B1-E2040-[150,200], LX2001P-MX-B1-F-[150,200], LX2001P-MX-B1-N-[150,200], LX2001P-MX-B1-T[2028,2042,2056.4]-[150,200], LX2001PG-B1-A[2025,2028,2038,2040]-[80,100,150,200], LX2001PG-B1-E2040-[80,100,150,200], LX2001PG-B1-F-[80,100,150,200], LX2001PG-B1-N-[80,100,150,200], LX2001PG-B1-T[2028,2042,2056.4]-[80,100,150,200], LX2001PG-B2-A[2025,2028,2038,2040]-200, LX2001PG-B2-E2040-200, LX2001PG-B2-F-200, LX2001PG-B2-N-200, LX2001PG-B2-T[2028,2042,2056.4]-200, LX2005-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005-B1-E2040-[100,150,200,250,300], LX2005-B1-F-[100,150,200,250,300], LX2005-B1-N-[100,150,200,250,300], LX2005-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005-B2-F-[200,250,300], LX2005-B2-N-[200,250,300], LX2005-B2-T[2028,2042,2056.4]-[200,250,300], LX2005-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300], LX2005-MX-B1-E2040-[150,200,250,300], LX2005-MX-B1-F-[150,200,250,300]

LX2005-MX-B1-N-[150,200,250,300], LX2005-MX-B1-T[2028,2042,2056.4]-[150,200,250,300], LX2005C-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005C-B1-F-[100,150,200,250,300], LX2005C-B1-N-[100,150,200,250,300], LX2005C-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005C-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005C-B2-F-[200,250,300], LX2005C-B2-N-[200,250,300], LX2005C-B2-T[2028,2042,2056.4]-[200,250,300], LX2005C-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300], LX2005C-MX-B1-E2040-[150,200,250,300], LX2005C-MX-B1-F-[150,200,250,300], LX2005C-MX-B1-N-[150,200,250,300], LX2005C-MX-B1-T[2028,2042,2056.4]-[150,200,250,300], LX2005CG-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005CG-B1-F-[100,150,200,250,300], LX2005CG-B1-N-[100,150,190,200,220,230,240,250,280,290,300], LX2005CG-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005CG-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005CG-B2-F-[200,250,300], LX2005CG-B2-N-[200,250,300], LX2005CG-B2-T[2028,2042,2056.4]-[200,250,300], LX2005CP-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005CP-B1-E2040-[100,150,200,250,300], LX2005CP-B1-F-[100,150,200,250,300], LX2005CP-B1-N-[100,150,200,250,300], LX2005CP-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005CP-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005CP-B2-E2040-[200,250,300], LX2005CP-B2-F-[200,250,300], LX2005CP-B2-N-[200,250,300], LX2005CP-B2-T[2028,2042,2056.4]-[200,250,300], LX2005CP-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300], LX2005CP-MX-B1-E2040-[150,200,250,300], LX2005CP-MX-B1-F-[150,200,250,300], LX2005CP-MX-B1-N-[150,200,250,300], LX2005CP-MX-B1-T[2028,2042,2056.4]-[150,200,250,300], LX2005CPG-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005CPG-B1-E2040-[100,150,200,250,300], LX2005CPG-B1-F-[100,150,200,250,300], LX2005CPG-B1-N-[100,150,200,250,300], LX2005CPG-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005CPG-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005CPG-B2-E2040-[200,250,300], LX2005CPG-B2-F-[200,250,300], LX2005CPG-B2-N-[200,250,300]

LX2005CPG-B2-T[2028,2042,2056.4]-[200,250,300], LX2005G-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005G-B1-F-[100,150,170,180,190,200,250,300], LX2005G-B1-N-[100,150,170,180,190,200,250,300], LX2005G-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005G-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005G-B2-F-[200,250,300], LX2005G-B2-N-[200,250,300], LX2005G-B2-T[2028,2042,2056.4]-[200,250,300], LX2005P-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005P-B1-E2040-[100,150,200,250,300], LX2005P-B1-F-[100,150,200,250,300], LX2005P-B1-N-[100,150,200,250,300], LX2005P-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005P-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005P-B2-E2040-[200,250,300], LX2005P-B2-F-[200,250,300], LX2005P-B2-N-[200,250,300], LX2005P-B2-T[2028,2042,2056.4]-[200,250,300], LX2005P-MX-B1-A[2025,2028,2038,2040]-[150,200,250,300], LX2005P-MX-B1-E2040-[150,200,250,300], LX2005P-MX-B1-F-[150,200,250,300], LX2005P-MX-B1-N-[150,200,250,300], LX2005P-MX-B1-T[2028,2042,2056.4]-[150,200,250,300], LX2005PG-B1-A[2025,2028,2038,2040]-[100,150,200,250,300], LX2005PG-B1-E2040-[100,150,200,250,300], LX2005PG-B1-F-[100,150,200,250,300], LX2005PG-B1-N-[100,150,200,250,300], LX2005PG-B1-T[2028,2042,2056.4]-[100,150,200,250,300], LX2005PG-B2-A[2025,2028,2038,2040]-[200,250,300], LX2005PG-B2-E2040-[200,250,300], LX2005PG-B2-F-[200,250,300], LX2005PG-B2-N-[200,250,300]
