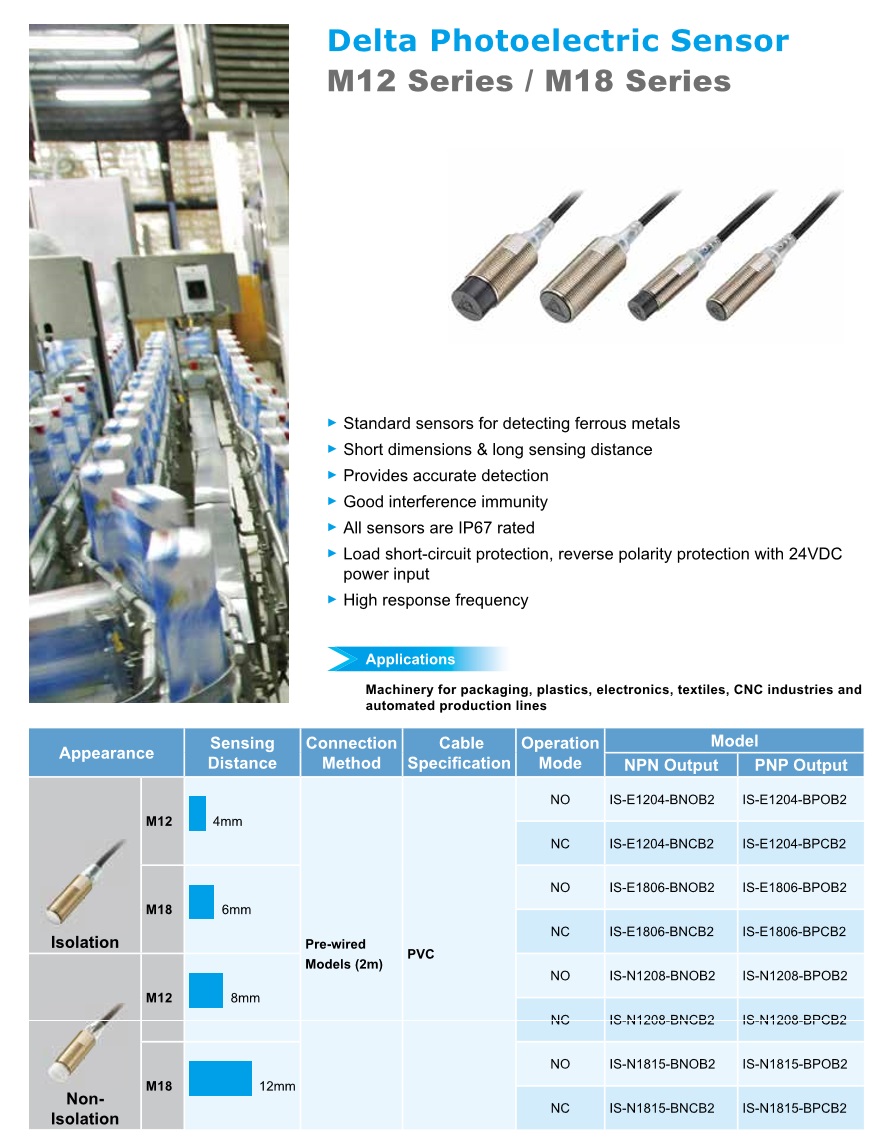

Delta: Smart Sensor (M12 and M18 Series) The Delta Smart Sensor features a slim design with a metallic exterior, and it can be applied to a wide range of applications, such as food and beverages, packaging, pharmacy, electronic component equipment, rubber and plastics, warehouses, machine tools industries, and other industrial automation production lines. Users can select the best models according to specific environments and detection distances.
All models are highly chemical resistant and IP67 rated. Inductive Proximity Sensor The inductive sensors follow the standard M12 and M18 industry design and offer a wider detection range with the same dimensions and easier and faster installation methods. Detection range：2 ~ 12mm Wider detection range All Sensors are IP67 rated High chemical resistance in all models with tolerance to Acetone, Xylene, Gas, Diesel, Alcohol CE certification
Sensing Distance: 2 mm ± 10%, 4 mm ± 10%, 5 mm ± 10%, 8 mm ± 10%,12 mm ± 10% Differential Travel: 15% max. of sensing distance Detectable Object: Ferrous metal (The sensing distance decreases with non-ferrous metal) Power Supply Voltage (Operating Voltage Range): 10 to 30 VDC, ripple (p-p): 10% max. Current Consumption: 15 mA max. Output: Load Current: 200 mA max. Residual Voltage: 2 V max. (Load current: 200 mA, Cable length: 2 m) Indicators: Operation indicator (red) Operation Mode (with Sensing Object Approaching): NPN: NO / NC; PNP: NO / NC Ambient Temperature Range:Operating: - 25 ~ + 70 ºC / Storage: - 40 to 85 ºC (with no icing or condensation) Connection Method: Pre-wired Models (Standard cable length: 2 m) and M12 Connector Models
Model No.: IS-E1204-BNCB2, IS-E1204-BNOB2, IS-E1204-BPCB2, IS-E1204-BPOB2, IS-E1806-BNCB2, IS-E1806-BNOB2, IS-E1806-BPCB2, IS-E1806-BPOB2, IS-N1208-BNCB2, IS-N1208-BNOB2, IS-N1208-BPCB2, IS-N1208-BPOB2, IS-N1815-BNCB2, IS-N1815-BNOB2, IS-N1815-BPCB2, IS-N1815-BPOB2
|
|
|
 |
|
 |
|
