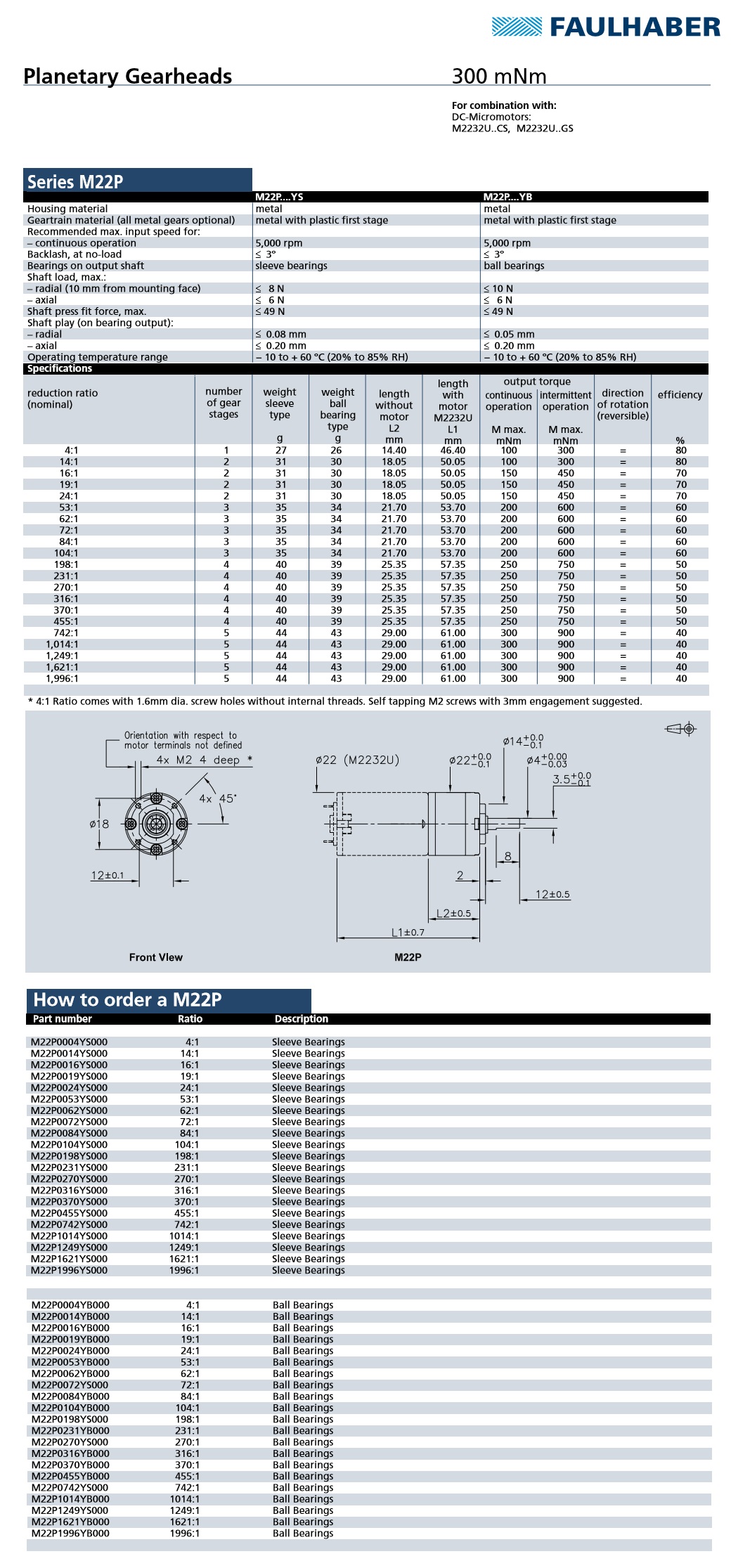

Faulhaber: Gearhead (M22P Series)
FAULHABER develops high performance modular gearheads to complement each of its motor technologies.
From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.
Diameter (mm): 22
Type: Planetary
Reduction Ratios: 4:1...621:1
Shaft Diameter (mm): 4
Torque Continuous (mNm): 300
Torque Intermittent (mNm): 900
Model No.: M22P0004YB000, M22P0004YS000, M22P0014YB000, M22P0014YS000, M22P0016YB000, M22P0016YS000, M22P0019YB000, M22P0019YS000, M22P0024YB000, M22P0024YS000, M22P0053YB000, M22P0053YS000, M22P0062YB000, M22P0062YS000, M22P0072YS000, M22P0072YS000, M22P0084YB000, M22P0084YS000, M22P0104YB000, M22P0104YS000, M22P0198YS000, M22P0198YS000, M22P0231YB000, M22P0231YS000, M22P0270YS000, M22P0270YS000, M22P0316YB000, M22P0316YS000, M22P0370YB000, M22P0370YS000, M22P0455YB000, M22P0455YS000, M22P0742YS000, M22P0742YS000, M22P1014YB000, M22P1014YS000, M22P1249YS000, M22P1249YS000, M22P1621YB000, M22P1621YS000, M22P1996YB000, M22P1996YS000
