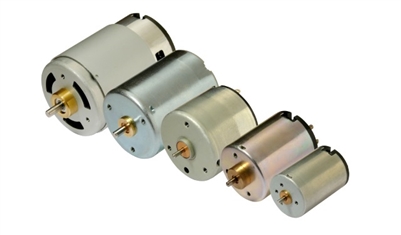

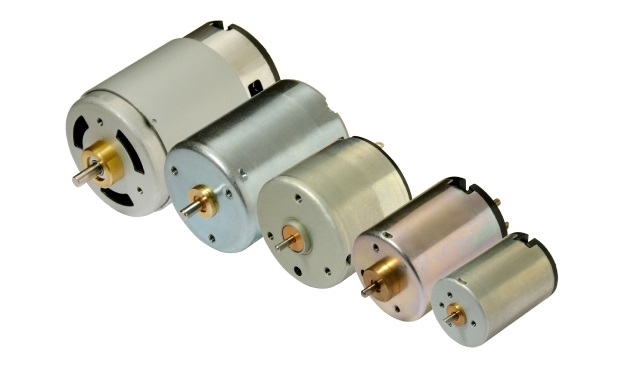

Faulhaber: Micro-Drives DC Motors (M4870U Series)

Micro-Drives DC motors were designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are vital. The micro DC motors are compact, lightweight and powerful.

Micro-Drives DC motors offer strong efficiencies and a high peak load through use of premium ferrite materials and optimized magnet systems. The DC motors are rated in power from 0.34 W to 100 W with mounting options for encoders and for planetary and spur gearheads with torque up to 10 Nm.

DC Micromotors feature:

  • High precision performance

  • Low brush contact resistance

  • Less power required

  • Graphite commutation achieves extended service life

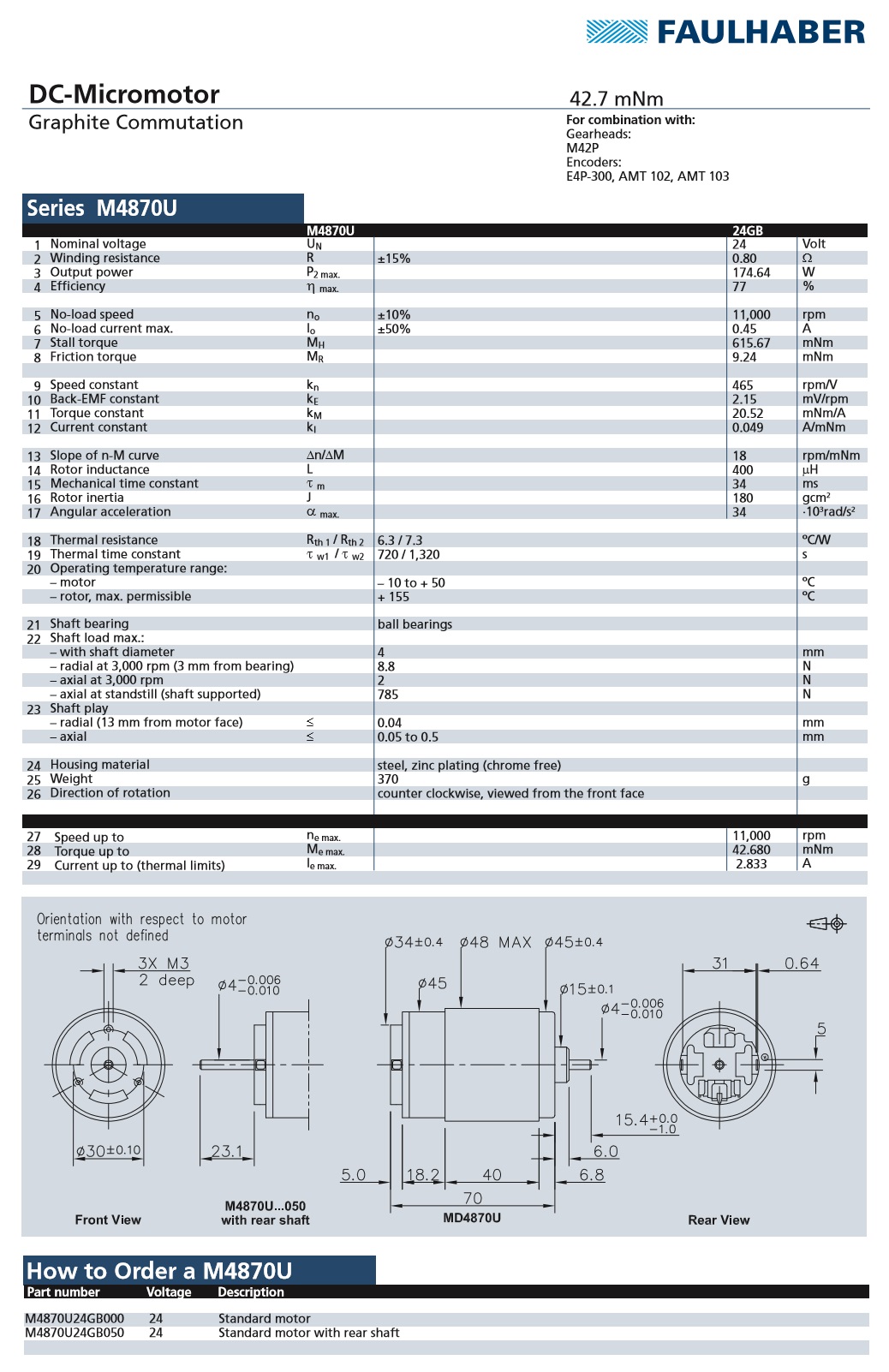

Specifications:

  • Diameter (mm): 48

  • Length (mm): 70

  • Shaft Diameter (mm): 4

  • Nominal Voltage (V): 24

  • No-Load Speed (rpm):11,000

  • Rated Torque (mNm): 42.68

  • Output Power (Watt): 174.64

Model No.: M4870U24GB000, M4870U24GB050
