Panasonic: AC Servo Motors (MAMA A4 Series)
Panasonic: AC Servo Motors (MAMA A4 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MAMA


Model No.:

.
Description Specifications and Drawings

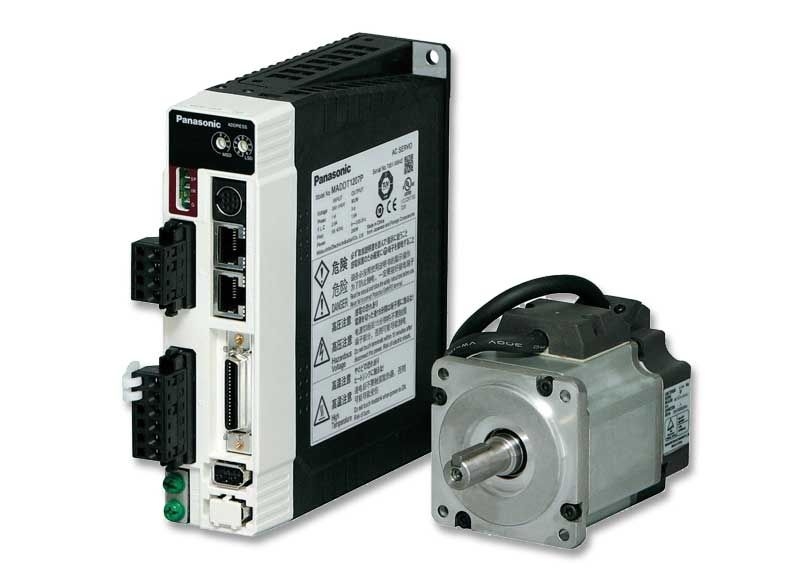

Panasonic: AC Servo Motors (MAMA A4 Series)

MAMA-MINAS A4 Series (200V)


Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Power supply Capacity (kVA): 0.4-1.3

  • Rated Output (W): 100-750

  • Rated Torque (N.m): 0.19-1.43

  • Momentary Max. Peak Torque (N.m): 0.95-7.16

  • Rated Current (Arms): 0.9-5.1

  • Max. Current (Ao-p): 6.3-36.0

  • Rated Rotational Speed (r/min): 5000

  • Max. Rotational Speed (r/min): 6000

  • Static Friction Torque (N.m): 0.29-2.45

  • Engaging Time (ms): 35-70

  • Releasing Time (ms): 10-20

  • Exciting Current (DC) (A): 0.25-0.35

  • Releasing Voltage: DC2V or more

  • Exciting Voltage: DC 24 V ± 5%

  • Mass without Break (kg): 0.65-3.4


Model No.: MAMA012P1, MAMA012S1, MAMA022P1, MAMA022S1, MAMA042P1, MAMA042S1, MAMA082P1, MAMA082S1

Catalog

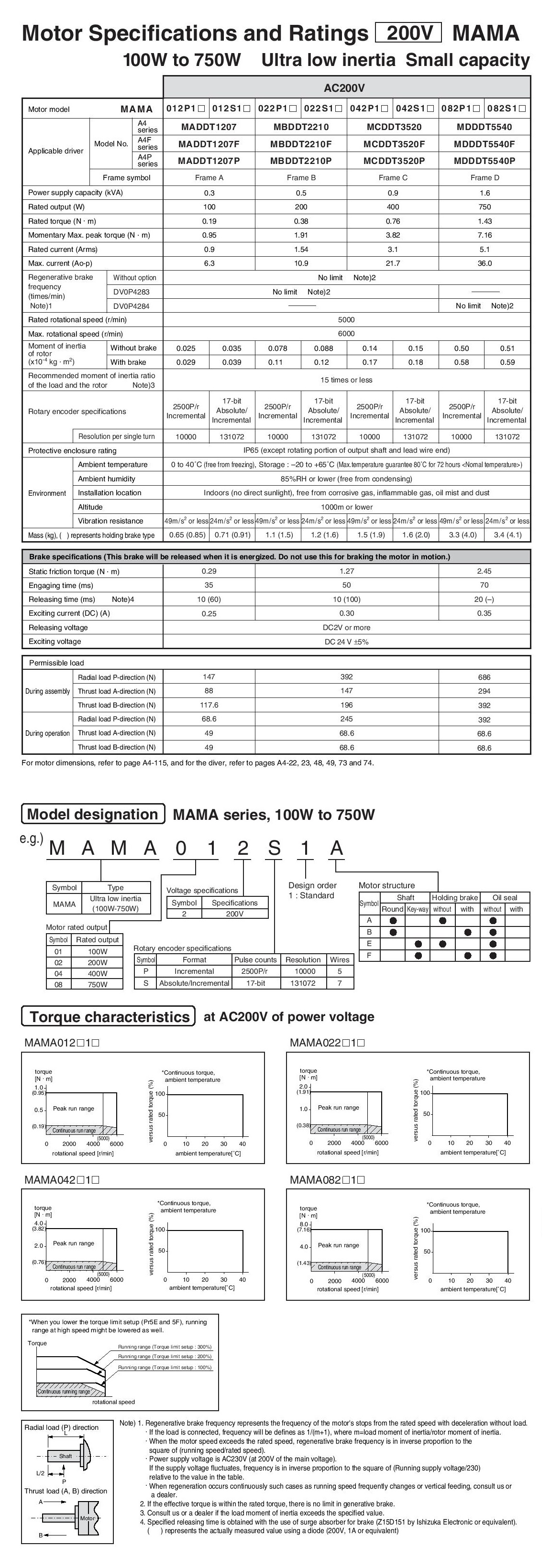

MAMA Specs

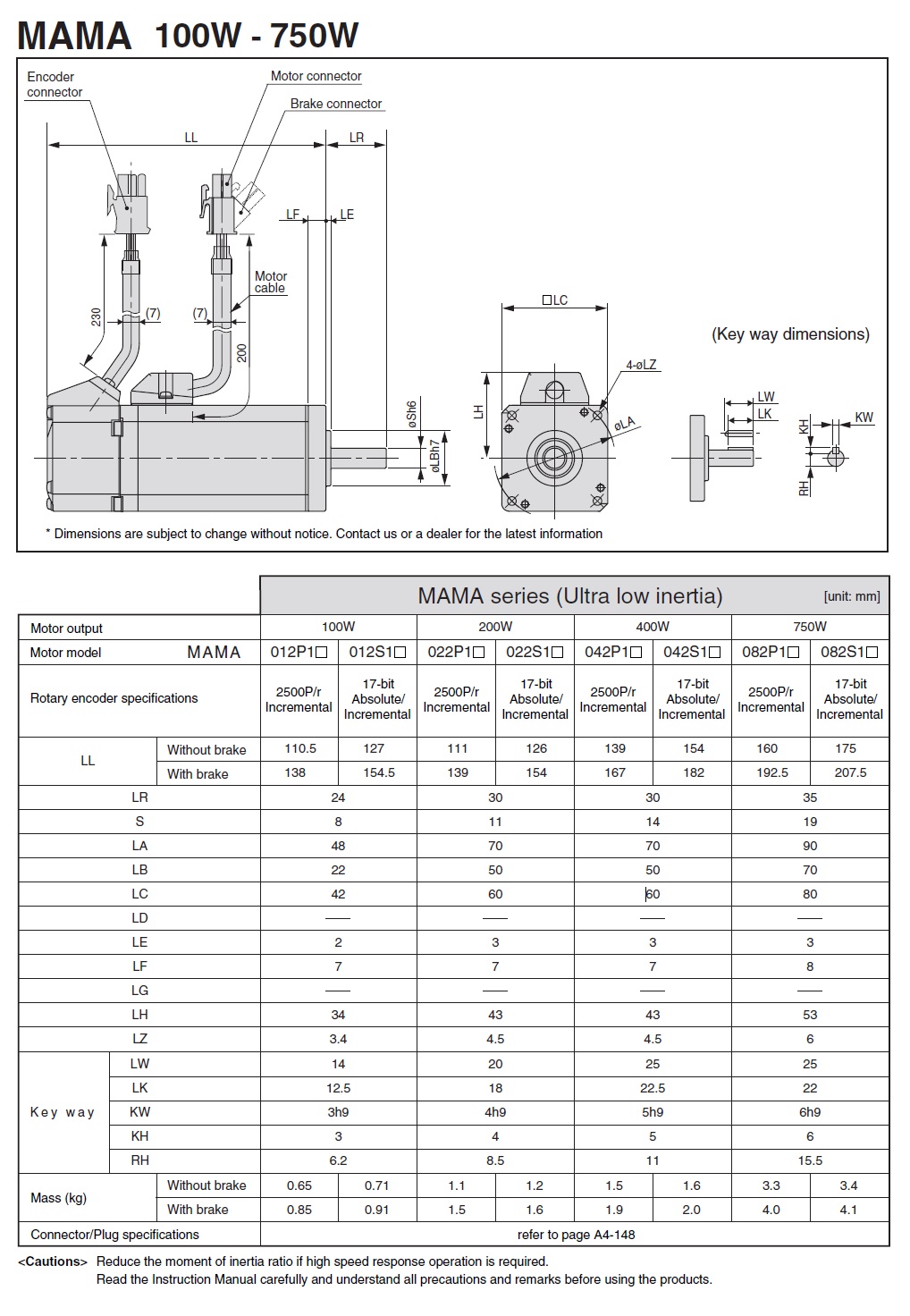

MAMA CAD

Wiring Diagram (1) (2)
