Faulhaber: Gearhead (MD35C Series)
Faulhaber: Gearhead (MD35C Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MD35C


Model No.:

.


Description Specifications and Drawings


Faulhaber: Gearhead (MD35C Series)

FAULHABER develops high performance modular gearheads to complement each of its motor technologies.

From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.

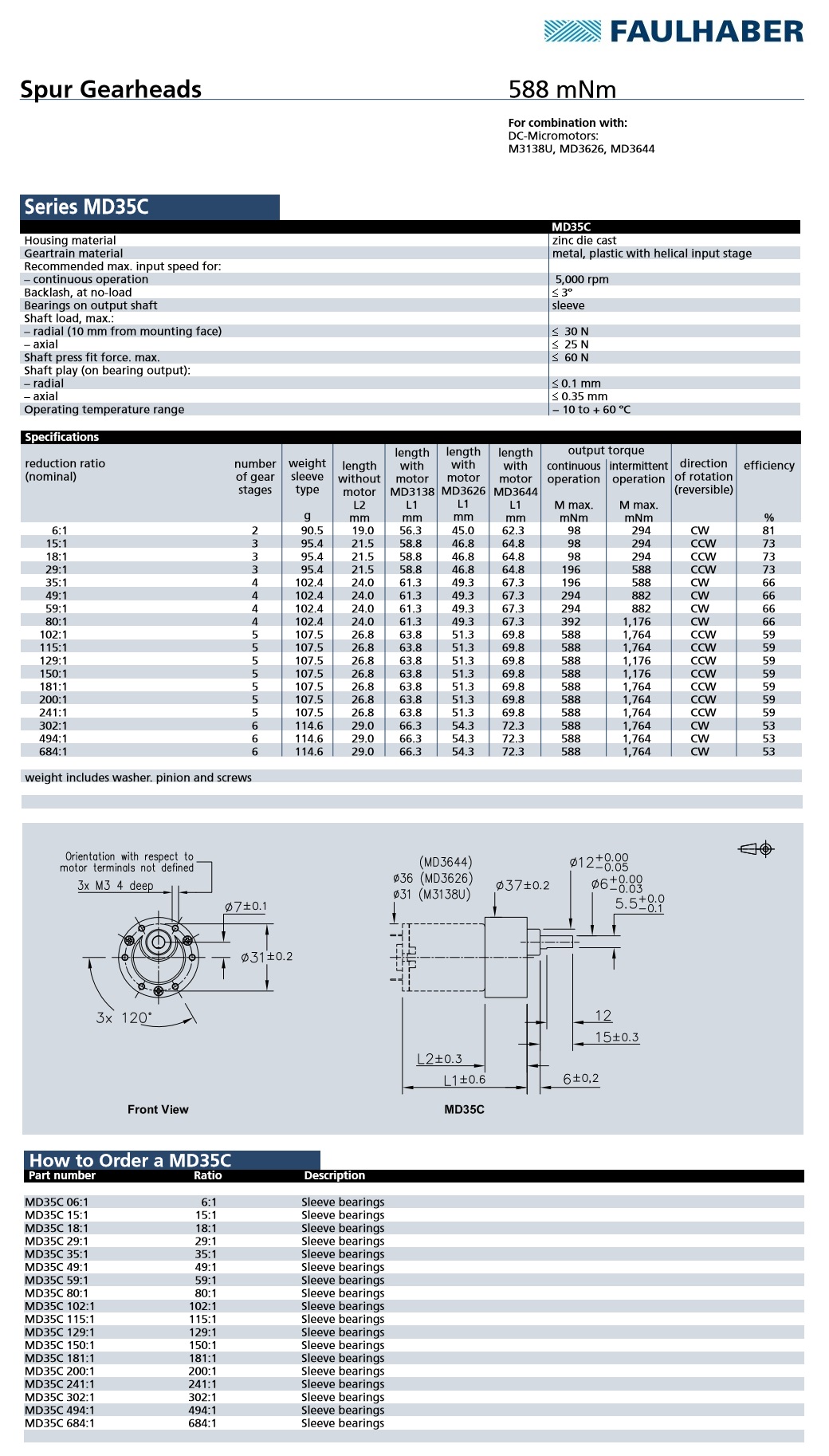

Specifications:

  • Diameter (mm): 38.2

  • Type: Spur

  • Reduction Ratios: 29:1...684:1

  • Shaft Diameter (mm): 6

  • Torque Continuous (mNm): 588

  • Torque Intermittent (mNm): 1,764

Model No.: MD35C 06:1, MD35C 102:1, MD35C 115:1, MD35C 129:1, MD35C 15:1, MD35C 150:1, MD35C 18:1, MD35C 181:1, MD35C 200:1, MD35C 241:1, MD35C 29:1, MD35C 302:1, MD35C 35:1, MD35C 49:1, MD35C 494:1, MD35C 59:1, MD35C 684:1, MD35C 80:1
