Faulhaber: Gearhead (MD35P Series)
Faulhaber: Gearhead (MD35P Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MD35P


Model No.:

.

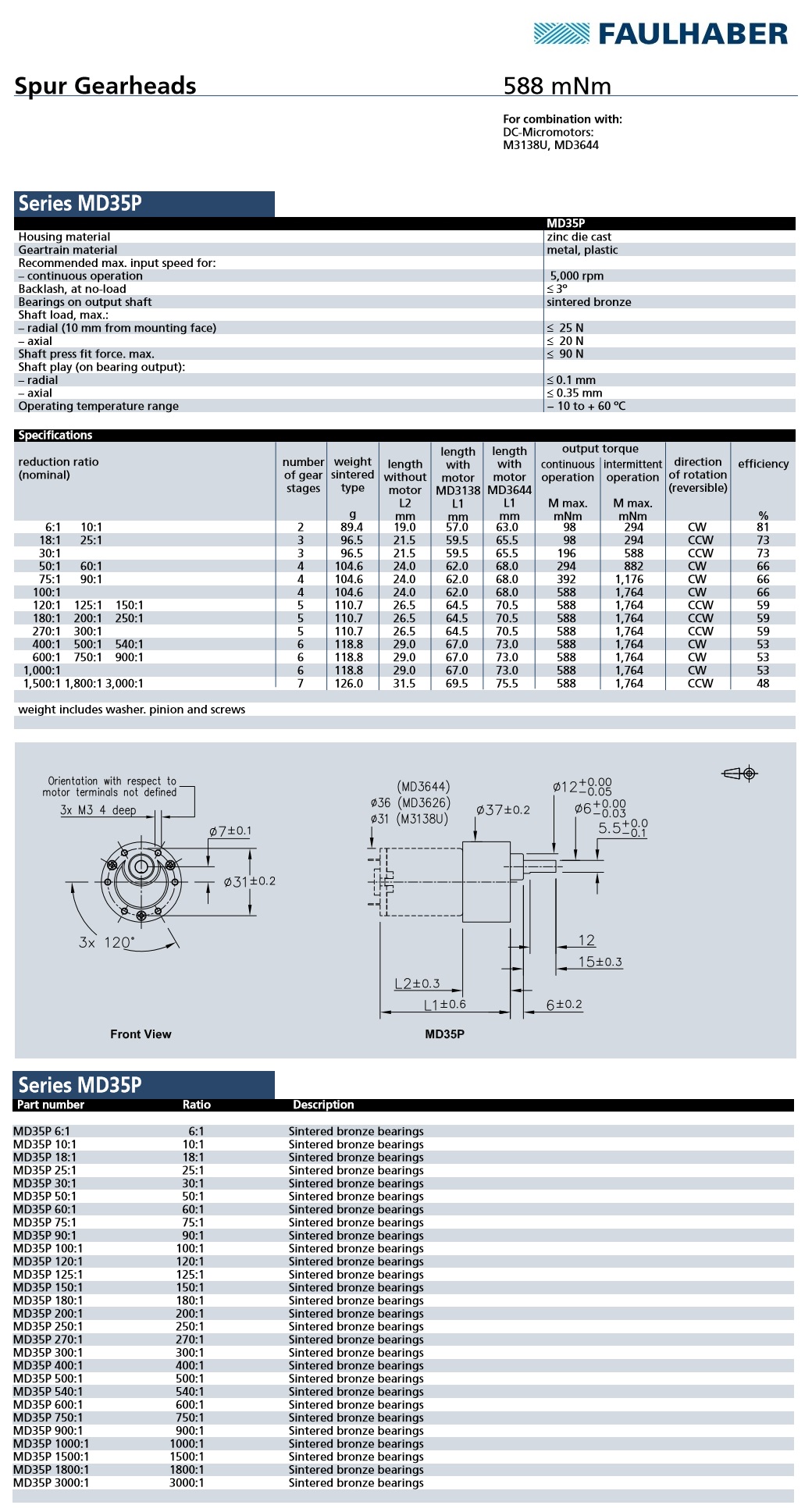

Description Specifications and Drawings


Faulhaber: Gearhead (MD35P Series)

FAULHABER develops high performance modular gearheads to complement each of its motor technologies.

From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.

Specifications:

  • Diameter (mm): 37

  • Type: Spur

  • Reduction Ratios: 6:1...3,000:1

  • Shaft Diameter (mm): 6

  • Torque Continuous (mNm): 588

  • Torque Intermittent (mNm): 1,764

Model No.: MD35P 10:1, MD35P 100:1, MD35P 1000:1, MD35P 120:1, MD35P 125:1, MD35P 150:1, MD35P 1500:1, MD35P 18:1, MD35P 180:1, MD35P 1800:1, MD35P 200:1, MD35P 25:1, MD35P 250:1, MD35P 270:1, MD35P 30:1, MD35P 300:1, MD35P 3000:1, MD35P 400:1, MD35P 50:1, MD35P 500:1, MD35P 540:1, MD35P 6:1, MD35P 60:1, MD35P 600:1, MD35P 75:1, MD35P 750:1, MD35P 90:1, MD35P 900:1
