Faulhaber: Gearhead (MD3644 + MD35 Series)
Faulhaber: Gearhead (MD3644 + MD35 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MD3644-MD35


Model No.:


.

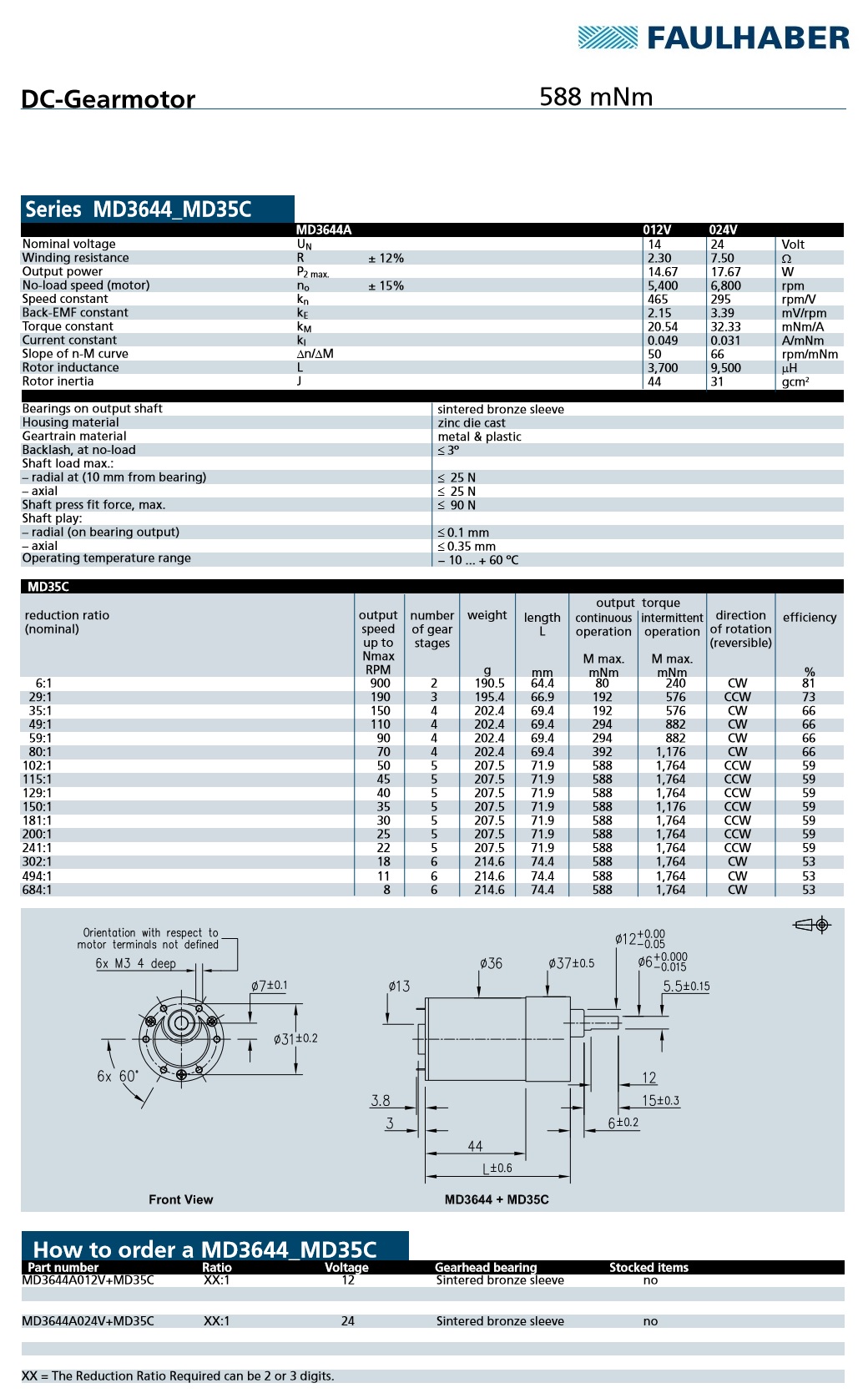

Description Specifications and Drawings


Faulhaber: Gearmotors (MD3644 + MD35 Series)

The Micro-Drives line of gearmotors are designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are required. The micro DC motors used in the gearmotors are slot wound iron core drives and are paired with metal precision planetary gearheads that range in power output from 0.6 W up to 60 W. Integral magnetic encoders are available as an option for the DC gearmotors.

Specifications:

  • Outer Diameter (mm): 37 - 38.2

  • Length (mm): 63 - 75.5

  • Shaft Diameter (mm): 6

  • Nominal Voltage (V): 12,24

  • No-Load Speed (rpm): 6,800

  • Rated Torque (mNm): 588

  • Output Power (Watt): 17.67

Model No.: MD3644A012V+MD35C, MD3644A024V+MD35C
