Panasonic: AC Servo Motors (MDME A5 Series)
Panasonic: AC Servo Motors (MDME A5 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MDME


Model No.:

.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MDME A5 Series)

MDME-MINAS A5 Series (400V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-7.5

  • Rated Output (W): 1.0-5.0

  • Rated Torque (N.m): 4.77-23.9

  • Momentary Max. Peak Torque (N.m): 14.3-71.6

  • Rated Current (Arms): 2.8-13.0

  • Max. Current (Ao-p): 12-55

  • Rated Rotational Speed (r/min): 2000

  • Max. Rotational Speed (r/min): 3000

  • Static Friction Torque (N.m): 4.9-24.5 or more

  • Engaging Time (ms): 80 or less

  • Releasing Time (ms): 25-70 or less

  • Exciting Current (DC) (A): 0.59-1.3±10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Break (kg): 5.2-18.6


Model No.: MDME044GCA, MDME044GCB, MDME044GCC, MDME044GCD, MDME044GCG, MDME044GCH, MDME064GCA, MDME064GCB, MDME064GCC, MDME064GCD, MDME064GCG, MDME064GCH, MDME104GCC, MDME104GCD, MDME104GCG, MDME104GCH, MDME154GCC, MDME154GCD, MDME154GCG, MDME154GCH, MDME204GCC, MDME204GCD, MDME204GCG, MDME204GCH, MDME304GCC, MDME304GCD, MDME304GCG, MDME304GCH, MDME404GCC, MDME404GCD, MDME404GCG, MDME404GCH, MDME504GCC, MDME504GCD, MDME504GCG, MDME504GCH, MDME754G1C, MDME754G1D, MDME754G1G, MDME754G1H, MDMEC14G1C, MDMEC14G1D, MDMEC14G1G, MDMEC14G1H, MDMEC54G1C, MDMEC54G1G


Catalog

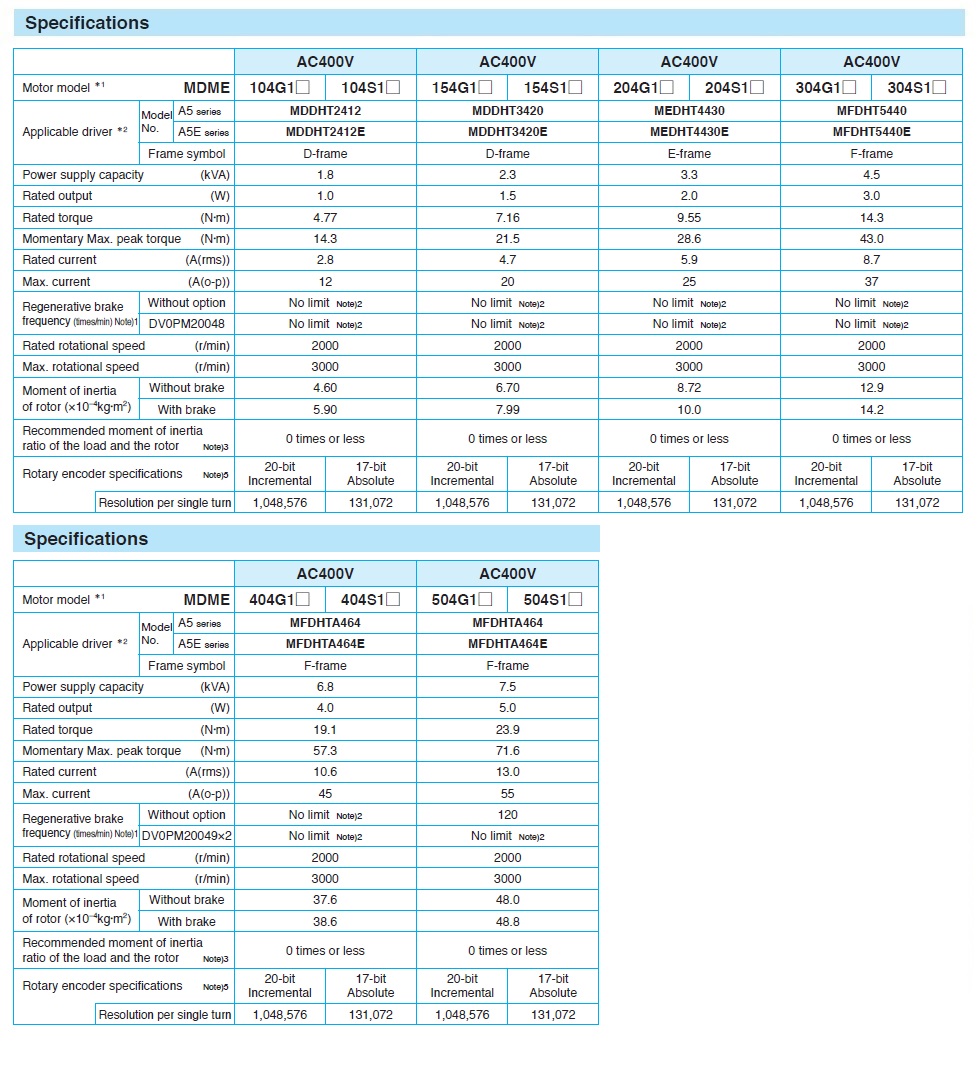

MDME Specs

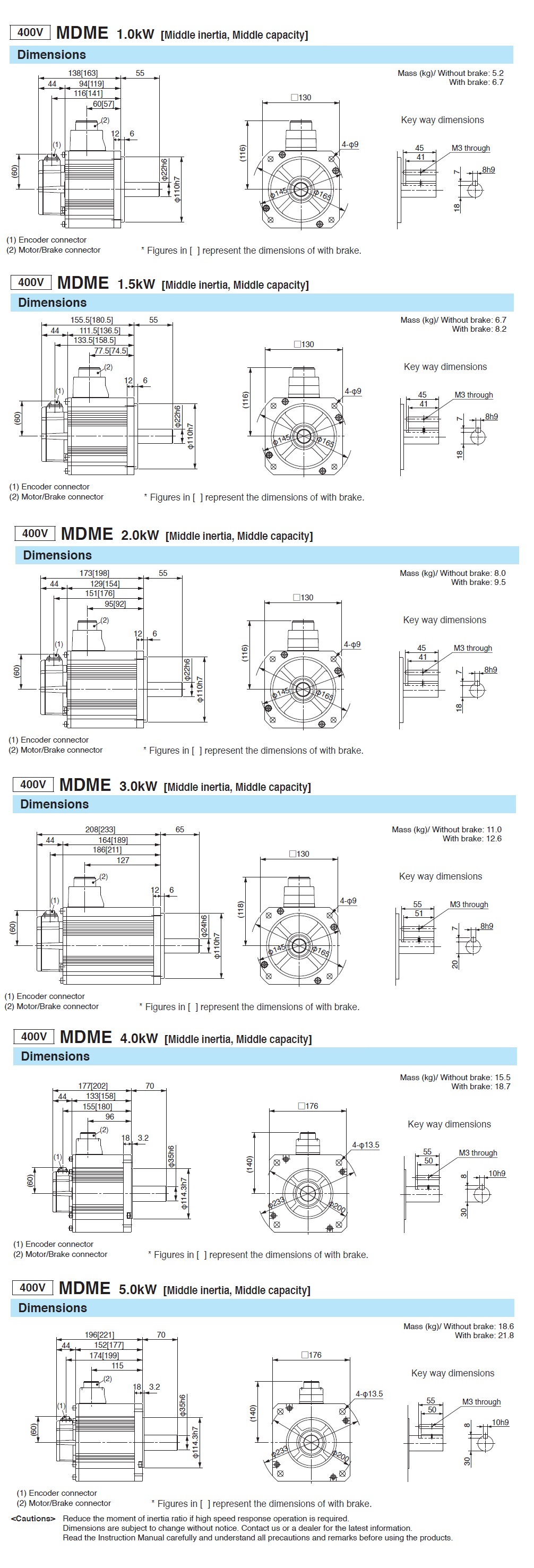

MDME CAD

Torque Curves
