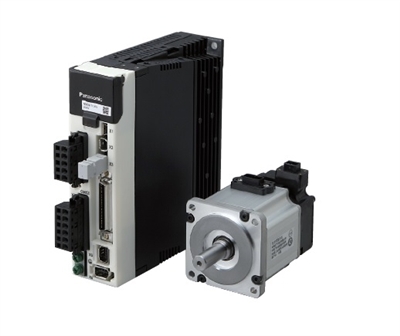

Panasonic: AC Servo Motors (MDME A5 Series)
Panasonic: AC Servo Motors (MDME A5 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MDME5


Model No.:

.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MDME A5 Series)

MDME-MINAS A5 Series (200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-7.5

  • Rated Output (W): 1.0-5.0

  • Rated Torque (N.m): 4.77-23.9

  • Momentary Max. Peak Torque (N.m): 14.3-71.6

  • Rated Current (Arms): 5.7-25.9

  • Max. Current (Ao-p): 24-110

  • Rated Rotational Speed (r/min): 2000

  • Max. Rotational Speed (r/min): 3000

  • Static Friction Torque (N.m): 13.7-24.5 or more

  • Engaging Time (ms): 80-100 or less

  • Releasing Time (ms): 25-50 or less

  • Exciting Current (DC) (A): 0.79-1.3± 10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Break (kg): 5.2-18.6


Model No.: MDME102G1C, MDME102G1D, MDME102G1G, MDME102G1H, MDME102GCCM, MDME102GCDM, MDME102GCGM, MDME102GCHM, MDME152G1C, MDME152G1D, MDME152G1G, MDME152G1H, MDME152GCCM, MDME152GCDM, MDME152GCGM, MDME152GCHM, MDME202G1C, MDME202G1D, MDME202G1G, MDME202G1H, MDME202GCCM, MDME202GCDM, MDME202GCGM, MDME202GCHM, MDME302G1C, MDME302G1D, MDME302G1G, MDME302G1H, MDME302GCCM, MDME302GCDM, MDME302GCGM, MDME302GCHM, MDME402G1C, MDME402G1D, MDME402G1G, MDME402G1H, MDME402GCC, MDME402GCD, MDME402GCG, MDME402GCH, MDME502G1C, MDME502G1D, MDME502G1G, MDME502G1H, MDME502GCC, MDME502GCD, MDME502GCG, MDME502GCH, MDME752G1C, MDME752G1D, MDME752G1G, MDME752G1H, MDMEC12G1C, MDMEC12G1D, MDMEC12G1G, MDMEC12G1H, MDMEC52G1C, MDMEC52G1D, MDMEC52G1G, MDMEC52G1H


Catalog

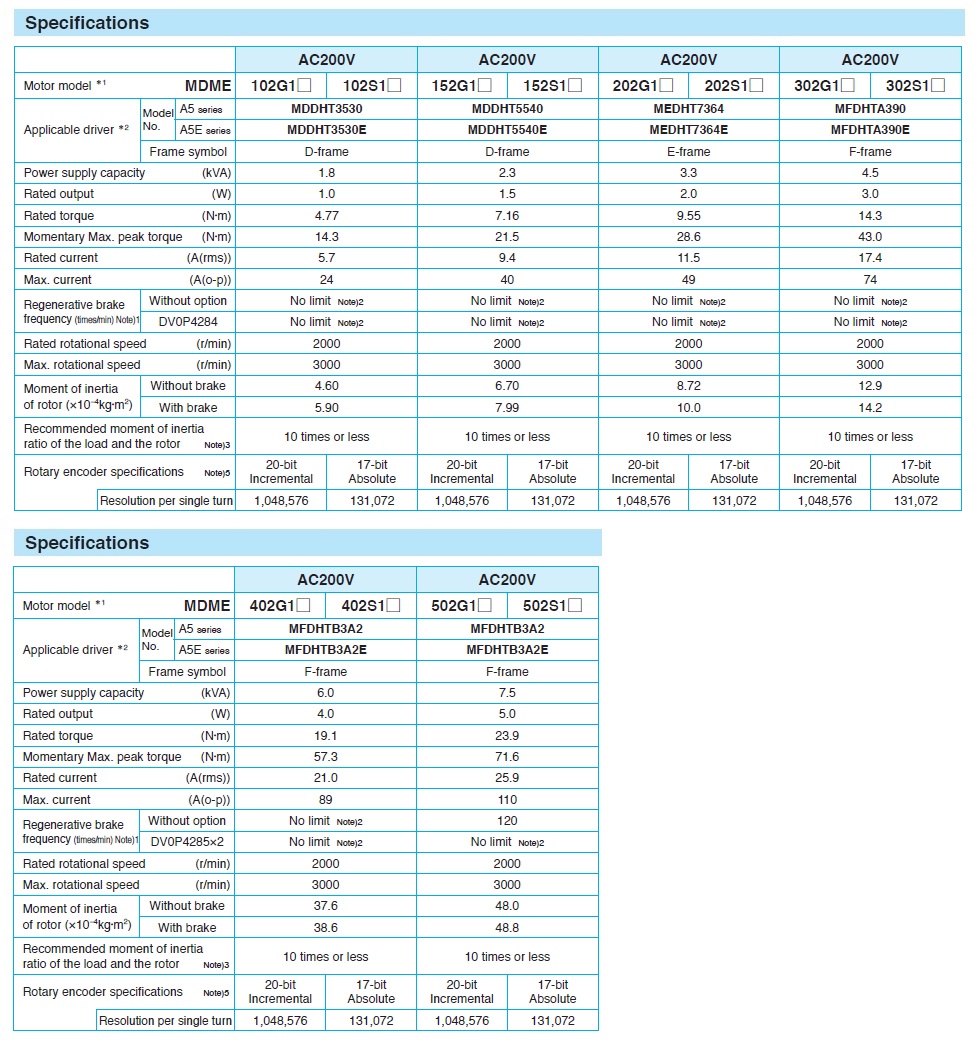

MDME Specs

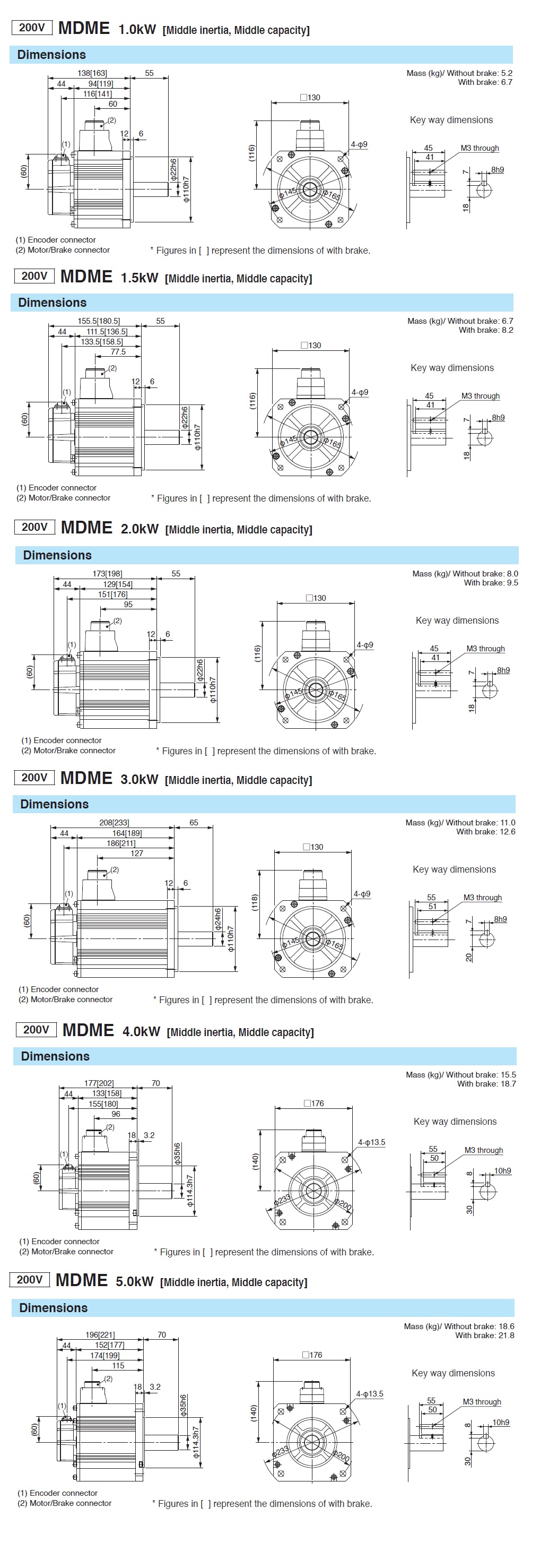

MDME CAD

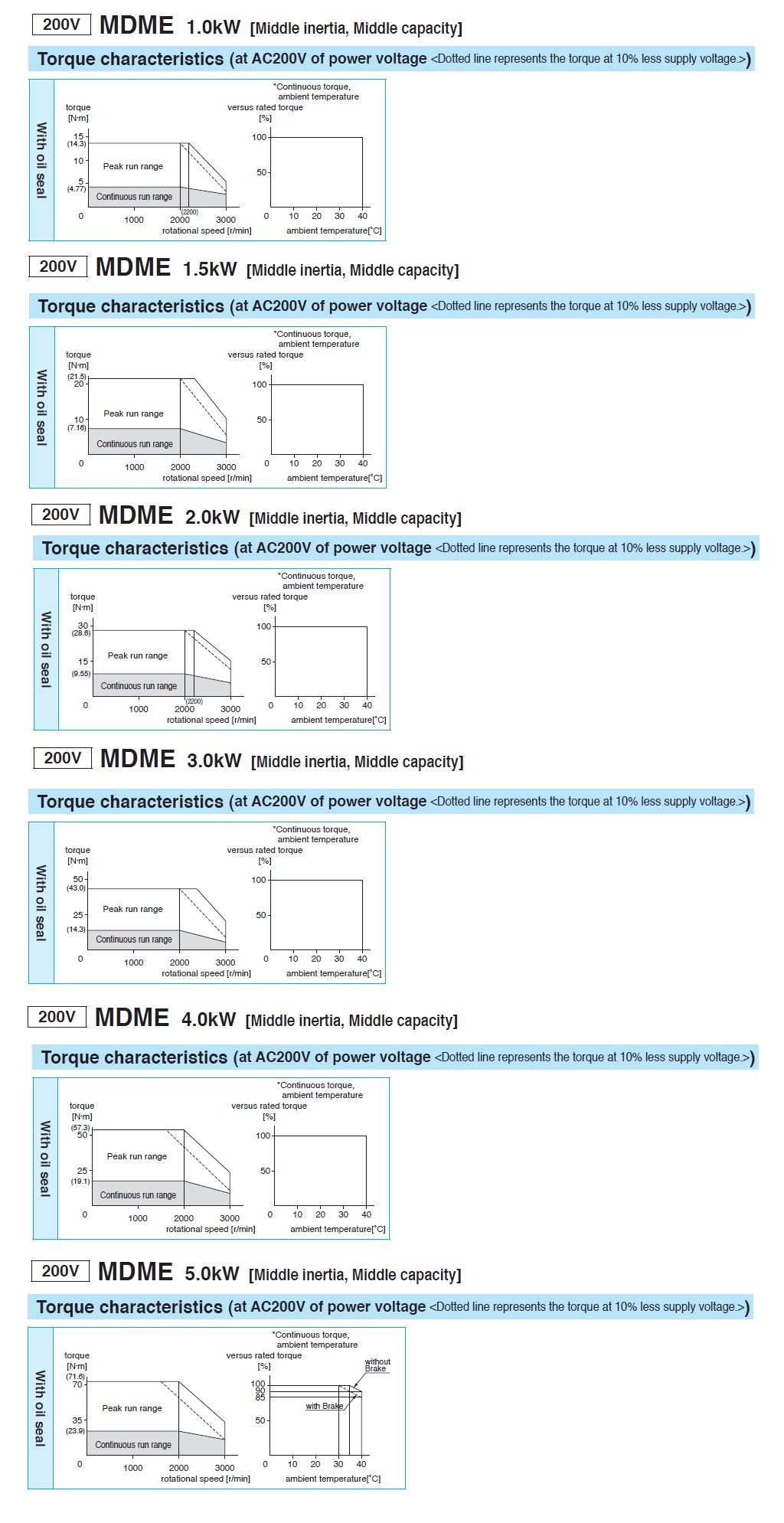

Torque Curves
