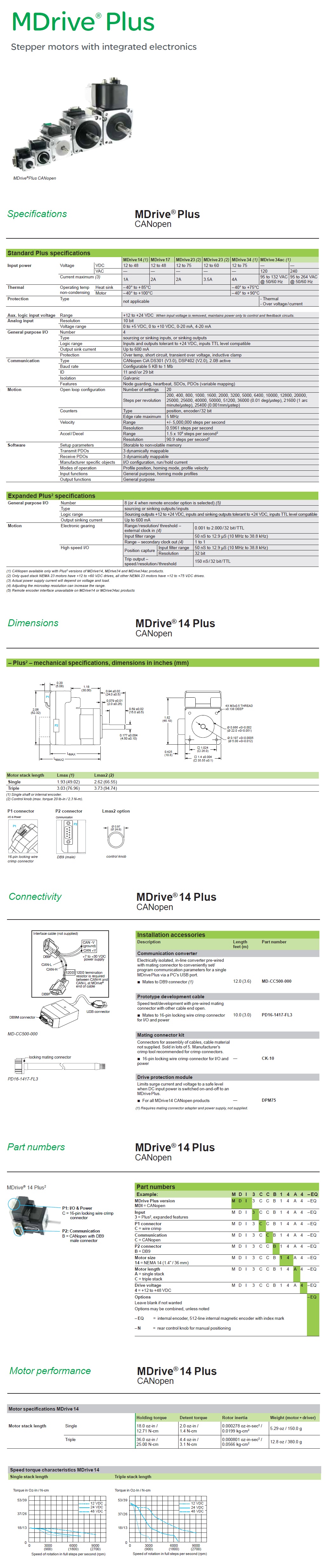

Schneider Electric: MDrive® Plus CANopen (NEMA 14)

Presentation

The MDrive® Plus with CANopen interface is a 1.8° 2-phase stepper motor with on-board controller, drive electronics and optional encoder.

IMS CANopen firmware is provided for MDrive Plus CANopen products, in addition to CANopen Tester GUI software for interface with the MD-CC500-000 CANopen dongle.

MDrive Plus CANopen products support CiA DS301 and DSP402 Device Profile for Drives and Motion Control.

Application areas

The MDrive Plus with CANopen interface is ideal for machine builders who want an optimized motor with on-board electronics. The integrated electronics of the MDrive Plus with CANopen interface reduces the potential for problems due to electrical noise by eliminating the cable between motor and drive.

These compact, powerful and cost effective motion control solutions deliver unsurpassed smoothness and performance that will reduce system cost, design and assembly time for a large range of 2-phase stepper motor applications.

Features

■ Highly integrated microstepping drive and high torque 1.8° 2-phase stepper motor

■ Advanced current control for exceptional performance and smoothness

■ Single supply: from +12 up to +75 VDC or 120 and 240 VAC

■ Cost effective

■ Extremely compact

■ 20 microstep resolutions to 51,200 steps/rev including: Degrees, Metric, Arc Minutes

■ Auxiliary logic power supply input

■ Open or optional closed loop control

■ Programmable motor run and hold currents

■ Four +5 to +24 VDC I/O lines accept sinking outputs, or sinking and sourcing inputs

■ One 10 bit analog input selectable: 0 to +10 VDC, 0 to +5 VDC, 0-20 mA, 4-20 mA

■ 0 to 5 MHz step clock rate selectable in 0.59 Hz increments

■ CANopen communication

■ Available options:

– Long life linear actuators (1)

– Hybrid Motion Technology™ (1)

– Encoders

– Control knob for manual positioning

– Industrial connectors with IP54 rating (2)

■ Several motor stack lengths available

■ Graphical user interface provided for quick and easy configuration and programming via optional MD-CC500-000 Communication Converter

Expanded Plus²

■ +24 VDC tolerant I/O sourcing or sinking, inputs and outputs with up to 8 I/O lines and electronic gearing

■ Closed loop control available with external / remote encoder option (3)

■ High speed position capture input or trip output

(1) See separate documentation.

(2) Industrial connectors are unavailable for MDrive14 or MDrive34 products.

(3) Remote encoder interface unavailable on MDrive14 or MDrive34ac products
