CUI: Shaft Incremental Encoders (MES3 Series)
CUI: Shaft Incremental Encoders (MES3 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MES3
.

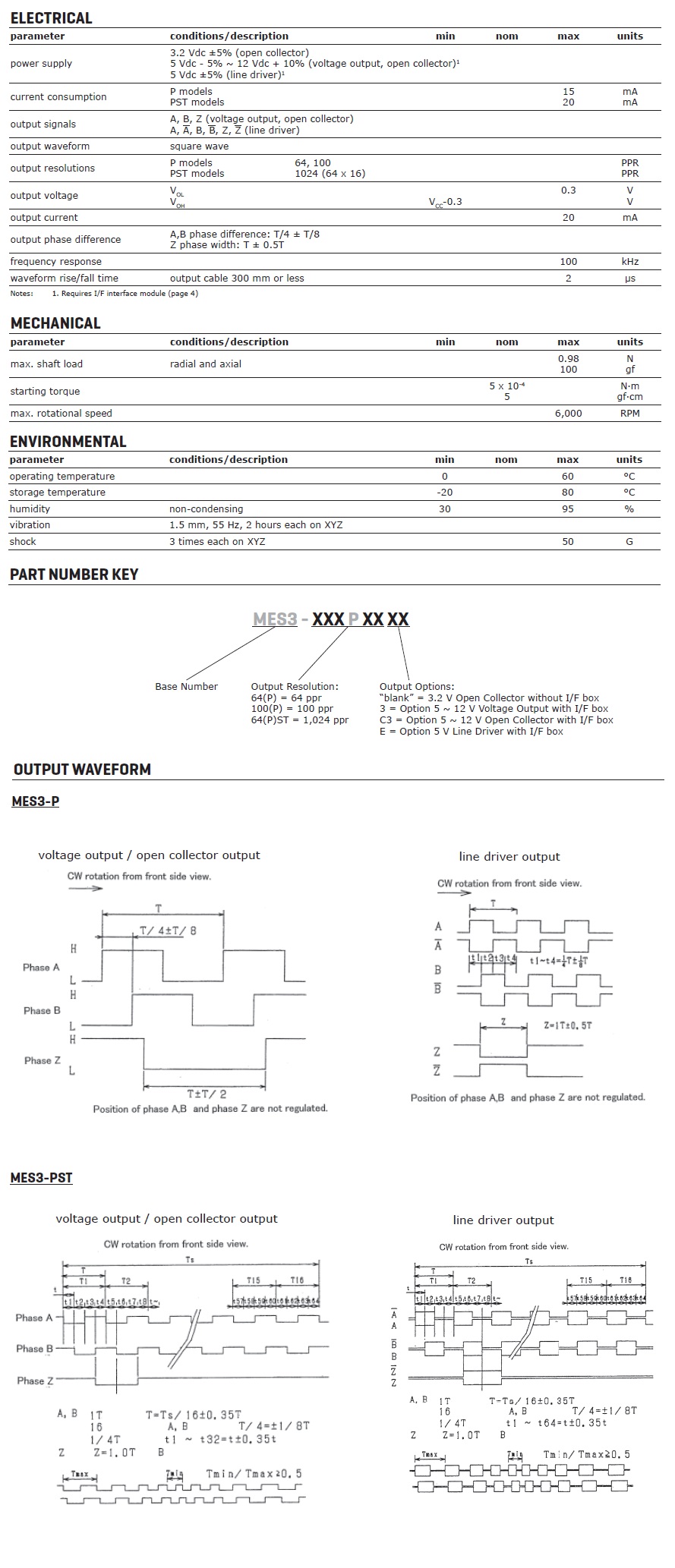

Description Specifications and Drawings

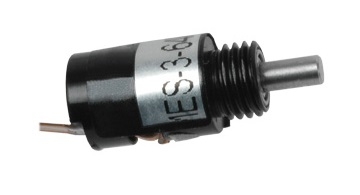

CUI: MES3 Series
5 mm, 64 ~ 1024 PPR, Square Wave, Incremental, Optical Shaft Encoder

Features:

  • 5 mm diameter

  • 64, 100, or 1024 ppr resolution

  • Square wave output

Specifications

  • Input Voltage (Vdc): 4.5 ~ 5.5

  • Shaft Length (mm): 2.5

  • Shaft (Bore) Ø (mm): 1.5

  • Operating Temp. (°C): 0 ~ 60

  • Speed, Max. (RPM): 6000
