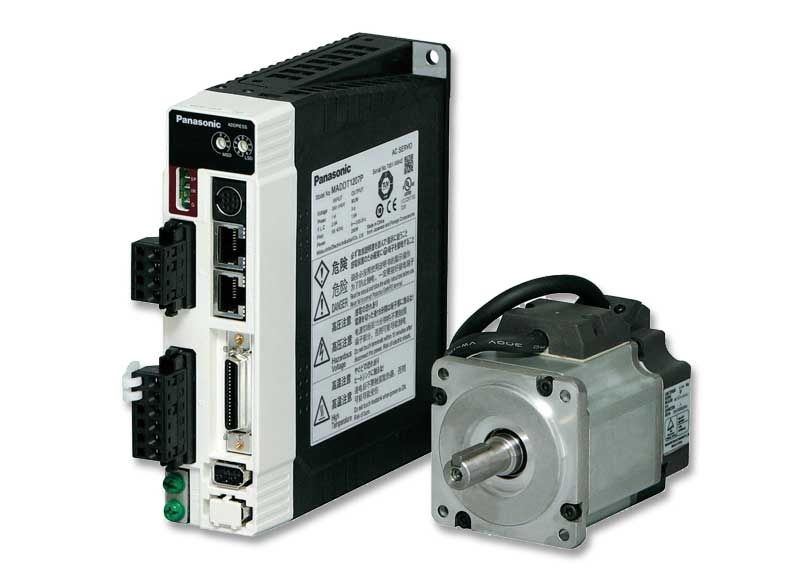

Panasonic: AC Servo Motors (MFMA A4 Series)

MFMA-MINAS A4 Series (200V)


Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with overtravel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Power Supply Capacity (kVA): 1.0-6.8

  • Rated Output (W): 400-4500

  • Rated Torque (N.m): 1.9-21.5

  • Momentary Max. Peak Torque (N.m): 5.3-54.9

  • Rated Current (Arms): 2.8-23.5

  • Max. Current (Ao-p): 12.0-100.0

  • Rated Rotational Speed (r/min): 2000

  • Max. Rotational Speed (r/min):3000

  • Static Friction Torque (N.m): 4.9-31.4

  • Engaging Time (ms): 80-150

  • Releasing Time (ms): 70-100

  • Exciting Current (DC) (A): 0.59-0.75

  • Releasing Voltage: DC2V or more

  • Exciting Voltage: DC 24 V± 10%

  • Mass without Brake (kg): 4.7-19.9


Model No.: MFMA042P1, MFMA042S1, MFMA152P1, MFMA152S1, MFMA252P1, MFMA252S1, MFMA452P1, MFMA452S1


Catalog

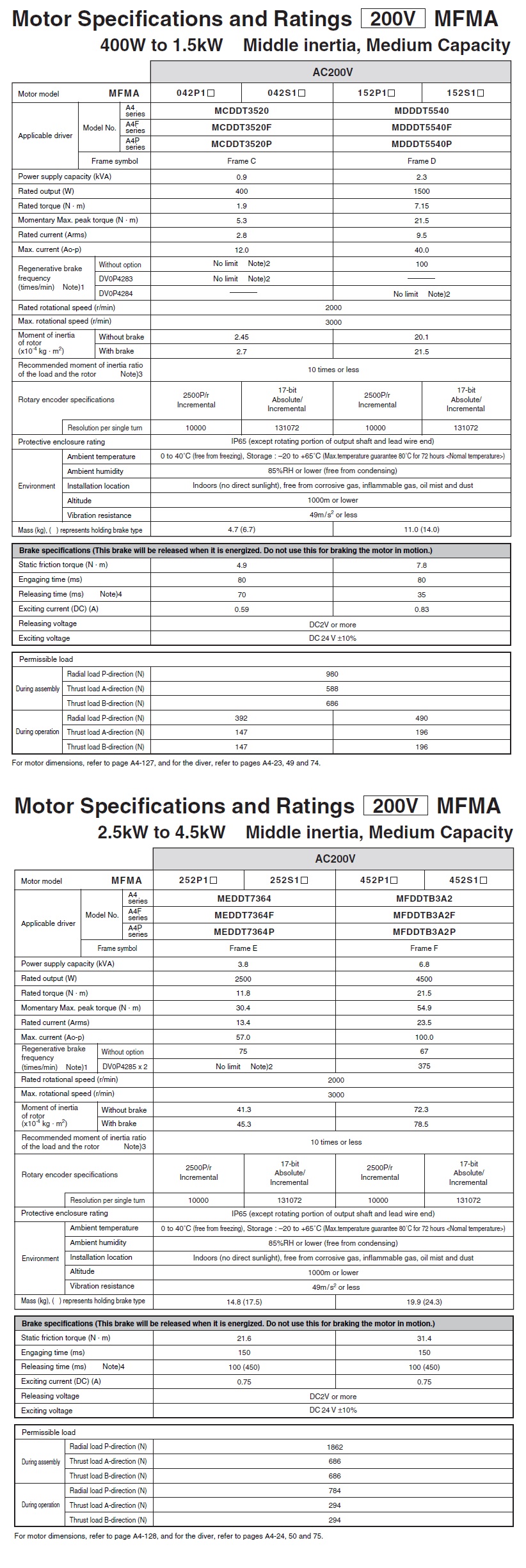

MFMA Specs

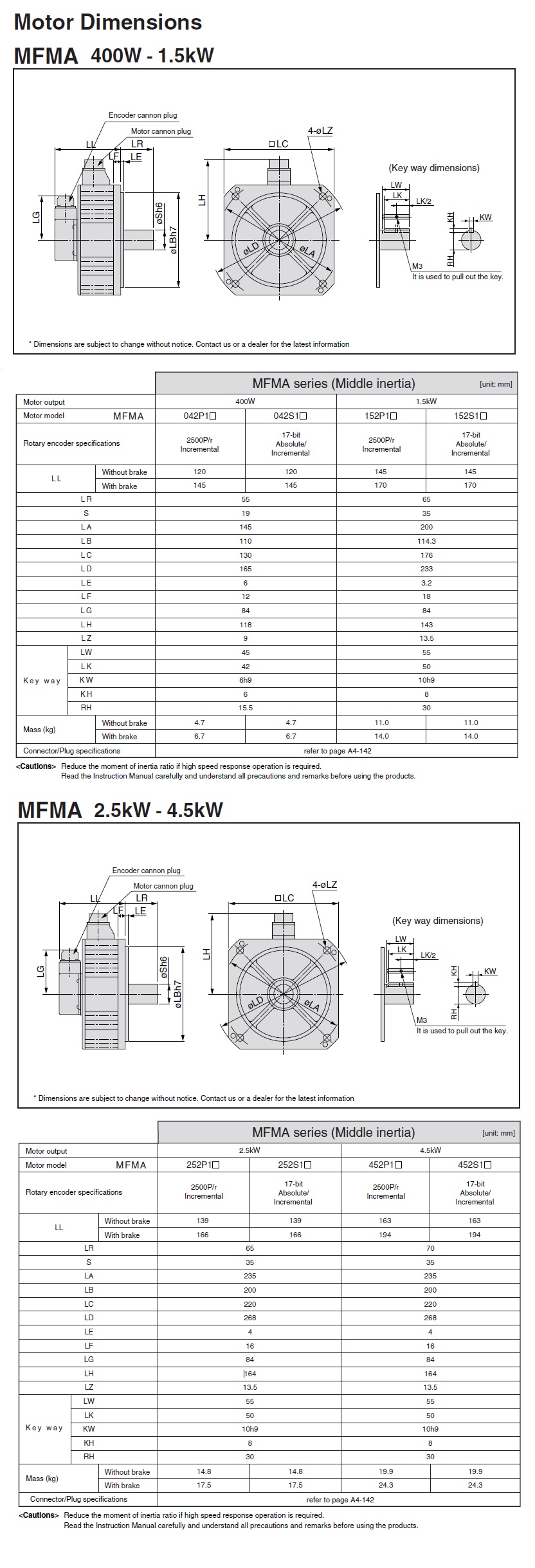

MFMA CAD

Wiring Diagram (1) (2)

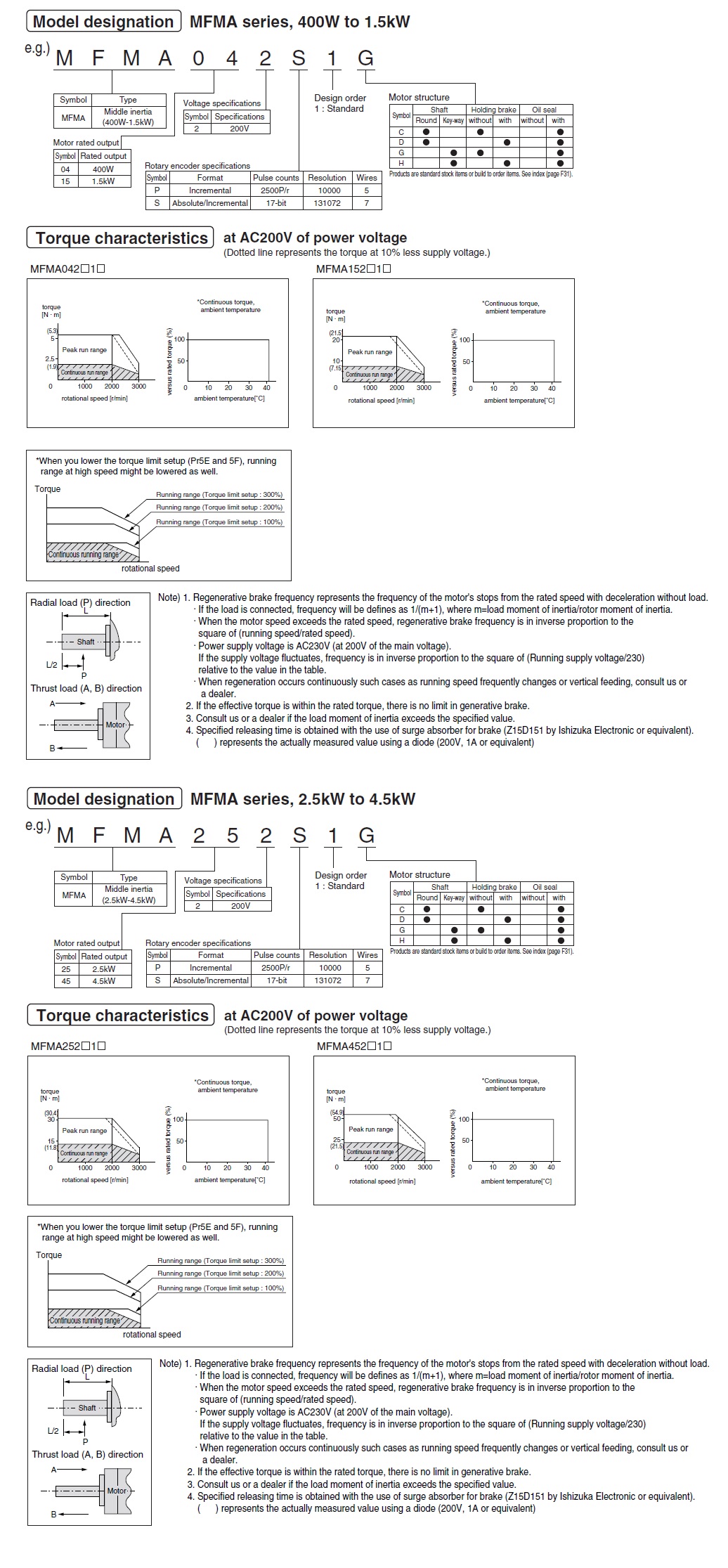

Buying Guide
