Panasonic: AC Servo Motors (MGMA A4 Series)

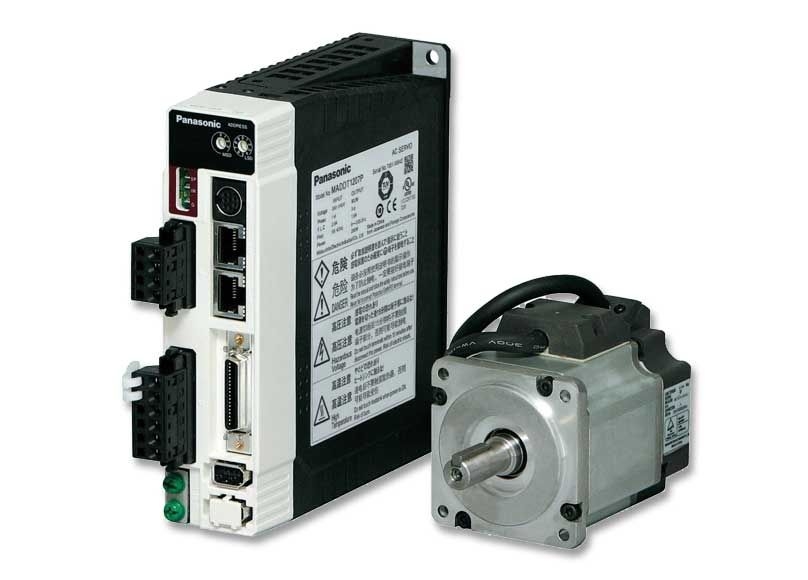

MGMA-MINAS A4 Series (200V)
Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with overtravel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.
Features:
Power Supply Capacity (kVA): 1.8-11
Rated Output (W): 900-6000
Rated Torque (N.m): 8.62-57.2
Momentary Max. Peak Torque (N.m): 19.3-137
Rated Current (Arms): 7.6-47.0
Max. Current (Ao-p): 24.0-170.0
Rated Rotational Speed (r/min): 1000
Max. Rotational Speed (r/min): 2000
Static Friction Torque (N.m): 13.7-58.8
Engaging Time (ms): 100-150
Releasing Time (ms): 50
Exciting Current (DC) (A): 0.79-1.40
Releasing Voltage: DC2V or more
Exciting Voltage: DC 24 V± 10%
Mass without Brake (kg): 8.5-41.0
Model No.: MGMA092P1, MGMA092S1, MGMA202P1, MGMA202S1, MGMA302P1, MGMA302S1, MGMA452P1, MGMA452S1, MGMA602P1, MGMA602S1
Catalog

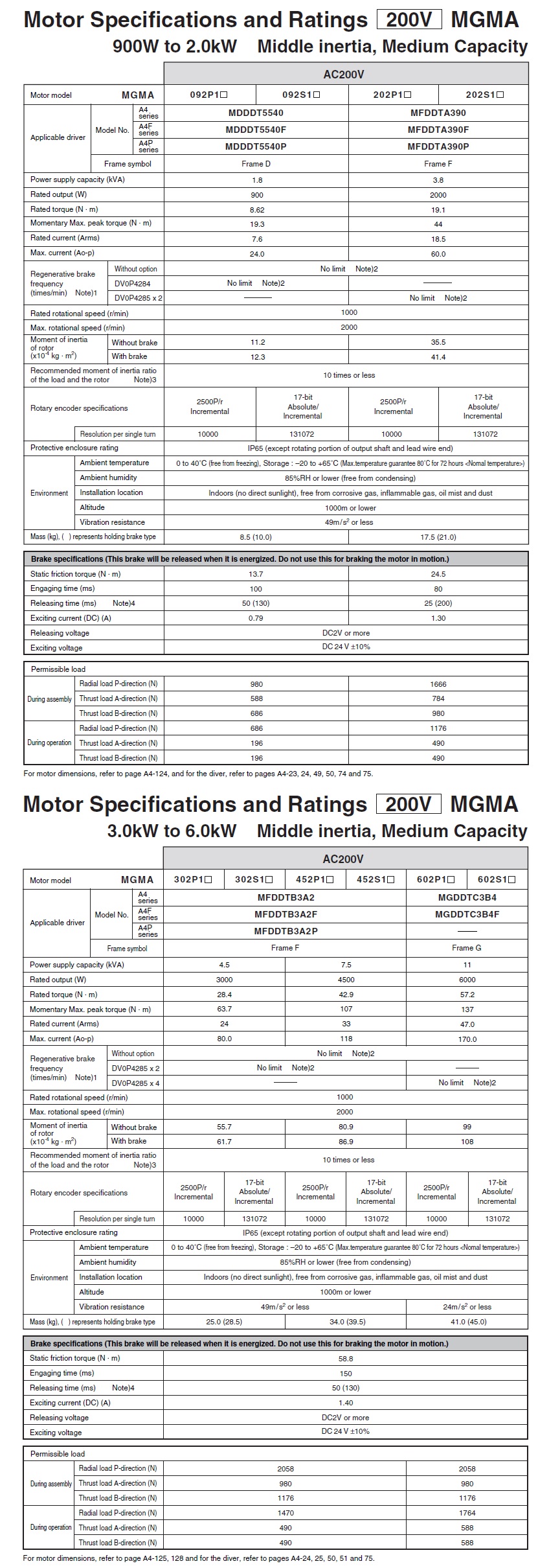

MGMA Specs

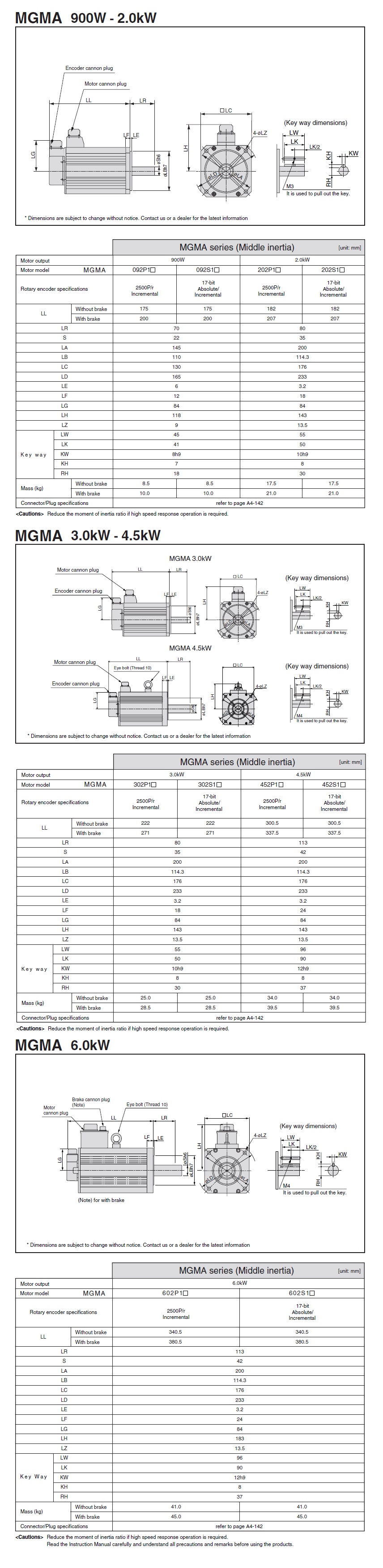

MGMA CAD
Wiring Diagram (1) (2)

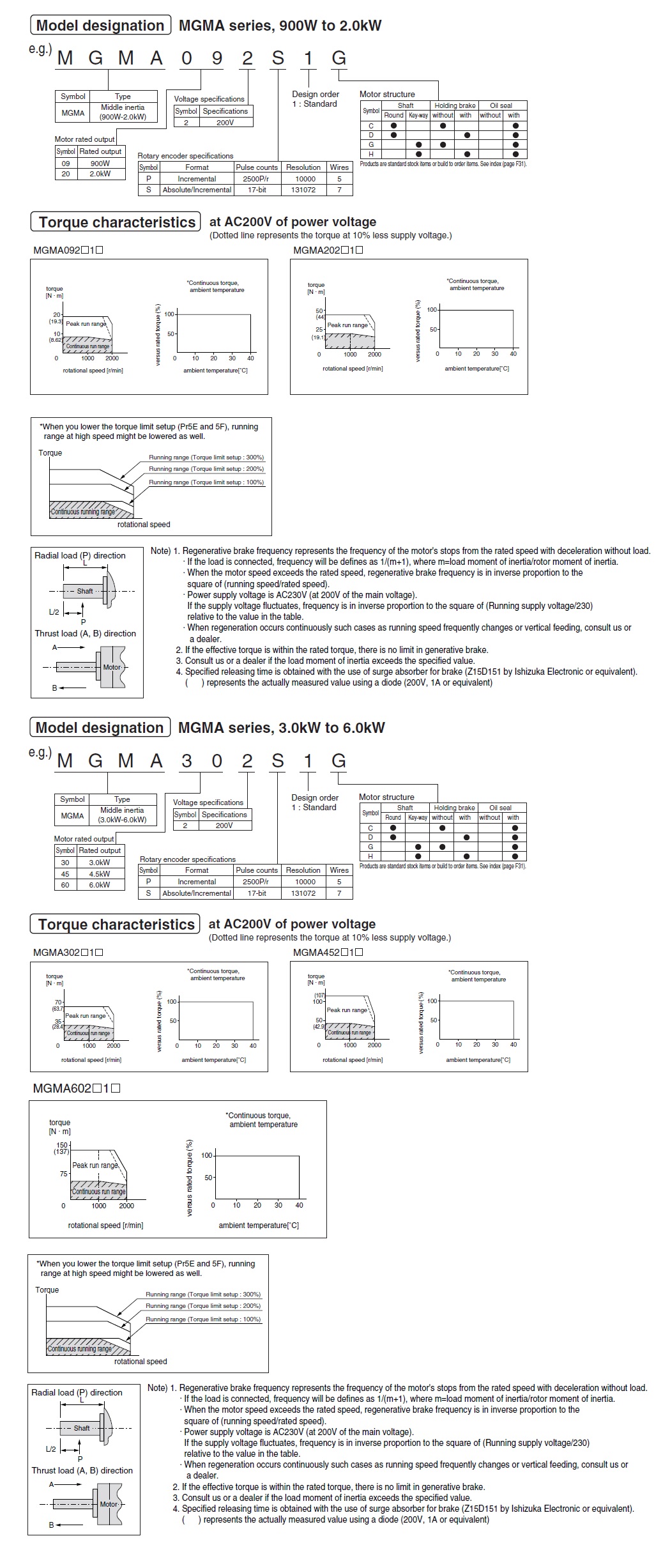

Buying Guide
