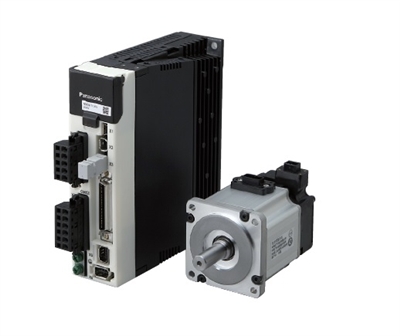

Panasonic: AC Servo Motors (MGME A5 Series)
Panasonic: AC Servo Motors (MGME A5 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MGME-A5


Model No.:


.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MGME A5 Series)

MGME-MINAS A5 Series (200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-4.5

  • Rated Output (W): 0.9-3.0

  • Rated Torque (N.m): 8.59-28.7

  • Momentary Max. Peak Torque (N.m): 19.3-71.7

  • Rated Current (Arms): 7.6-22.6

  • Max. Current (Ao-p): 24-80

  • Rated Rotational Speed (r/min): 1000

  • Max. Rotational Speed (r/min): 2000

  • Static Friction Torque (N.m): 13.7-58.8 or more

  • Engaging Time (ms): 100-150 or less

  • Releasing Time (ms): 50 or less

  • Exciting Current (DC) (A): 0.79-1.4±10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Brake (kg): 6.7-20


Model No
.: MGME092G1A, MGME092G1B, MGME092G1C, MGME092G1D, MGME092G1G, MGME092G1H, MGME092GCA, MGME092GCB, MGME092GCC, MGME092GCD, MGME092GCG, MGME092GCH, MGME202G1C, MGME202G1D, MGME202G1G, MGME202G1H, MGME202GCC, MGME202GCD, MGME202GCG, MGME202GCH, MGME302G1C, MGME302G1D, MGME302G1G, MGME302G1H, MGME302GCC, MGME302GCD, MGME302GCG, MGME302GCH, MGME452G1C, MGME452G1D, MGME452G1G, MGME452G1H, MGME452GCC, MGME452GCD, MGME452GCG, MGME452GCH, MGME602G1C, MGME602G1D, MGME602G1G, MGME602G1H, MGME602GCC, MGME602GCD, MGME602GCG, MGME602GCH


Catalog

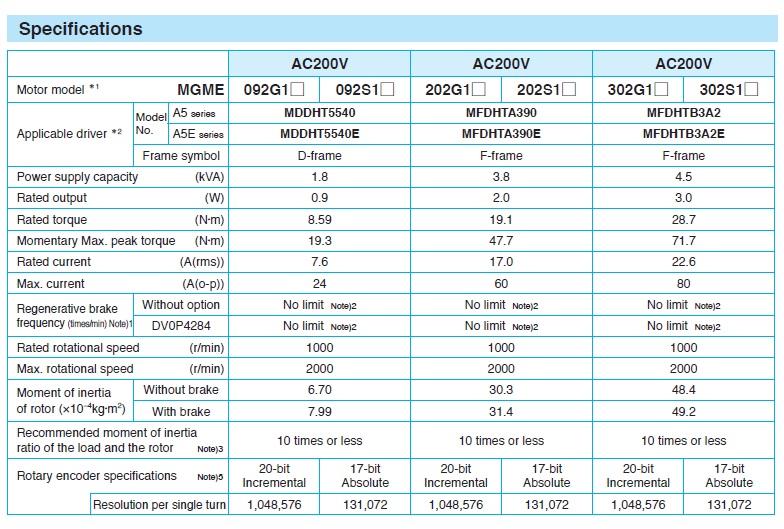

MGME Specs

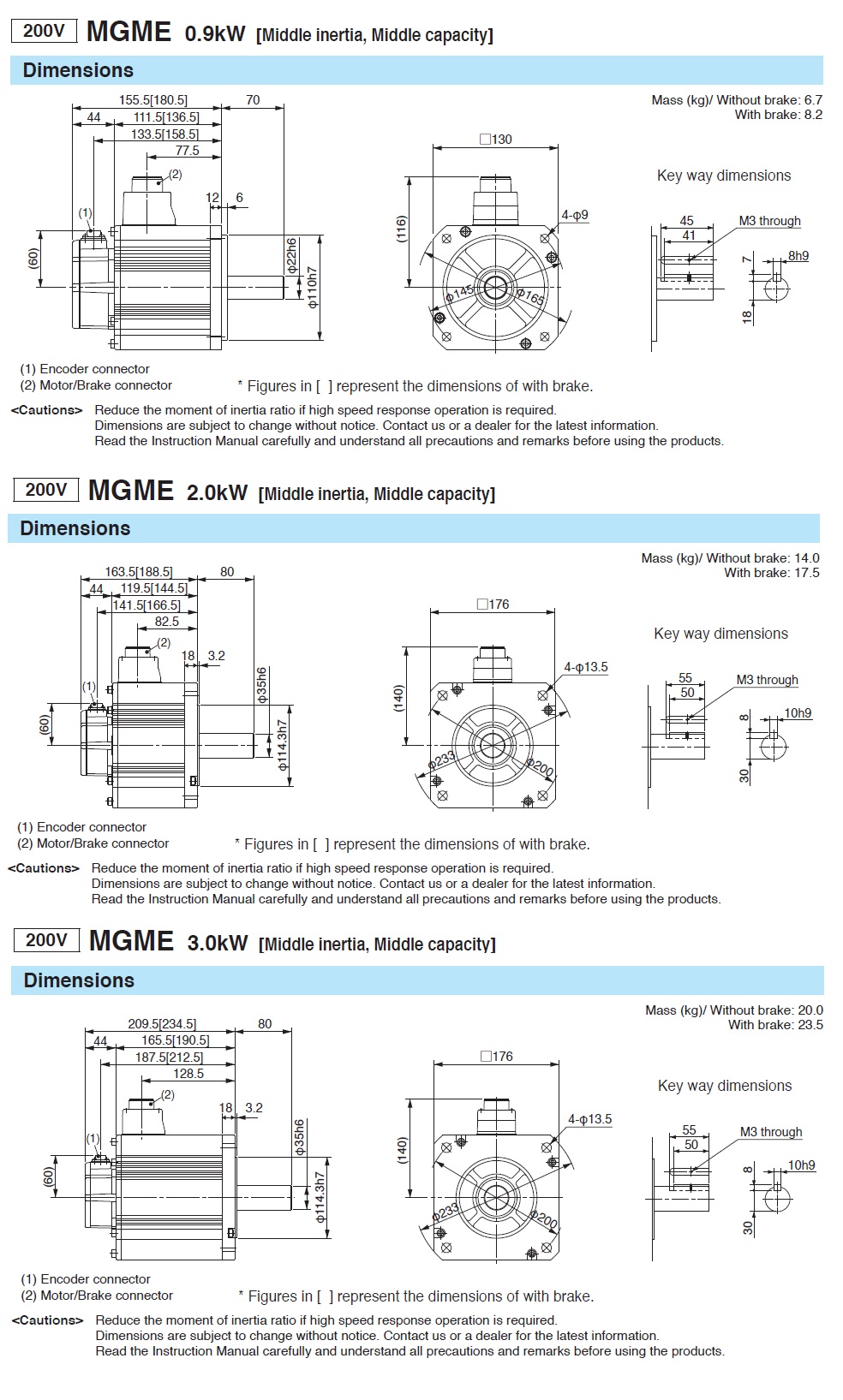

MGME CAD

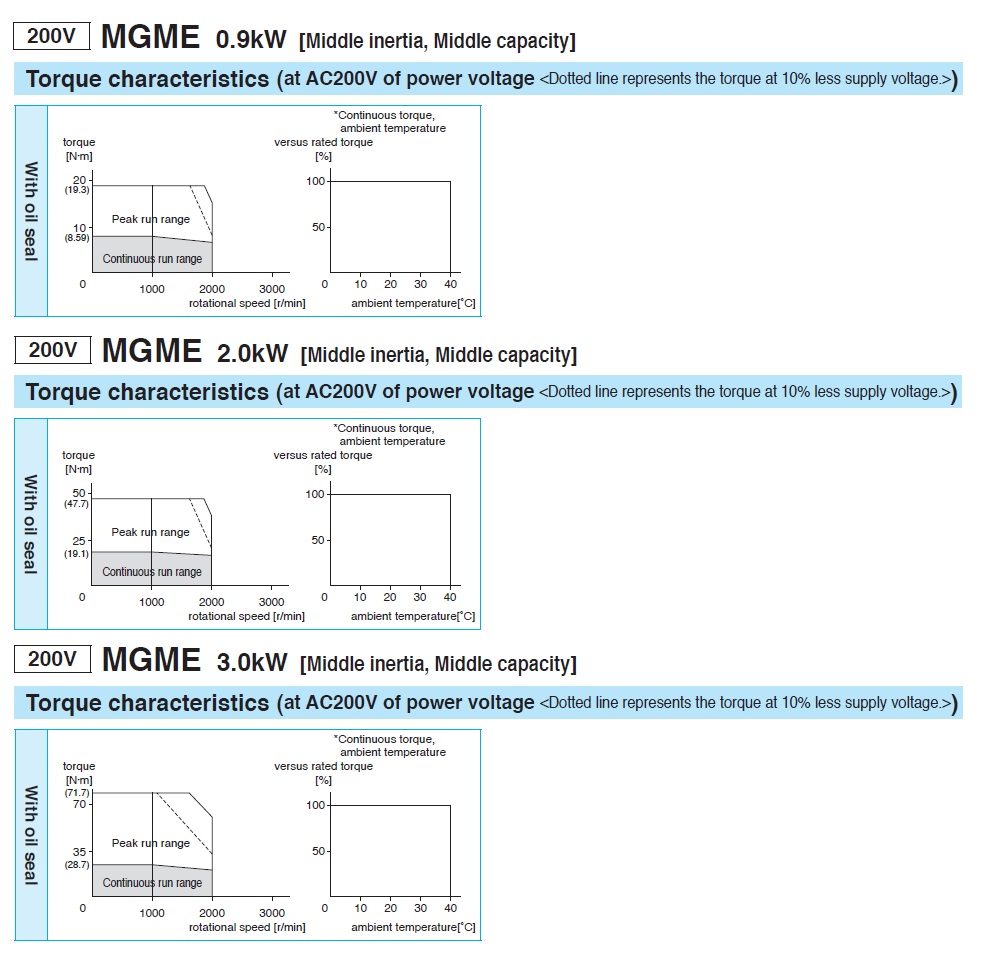

Torque Curves

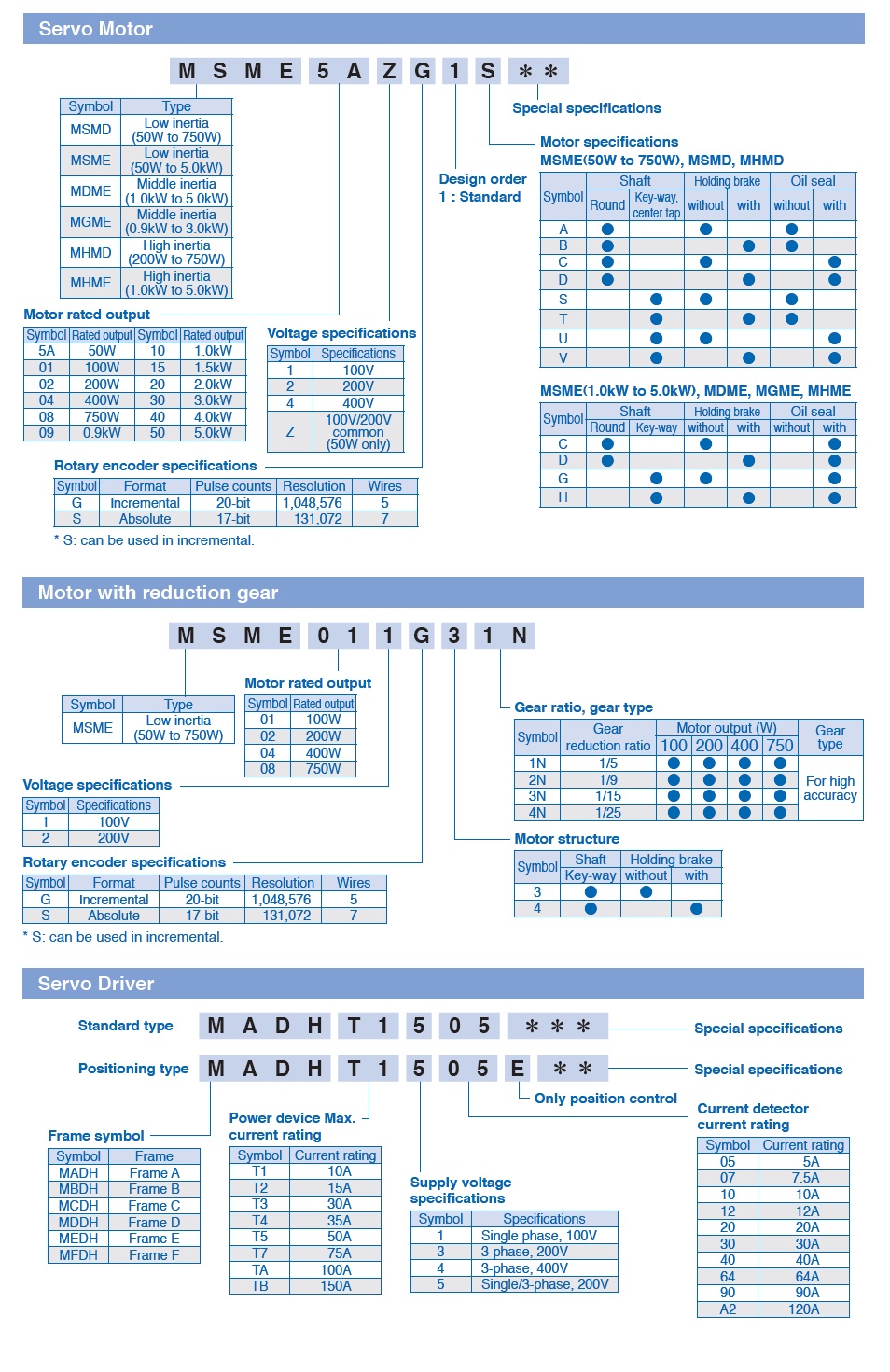

Buying Guide
