Panasonic: AC Servo Motors (MGME A5 Series)

MGME-MINAS A5 Series (400V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-4.5

  • Rated Output (W): 0.9-3.0

  • Rated Torque (N.m): 8.59-28.7

  • Momentary Max. Peak Torque (N.m): 19.3-71.7

  • Rated Current (Arms): 3.8-11.3

  • Max. Current (Ao-p): 12-40

  • Rated Rotational Speed (r/min): 1000

  • Max. Rotational Speed (r/min): 2000

  • Static Friction Torque (N.m): 13.7-58.8 or more

  • Engaging Time (ms): 100-150 or less

  • Releasing Time (ms): 50 or less

  • Exciting Current (DC) (A): 0.79-1.4±10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Brake (kg): 6.7-20.0


Model No.: MGME094GCC, MGME094GCD, MGME094GCG, MGME094GCH, MGME204GCC, MGME204GCD, MGME204GCG, MGME204GCH, MGME304GCC, MGME304GCD, MGME304GCG, MGME304GCH, MGME454G1C, MGME454G1D, MGME454G1G, MGME454G1H, MGME604G1C, MGME604G1D, MGME604G1G, MGME604G1H


Catalog

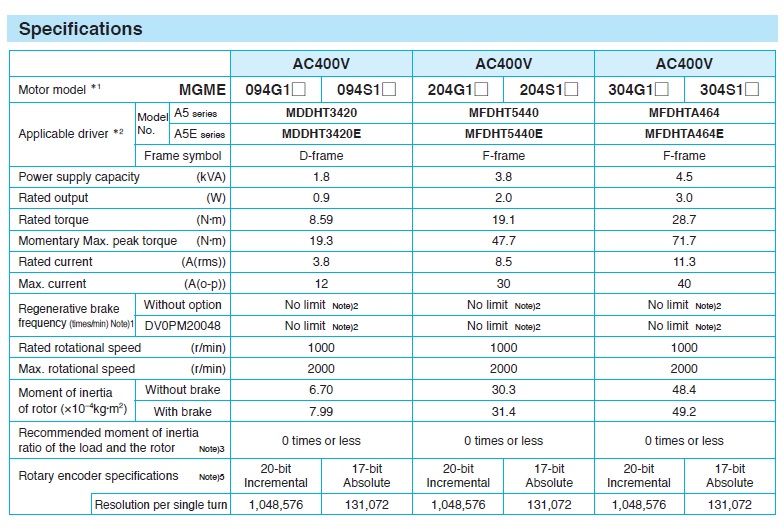

MGME Specs

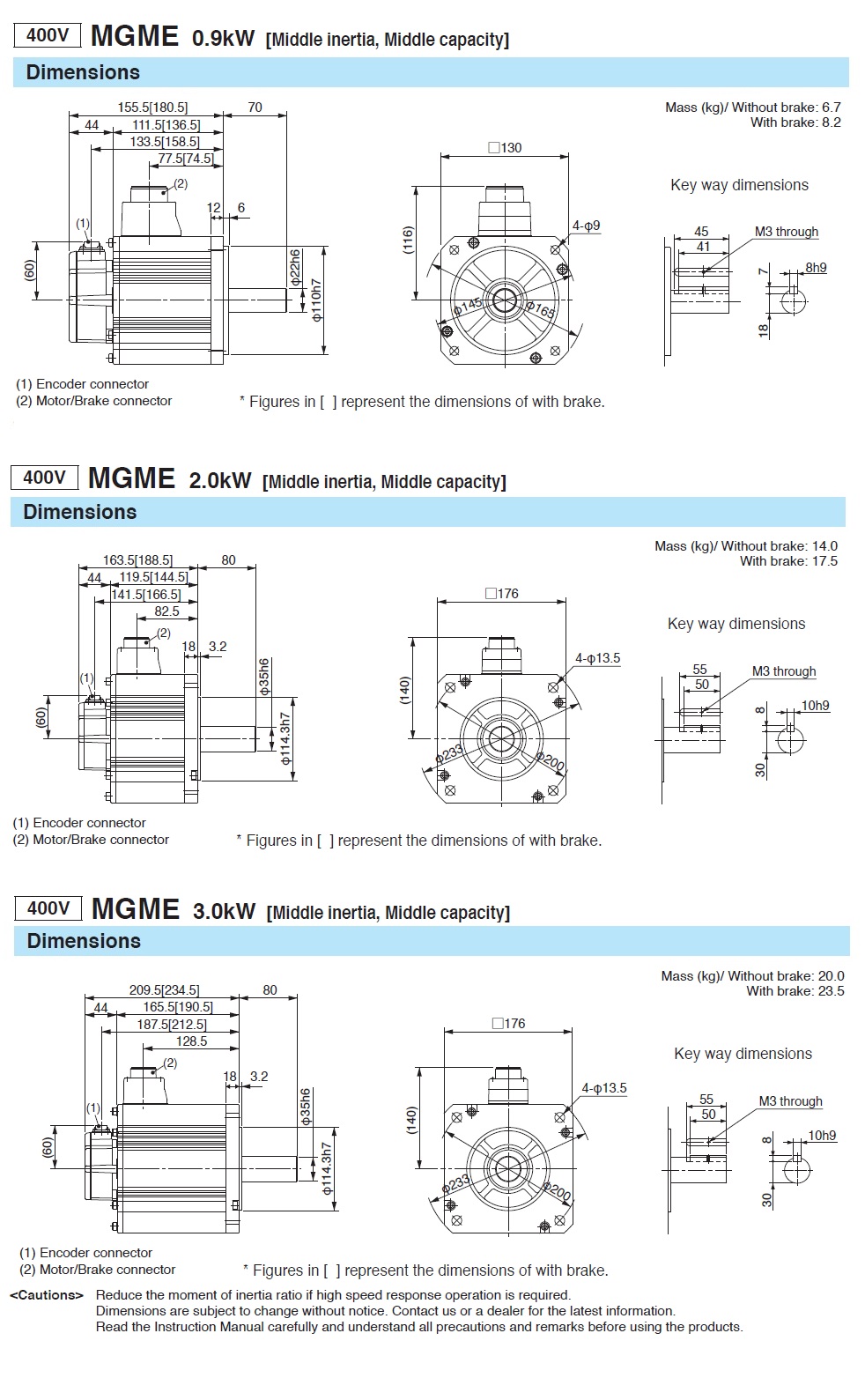

MGME CAD

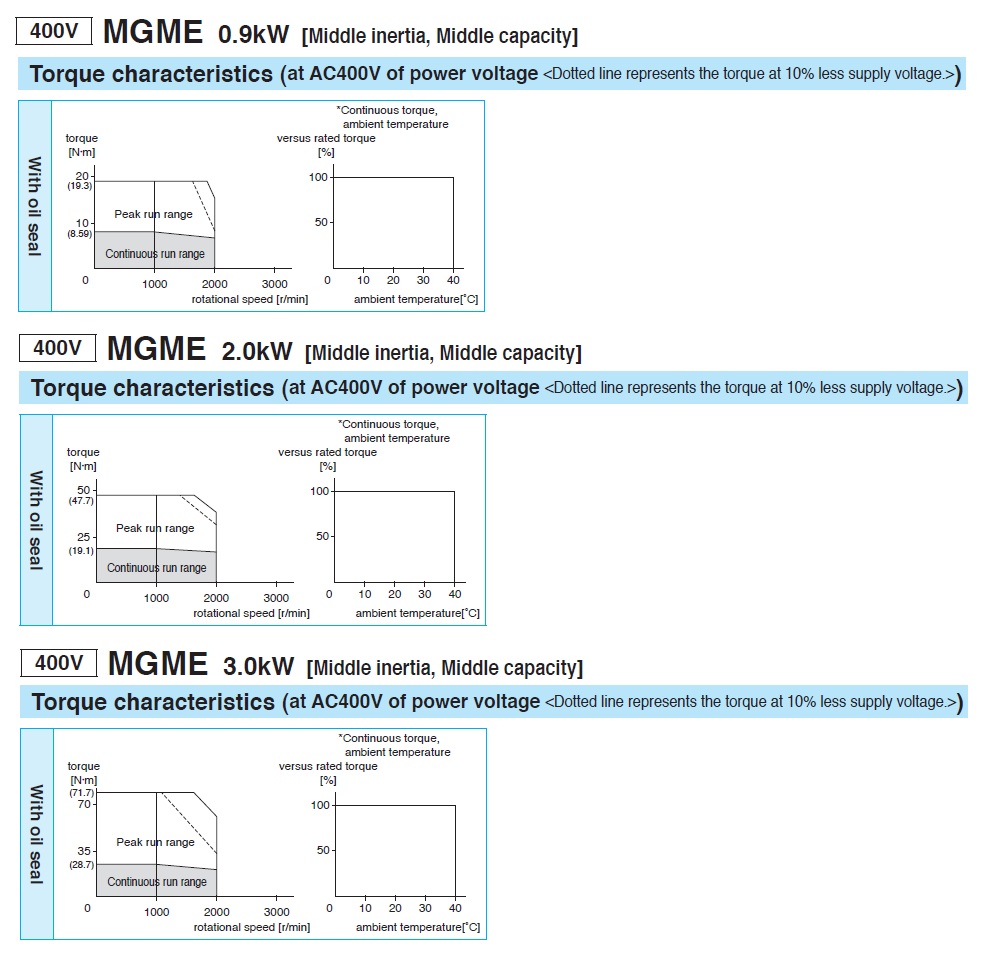

Torque Curves
