Delta: PC-Based Motion Solution - DMCNET Masters (MH1-S30D Series)

DMCNET is a high speed and real time communication system, capable of controlling up to 12 servo system units within 1ms simultaneously. It can accept double precision floating point values 64-bits wide and provide up to 1,280,000 pulse/rev resolution so the servo system can make accurate calculations and provide operation flexibility. 35 homing modes are provided. 12 servo system units or 4 groups, 3-axis helical and linear interpolation or 6 groups, 2-axis linear and arc interpolation can be implemented synchronously. It also supports absolute commands, incremental commands and T-curve / S-curve velocity profiles, built-in position, speed and torque control modes for different uses. Simply by connecting to servo motors, linear motors, digital inputs and outputs (DI/DO), analog inputs and outputs (AI/AO) and other control devices such as stepping motors and manual pulse generator (MPG), enabling fast and cost-effective communication and control is easy.

DMCNET is the best integrated platform for multi-axis and synchronous motion control in a wide range of machine tools and industrial applications. It is also the ultimate solution that provides effortless wiring, enhanced stability, flexible extension ability and versatile operation for industry upgrading and adding value to the products.

DMCNET Masters

DMCNET stands for Delta Motion Control Network. Delta's DMCNET is a high speed and real time communication system which supports the CANopen standard CiA 402, and provides a variety of motion control functions. DMCNET is the best integrated platform capable of providing high speed, high stability and high reliability for multi-axis and synchronous motion control in a wide range of industrial applications. It is also the ultimate solution that provides effortless wiring, enhanced stability, flexible extension ability and versatile operation for industry upgrading and adding value to products.

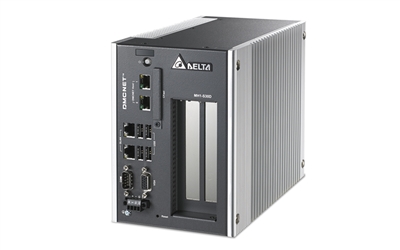

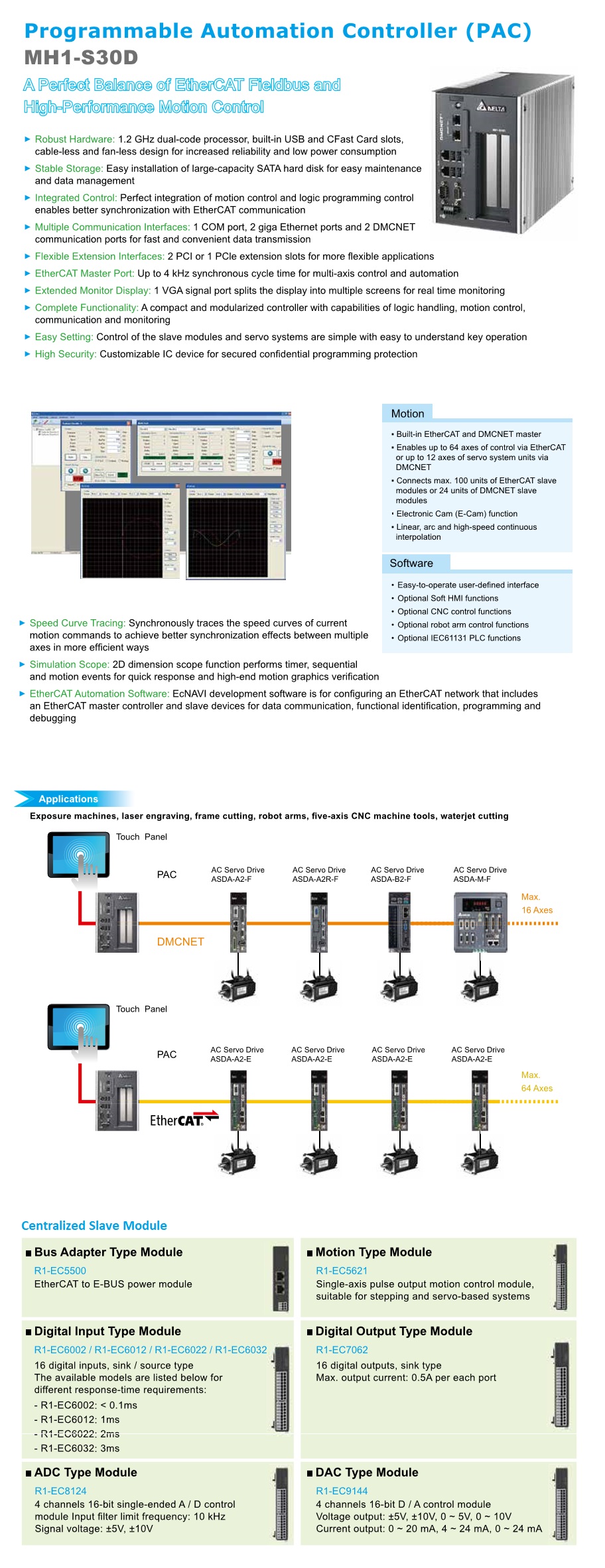

Programmable Automation Controller (MH1-S30D)

The MH1 Series supports Windows CE, Windows XP Embedded and Windows 7 Embedded operating systems and allows real-time applications running on OS's such as RTX Runtime. It also supports various software libraries for user selection.

Features:

Applications:
