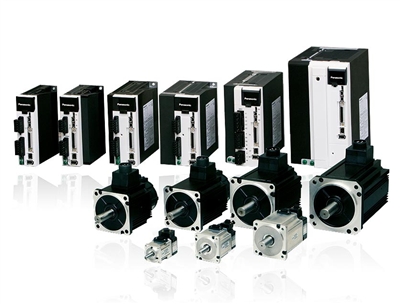

Panasonic: AC Servo Motors (MHME A5 Series)
Panasonic: AC Servo Motors (MHME A5 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MHME-A5


Model No.:


.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MHME A5 Series)

MHME-MINAS A5 series (400V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-7.5

  • Rated Output (W): 1.0-5.0

  • Rated Torque (N.m): 4.77-23.9

  • Momentary Max. Peak Torque (N.m): 14.3-71.6

  • Rated Current (Arms): 2.9-13.0

  • Max. Current (Ao-p): 12-55

  • Rated Rotational Speed (r/min): 2000

  • Max. Rotational Speed (r/min): 3000

  • Static Friction Torque (N.m): 4.9-24.5 or more

  • Engaging Time (ms): 80 or less

  • Releasing Time (ms): 25-70 or less

  • Exciting Current (DC) (A): 0.59-1.3±10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Break (kg): 6.7-23.0


Model No
.: MHME104GCC, MHME104GCD, MHME104GCG, MHME104GCH, MHME154GCC, MHME154GCD, MHME154GCG, MHME154GCH, MHME204GCC, MHME204GCD, MHME204GCG, MHME204GCH, MHME304GCC, MHME304GCD, MHME304GCG, MHME304GCH, MHME404GCC, MHME404GCD, MHME404GCG, MHME404GCH, MHME504GCC, MHME504GCD, MHME504GCG, MHME504GCH, MHME754G1C, MHME754G1D, MHME754G1G, MHME754G1H


Catalog

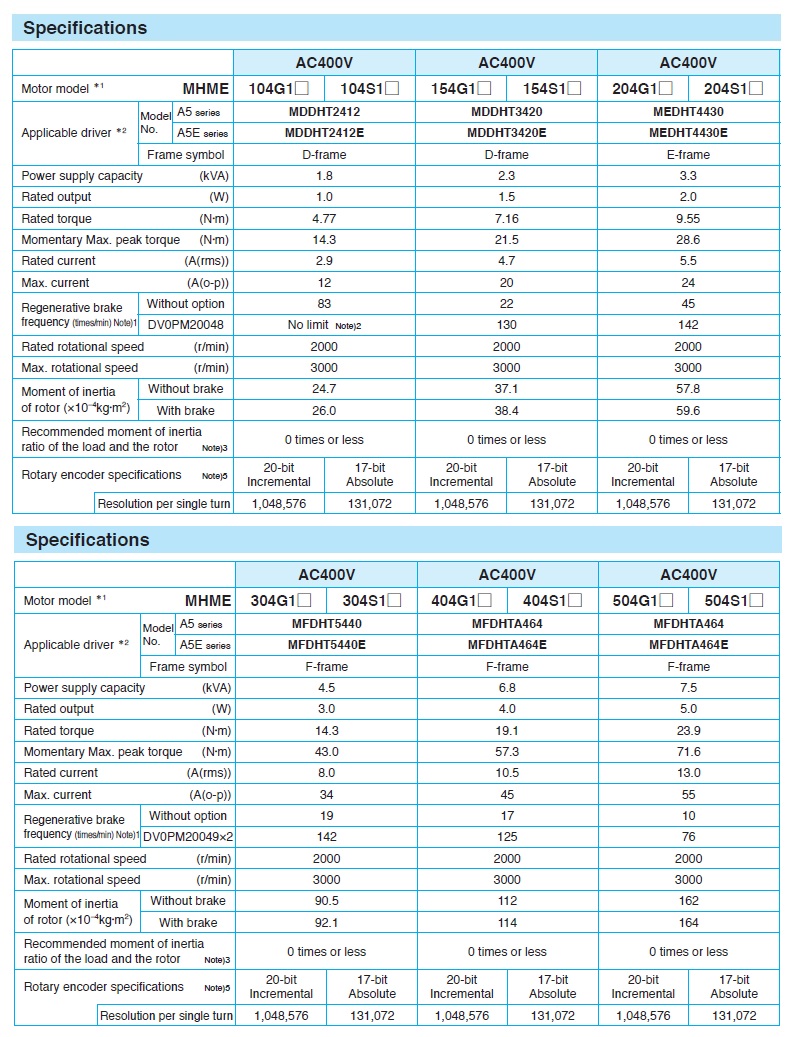

MHME Specs

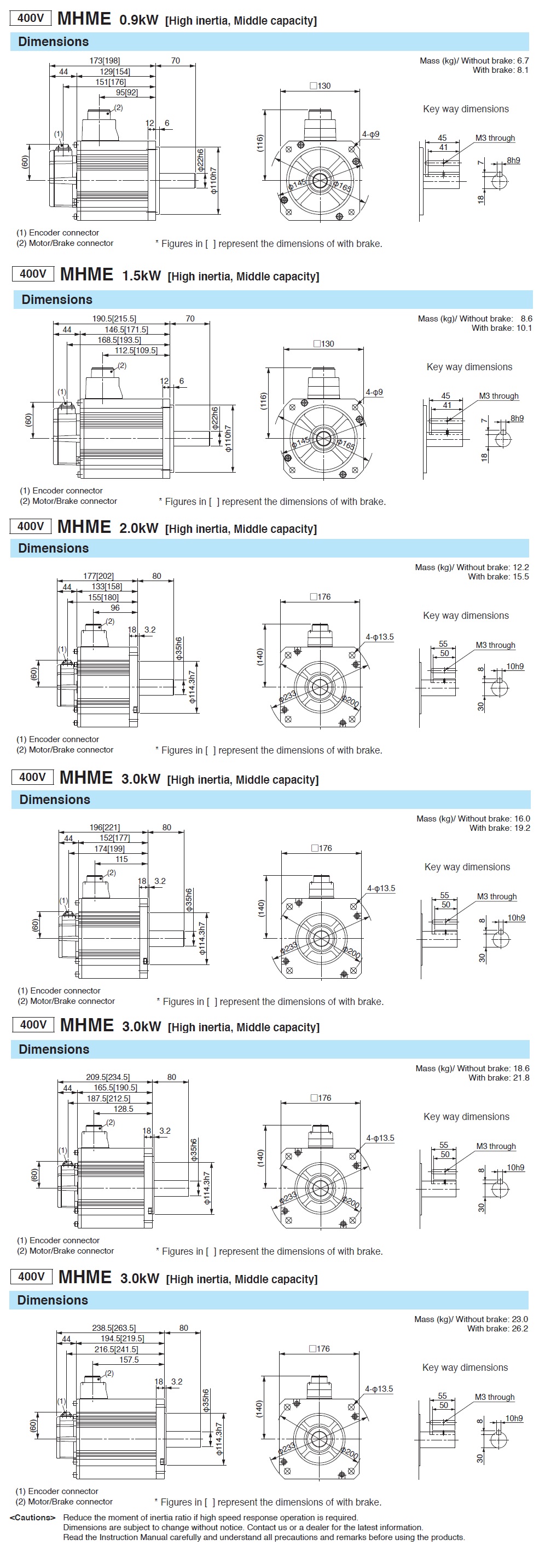

MHME CAD

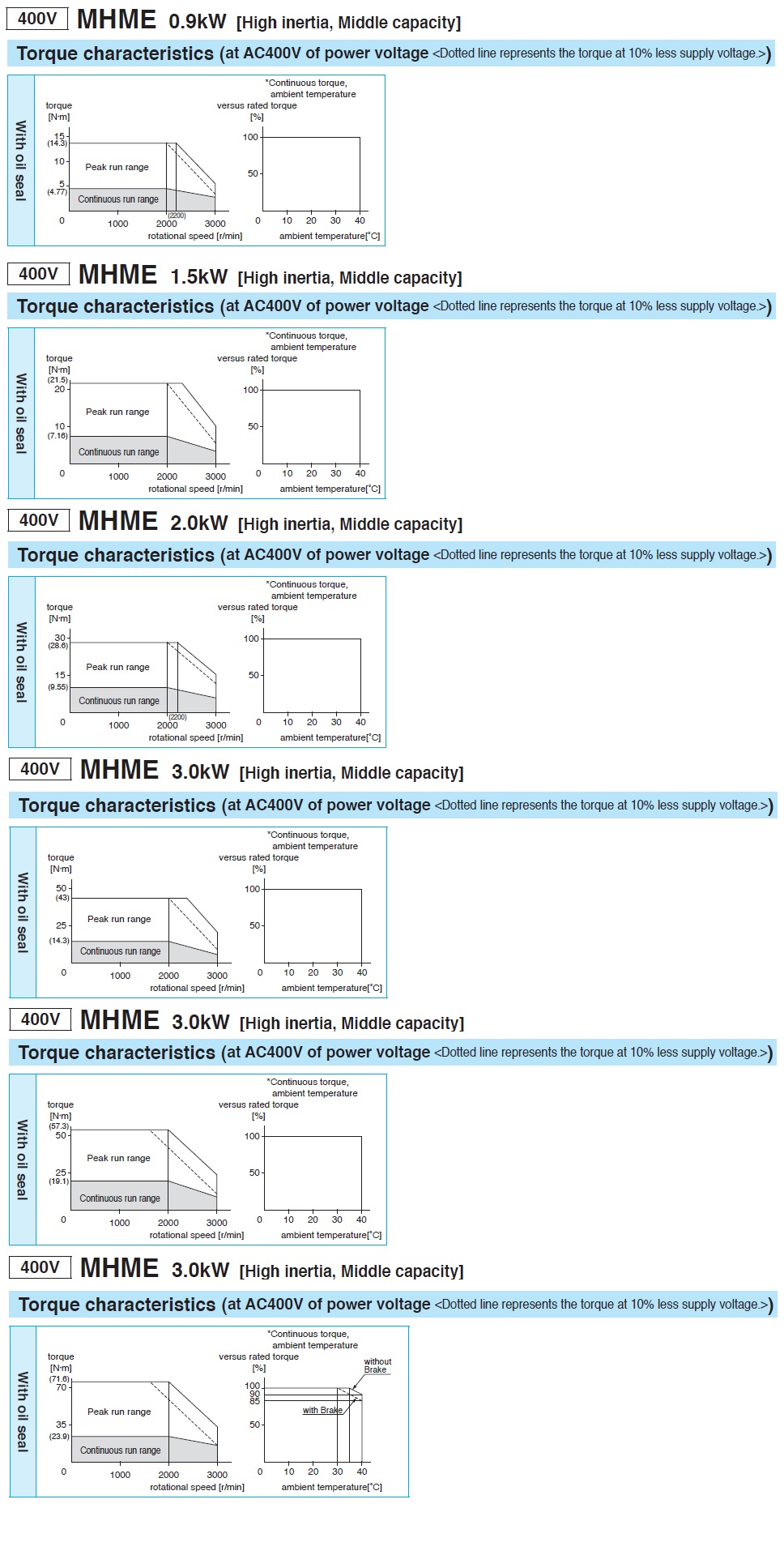

Torque Curves
