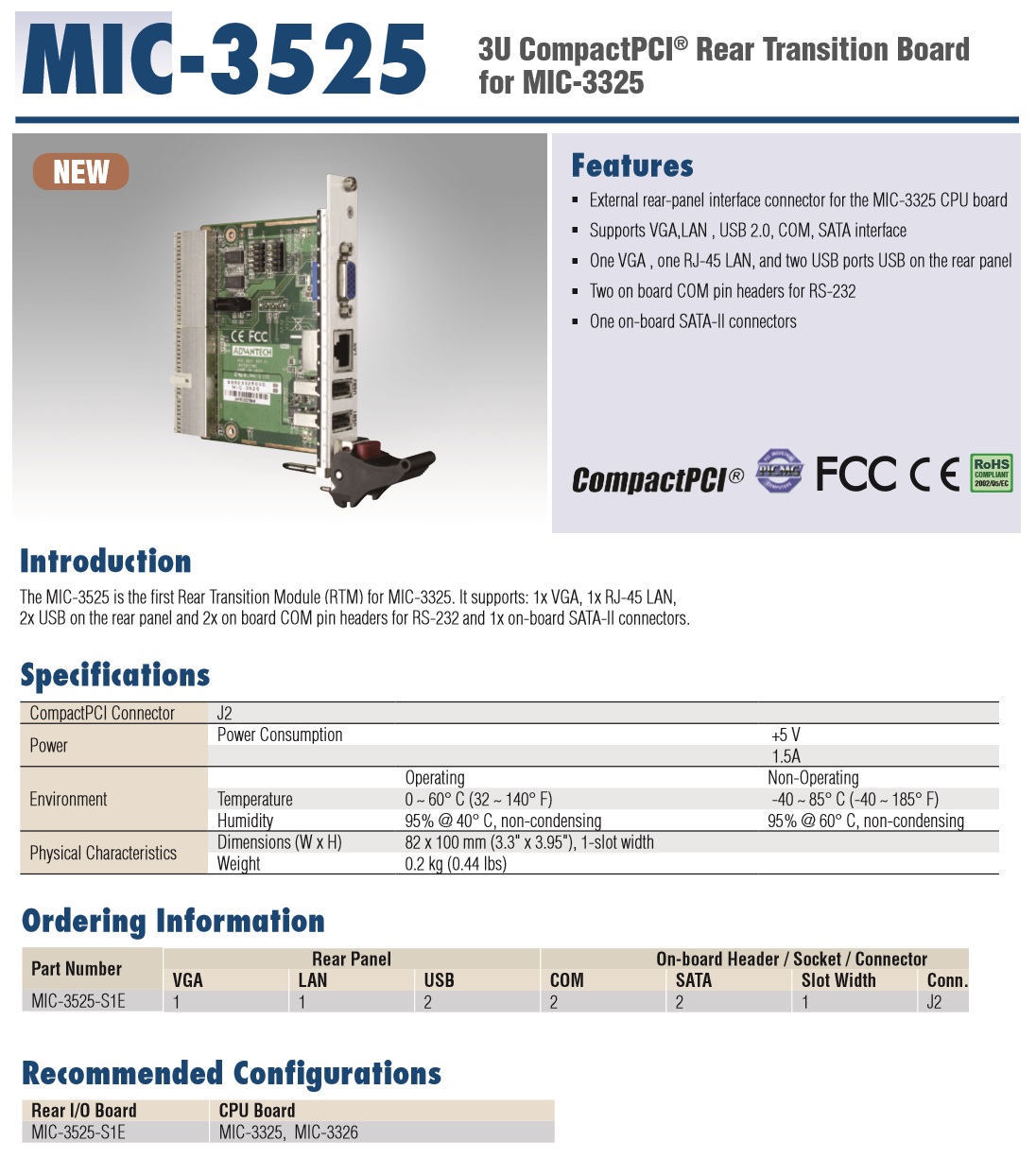

Advantech: I/O Boards (MIC-3525 Series)

3U CompactPCI® Rear Transition Board for MIC-3325. It supports: 1x VGA, 1x RJ-45 LAN, 2x USB on the rear panel and 2x on board COM pin headers for RS-232 and 1x on-board SATA-II connectors.

Advantech 3U CompactPCI Enclosures support CPCI platforms and CPCI chassis. We provide 3U CPCI I/O Board and CPCI I/O Rear Transition Module, which provide the low power and cost-effective performance, and with easier validation. Our MIC-3955 is a 3U CompactPCI 4-port RS-232/422/485 Communication Card. It supports working with 32bit 33MHz or 66MHz PCI frequency. The MIC-3525 is a Rear Transition Module (RTM) which supports: 1x VGA, 1x RJ-45 LAN, 2x USB on the rear panel and 2x on board COM pin headers for RS-232 and 1x on-board SATA-II connectors. Advantech’s 3U CPCI I/O Rear Transition Module and CPCI I/O Board are both ideal choices for workstation workloads in harsh environments and mission/business-critical applications.

Features:

  • External rear-panel interface connector for the MIC-3325 CPU board

  • Supports VGA,LAN , USB 2.0, COM, SATA interface

  • One VGA , one RJ-45 LAN, and two USB ports USB on the rear panel

  • Two on board COM pin headers for RS-232

  • One on-board SATA-II connectors
