Advantech: I/O Boards (MIC-3955 Series)
Advantech: I/O Boards (MIC-3955 Series)

Alternate View


Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MIC-3955


Model No.:


.

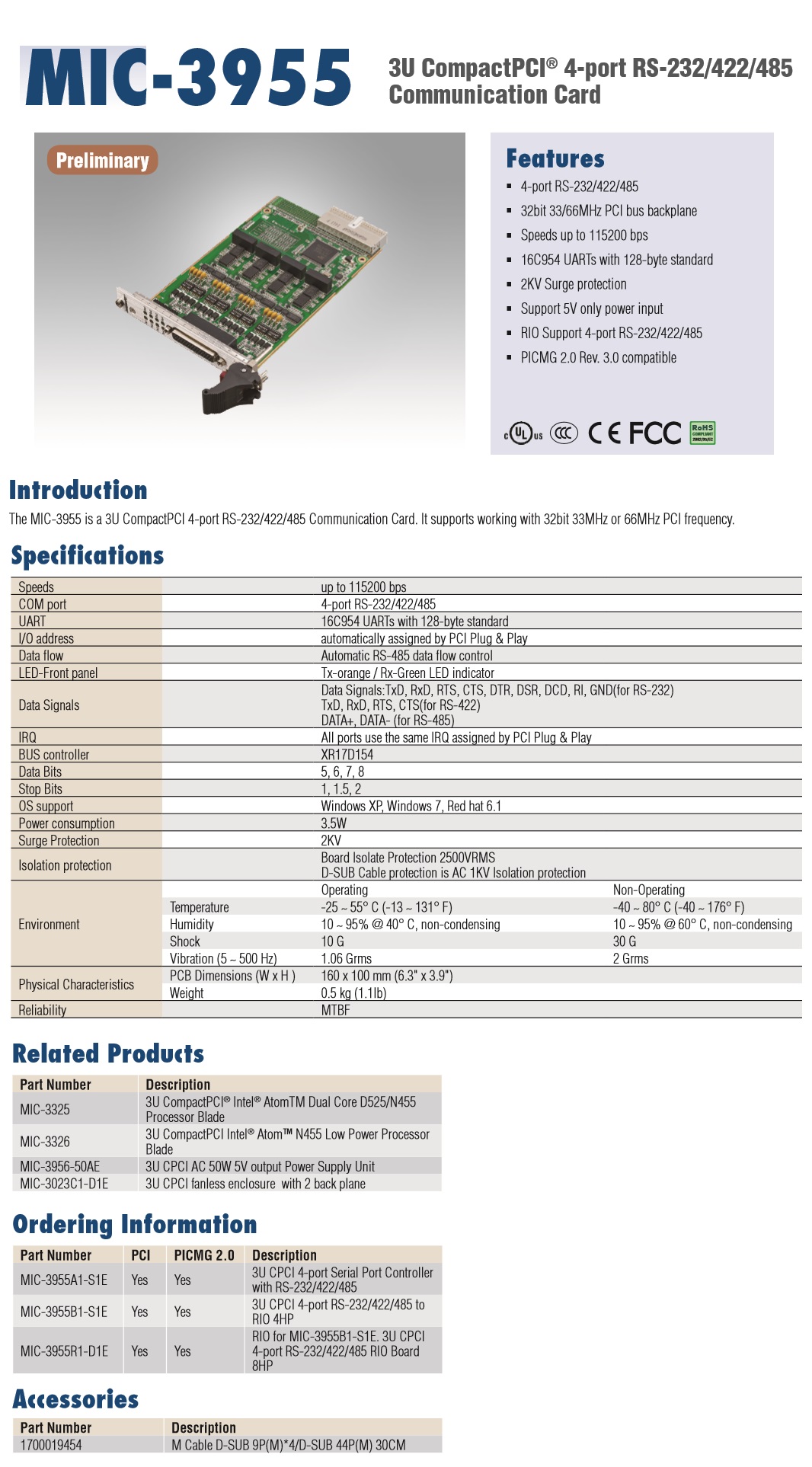

Description Specifications and Drawings

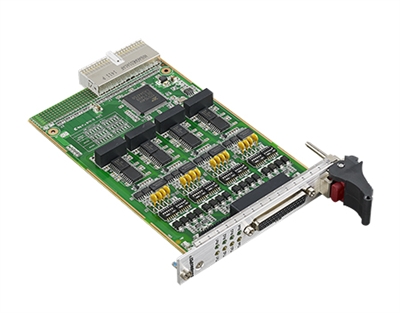

Advantech: I/O Boards (MIC-3955 Series)

3U CompactPCI® 4-port RS-232/422/485 Communication Card. It supports working with 32bit 33MHz or 66MHz PCI frequency.

Advantech 3U CompactPCI Enclosures support CPCI platforms and CPCI chassis. We provide 3U CPCI I/O Board and CPCI I/O Rear Transition Module, which provide the low power and cost-effective performance, and with easier validation. Our MIC-3955 is a 3U CompactPCI 4-port RS-232/422/485 Communication Card. It supports working with 32bit 33MHz or 66MHz PCI frequency. The MIC-3525 is a Rear Transition Module (RTM) which supports: 1x VGA, 1x RJ-45 LAN, 2x USB on the rear panel and 2x on board COM pin headers for RS-232 and 1x on-board SATA-II connectors. Advantech’s 3U CPCI I/O Rear Transition Module and CPCI I/O Board are both ideal choices for workstation workloads in harsh environments and mission/business-critical applications.

Features:

  • 4-port RS-232/422/485

  • 32bit 33/66MHz PCI bus backplane

  • Speeds up to 115200 bps

  • 16C954 UARTs with 128-byte standard

  • 2KV Surge protection

  • Support 5V only power input

  • RIO Support 4-port RS-232/422/485

  • PICMG 2.0 Rev. 3.0 compatible


Model No.: MIC-3955A1-S1E, MIC-3955B1-S1E, MIC-3955R1-D1E
