AutoVISION®: Machine Vision, Simplified. Designed for simplicity and ease of use, AutoVISION empowers manufacturers to implement inspection without any advanced knowledge of machine vision or automation technology. This family of intuitive software and smart cameras provides tools for decoding, error-proofing, quality control, verification, and more and comes equipped with the customizable CloudLink interface for monitoring inspection jobs from any web-enabled device. Portable and scalable across cameras, software platforms, industrial systems, and mobile devices, AutoVISION provides a single, adaptable vision system to simplify every inspection challenge. AutoVISION®: Intuitive software, 3-step setup, powerful inspection tools – no experience needed. MicroHAWK®: World's smallest machine vision cameras for auto ID to inspection. Vision MINI®: Miniature vision system. Vision HAWK®: Most flexible, industrial vision system.

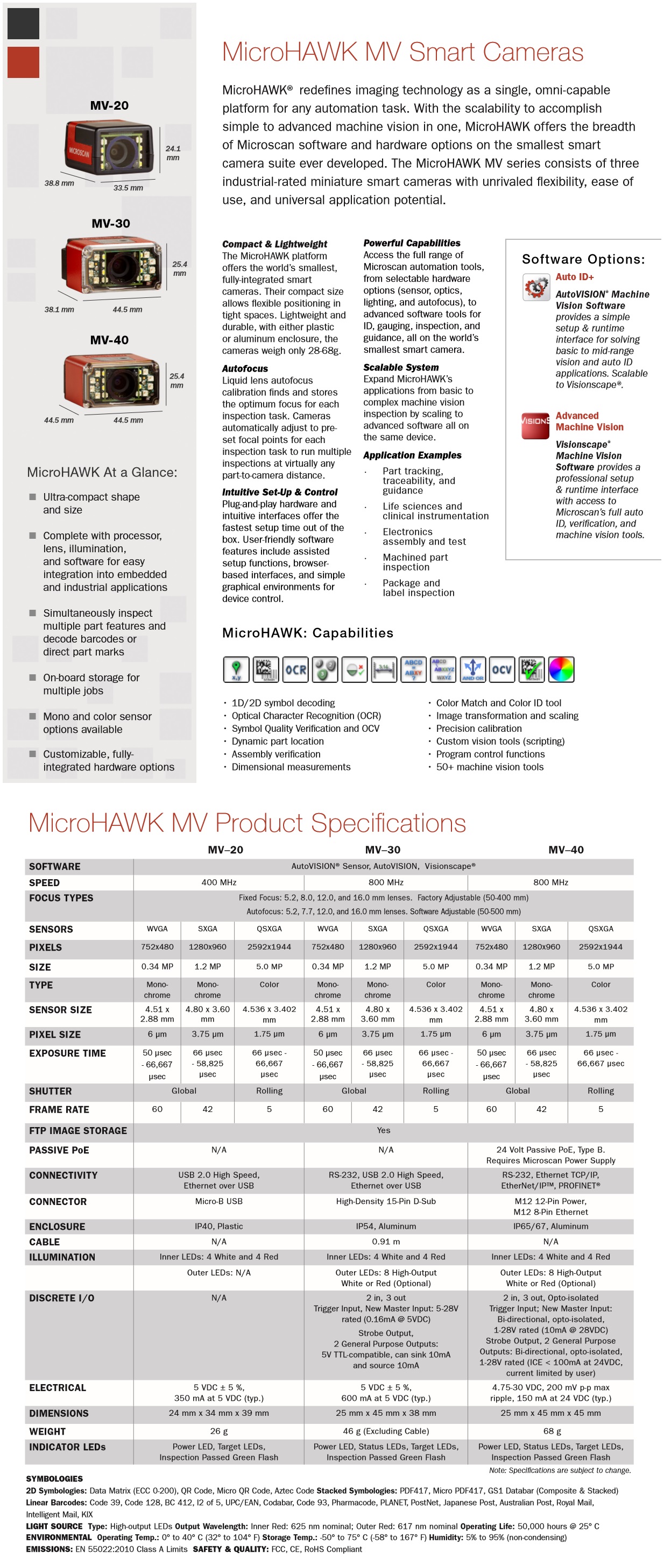

The smallest devices for advanced vision. One platform for auto ID to inspection. The MicroHAWK® platform offers the most advanced machine vision capability on the world's smallest smart cameras. Built on the highest-performance imaging engine in its class, MicroHAWK cameras are fully-integrated with optics, processor, lighting, and communications, offering an array of modular hardware options to take on any inspection task in three micro form factors. Paired with AutoVISION® simplified machine vision software (for barcode reading plus basic vision tasks like locate, count, presence/absence, OCR, and more) scalable to Visionscape® software for advanced applications, MicroHAWK is unrivaled in the industry for performance in its size, and flexibility to meet variety of application requirements and user experience levels.
Choose your software experience from Auto ID+ to complete machine vision inspection, plug and power, and instantly perform out of the box. Widest Range of Feature Options: Sensor: WVGA, SXGA or QSXGA Lens: Standard or High-Density Focus: Fixed or Autofocus Speed: Up to 800 MHz Lighting: Inner/Outer; Red or White LEDs
MV-20: OEM Smart Camera
The world’s smallest full-featured and fully-integrated smart camera, MV-20 offers OEMs and engineers a perfect set of value and performance options in a tiny, simple, enclosed solution for embedded designs for traceability and inspection. MV-20 offers a single-cable solution that uses USB for both communication (USB 2.0 High Speed and Ethernet over USB) and power to enable plug-and-play integration. Mini is now micro and incredibly easy to use. IP40 USB 2.0 High Speed Ethernet over USB 24 x 34 x 39 mm
MV-30: Miniature Serial/USB Smart Camera
A micro-sized smart camera with huge potential, the MV-30 furthers Microscan’s 30+ year legacy of innovative, space-efficient, miniature design with a corner-exit cable and high-density 15-pin connector (offering serial, USB 2.0 High Speed, and Ethernet over USB capabilities) as well as optional liquid lens autofocus. Perfect for OEMs and machine builders, the MV-30 offers the perfect combination of size, performance, and flexible integration. IP54 Serial RS-232 USB 2.0 Ethernet over USB Autofocus Corner-exit cable
MV–40: Industrial Ethernet Smart Camera
The MV-40 redefines the imaging market as the smallest IP65/67-rated, true-industrial Ethernet smart camera. With the library of Microscan's machine vision tools on board in a rugged, ultra-compact case, the MV-40 is the complete package for solving any vision inspection challenge under any condition. Combining unprecedented ease-of-use, high-speed communication, optional liquid lens autofocus, and ultra-small form factor, the MV-40 sets the benchmark as the ultimate compact machine vision system in the industry. IP65/67 EtherNet/IP™ Ethernet TCP/IP PROFINET® Autofocus PoE
MicroHAWK MV-20 Application Examples:
Sub-assembly tracking and traceability Error-proofing and assembly verification Alignment and position of components
MicroHAWK MV-30 Application Examples
Print and label quality verification Label position and presence Optical Character Recognition (OCR) Cap presence Fill level detection Package integrity and aesthetic
Sub-assembly tracking and traceability Error-proofing and assembly verification Alignment and position of components
MicroHAWK MV-40 Application Examples
Assembly line manufacturing Component tracking and inspection Print and label quality verification Label position and presence Optical Character Recognition (OCR) Cap presence Fill level detection Package integrity and aesthetic
Sub-assembly tracking and traceability Error-proofing and assembly verification Alignment and position of components
|
|
|
 |
|
 |
|
