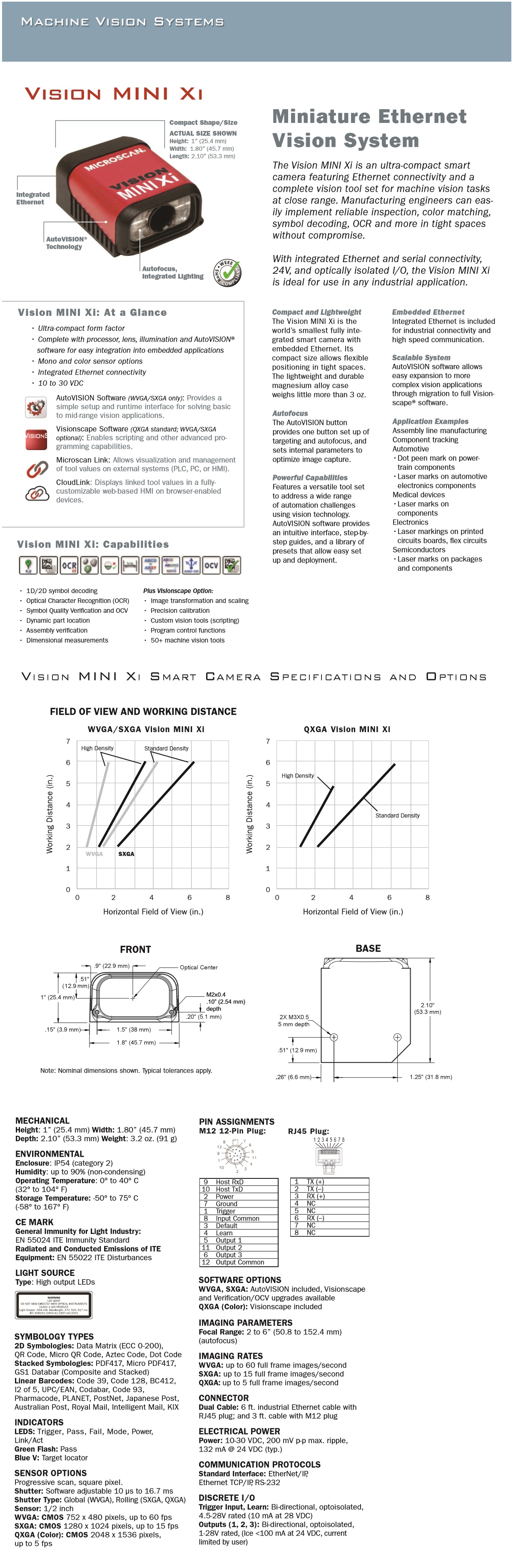

Vision MINI Xi Smart Camera Ultra-compact form factor OEM-ready for easy installation Integrated Ethernet connectivity, 10 to 30 VDC Complete with processor, autofocus lens, and illumination Simplified Programming with AutoVISION® Advanced Programming with Visionscape®
The Vision MINI Xi is an ultra-compact smart camera featuring Ethernet connectivity and a complete vision tool set for machine vision tasks at close range. Manufacturing engineers can easily implement reliable inspection, color matching, symbol decoding, OCR and more in tight spaces without compromise.
With integrated Ethernet and serial connectivity, 24V, and optically isolated I/O, the Vision MINI Xi is ideal for use in any industrial application.
World's Smallest: The Vision MINI Xi is the world’s smallest fully integrated smart camera with embedded Ethernet. Its compact size allows flexible positioning in tight spaces. The lightweight and durable magnesium alloy case weighs little more than 3 oz.
Powerful Capabilities: Features a versatile tool set to address a wide range of automation challenges using vision technology. AutoVISION software provides an intuitive interface, step-by-step guides, and a library of presets that allow easy set up and deployment.
Embedded Ethernet: Integrated Ethernet is included for industrial connectivity and high speed communication.
Autofocus: The AutoVISION button provides one button set up of targeting and autofocus, and sets internal parameters to optimize image capture.
Scalable System: AutoVISION software allows easy expansion to more complex vision applications through migration to full Visionscape® software. Vision MINI Xi Smart Camera: Capabilities Image transformation and scaling Precision calibration Custom vision tools (scripting) Program Control functions 50+ machine vision tools
Height: 1” (25.4 mm) Width: 1.80” (45.7 mm) Depth: 2.10” (53.3 mm) Weight: 3.2 oz. (91 g)
Progressive scan, square pixel. Shutter: Software adjustable 10 μs to 16.7 ms Shutter Type: Global (WVGA), Rolling (SXGA, QXGA) Sensor: 1/2 inch WVGA: CMOS 752 x 480 pixels, up to 60 fps SXGA: CMOS 1280 x 1024 pixels, up to 15 fps QXGA (Color): CMOS 2048 x 1536 pixels, up to 5 fps
WVGA, SXGA: AutoVISION included, Visionscape upgrade available QXGA (Color): Visionscape included
Assembly line manufacturing
|
|
|
 |
|
 |
|
