JVL: Intelligent Motors (MIS43x Series)
The basic idea in the MIS motors is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a typical problem when using long cables between controller and motor.
The stepper motor, hall sensor or encoder and electronics are specially developed by JVL so that they together form a closed unit where the power driver and controller is mounted inside the motor in a closed section.
The MIS motors can be delivered in sizes of 1.1 to 2.9Nm, the MIS231 to MIS234 range, 2.5 to 7.2Nm, the MIS340 to MIS342 motor, the MIS430 to MIS432, 10.0Nm to 25.0Nm.
Adapt your motor to your application with firmware
The JVL MIS Integrated Servo Motors can be delivered with different numbers of M12 connectors depending of the application. The MIS17x and MIS23x motors can be delivered with RS485 interface and PLC built-in and optional CANopen. MIS34x and MIS43x have RS485 and PLC built-in and optional Profinet, EtherCAT, Ethernet/IP, Powerlink or MODBUS TCP/IP interface.
All MIS motors have optional magnetic absolute encoder built-in and MIS34x and MIS43 have optional absolute multiturn encoder built-in.

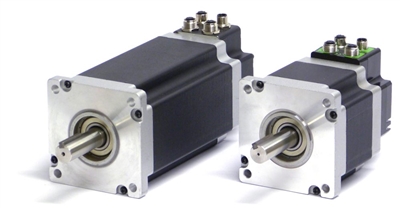

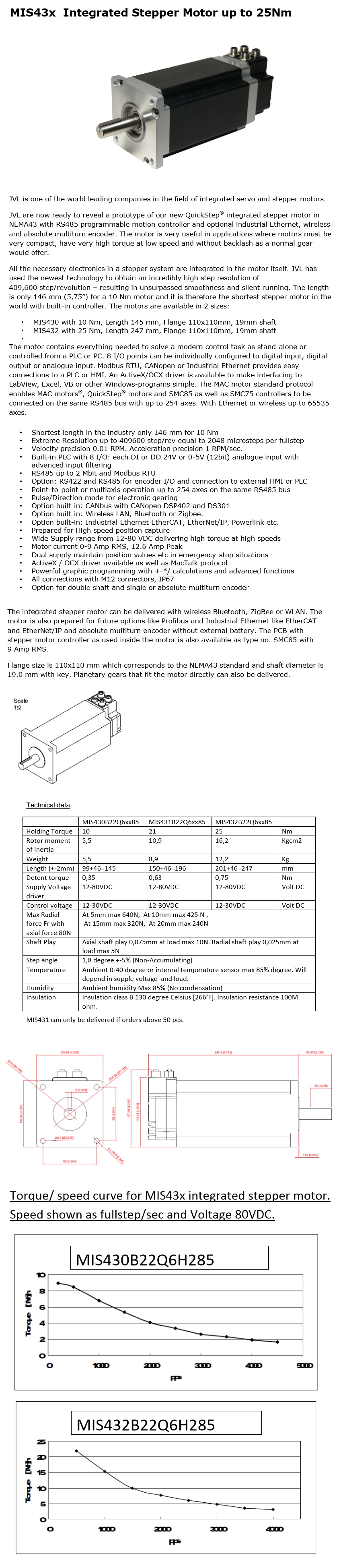

MIS43x - Integrated Stepper Motor
QuickStep, the Integrated Stepper Motors from JVL. A wealth of possibilities in a series of the world´s most compact stepper motors with the highest microstepping resolution. 2 sizes are available.
MIS430 - 10.0Nm
MIS432 - 25.0Nm
The QuickStep series of Stepper motors with integrated electronics represents a major step forward. All the necessary electronics in a stepper system are integrated in the motor itself.
The stepper motor, encoder and electronics are specially developed by JVL so that together they form a closed unit in which the power driver and controller are mounted inside the motor in a closed section with protection up to IP67.
Choose between wireless Bluetooth, WLAN or Zigbee or Industrial Ethernet Profinet, Ethernet/IP, EtherCAT, Powerlink, MODBUS TCP/IP, RS485 and PLC built-in are standard.
Note that the driver and controller are also available a separate unit - SMC85.
Model No.: MIS430, MIS432
