Moons: Super Smooth 3 Phase Stepper Motor (ML24HC Series) A stepper motor is an Open-loop control element which converts electrical pulse signals into angular or linear displacements, By controlling the sequence, frequency and quantity of electrical pulses working on the motor coils, we can achieve the control for the velocity, rotation and rotation angle of a stepper motor. Matching with linear motion executive module or gear box device, it will satisfying more complicated and precise linear motion controlling demands. Due to our professional technology and experience in designing, developing, manufacturing, and marketing of stepper motors, MOONS' supplies abundant stepper motor products series, with different phases and step angle for your selection. Each of the series has its unique advantages and characteristics, in order to meets the demands of different customers and different applications.
MOONS' Step Motor Advantage
Included are a number of improvements in performance and value: Many refinements that increase torque by an average of 20% Complete range of sizes: 8, 11, 14, 16, 17, 23, 24, 34, 42 Size 17 and larger 2 phase motors are UL recognized 0.9 degree 2 phase motors, and 3 phase motors for extra smooth, quiet, performance PowerPlus technology: for maximum efficiency and performance at all speeds Lower inertia rotors provide faster acceleration High voltage insulation for use with high voltage, high performance drives Low loss stators have better high speed performance Standard windings with high fill for more torque
Ultra Smooth Hybrid Stepper Motors
MOONS' Encapsulated Motors: New materials, improved manufacturing processes and the use of large-size bearing design, makes these motors have a higher precision, more stable mechanical strength, which can withstand greater axial load and radial load, at the same time effectively improving the motor life. All above can effectively control vibrations and reduce noises, which also make the motor run smoothly. 3-phase HB stepper motors: Same as encapsulated motors, 3-phase stepper motor also has smaller step angle. The advantages of three phases inherently helps to reduce torque ripple and smooth motor performance. Compared to the 1.8 degree two phases motors, the low speed torque is somewhat less. But through the design improvements introduced by MOONS’, has minimized this differences. High speed torque can also be comparable. An example of a good application for three phase motors is in performance lighting. These spotlights lights need quick movement, and quiet operation so as not disturb the performance.

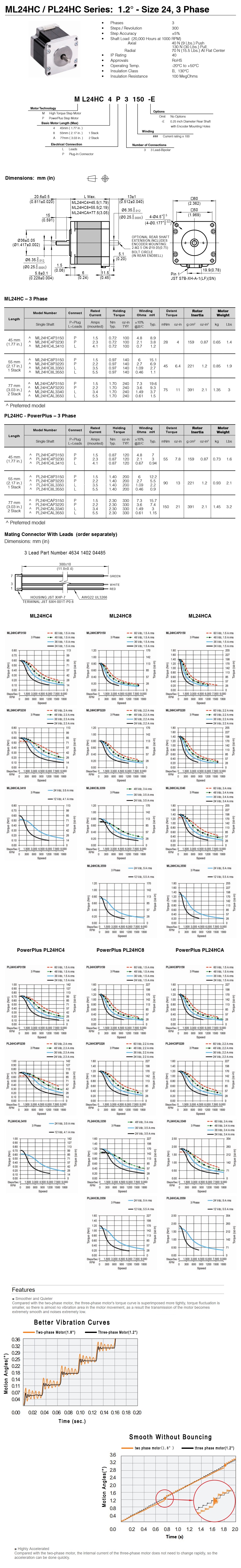

Electrical Specifications
Phase: 3 Steps/ Revolution: 300 Step Angle: 1.2° Step Accuracy: ±5% Insulation Class: B, 130℃ Insulation Resistance: 100 MegOhms Axial Load: 40N (9 Lbs.) Push, 130N (30 Lbs.) Pull Radial Load: 70N (15.5 Lbs.)At Flat Center Operating Temp.: -20℃～50℃
IP Rating: IP 40 Approvals: RoHS
With years of expertise and experience in the design, development, manufacturing and marketing of hybrid stepper motors, MOONS' provides a wealthy customized services, therefore, you can find suitable solutions for any special demands here.
Model No.: ML24HC4L3410, ML24HC4P3150, ML24HC4P3230, ML24HC8L3350, ML24HC8L3550, ML24HC8P3150, ML24HC8P3220, ML24HCAL3340, ML24HCAL3550, ML24HCAP3150, ML24HCAP3220
|
|
|
 |
|
 |
|
