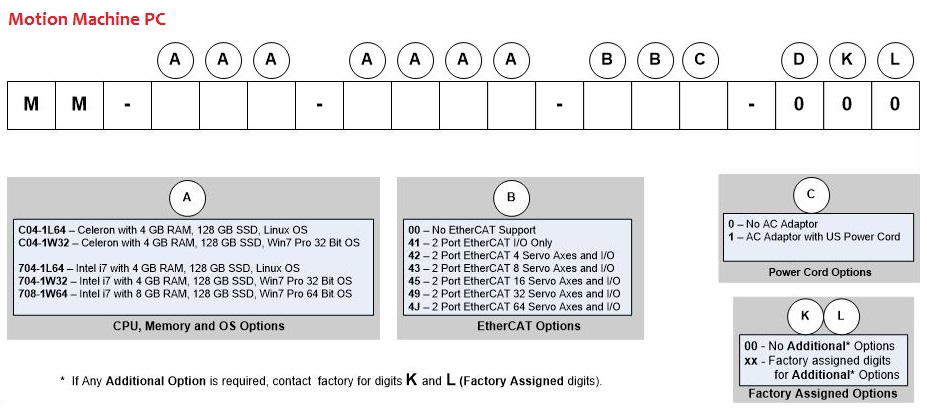

Order #: MM-XXX-XXXX-XXX-000
.

Description Specifications and Drawings


Delta Tau: Motion Machine PC

The Motion Machine PC comprises a Linux- or Windows-based PC running the Power PMAC kernel. This offers all of the intelligence, power and capabilities of our Power PMAC controller with the convenience of running on familiar PC hardware, granting greater flexibility in application development. This product is ideal for distributed control networks controlled through EtherCAT and/or Modbus protocols.


Hardware Features:

  • EtherCAT

  • CoE Protocol Support for basic I/O and DS402 drives

  • Three display ports (DVI-I, Display Port, HDMI)

  • 128 GB solid state drive (SSD)

  • Four 100/1000 Base T Ethernet ports

  • Two ports dedicated to Windows/Linux LAN

  • Two ports dedicated to Motion Core (i.e. one EtherCAT and one Modbus)Six USB ports with two of the ports USB 3.0 capable in the i7 version

  • Two RS232/422/485 ports

  • No fan or internal cabling

  • Industrial aluminum casing

  • Small form factor 10” × 6” × 2.7”, DIN-rail wall mount

  • 9 – 36 VDC (+24 VDC @ 3 A) (Min 72 W) AT/ATX

  • CE, UL, CCC, FCC, C-TICK, BSMI certiGed

  • Two Mini PCIe Slots


Options:

  • Celeron with 4 GB RAM, 128 GB SSD, Linux OS

  • Celeron with 4GB RAM, 128 GB SSD, Windows 7 Pro 32-bit OS

  • Intel i7 with 4 GB RAM, 128 GB SSD, Linux OS

  • Intel i7 with 4 GB RAM, 128 GB SSD, Windows 7 Pro 32-bit OS

  • Intel i7 with 8 GB RAM, 128 GB SSD, Windows 7 Pro 64-bit OS

  • 2 Port EtherCAT I/O Only or I/O plus up to 64 Servo Axes
