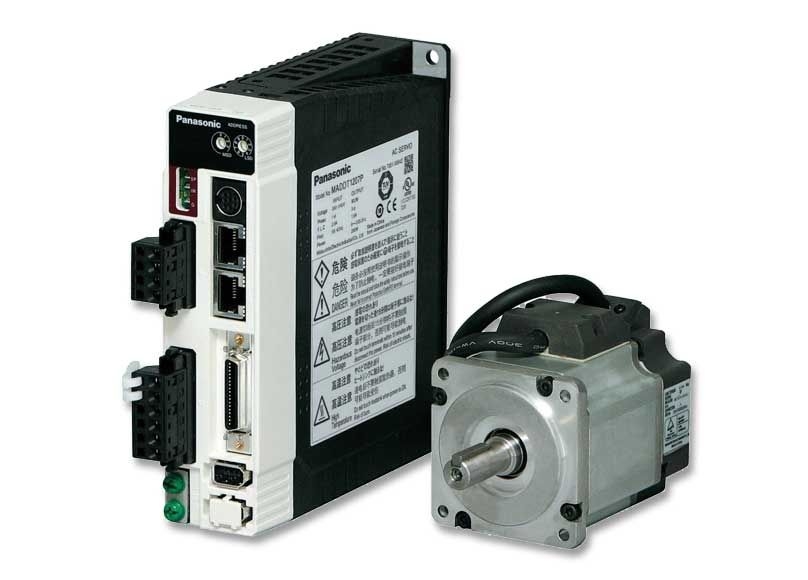

Panasonic: AC Servo Motors (MQMA A4 Series)
Panasonic: AC Servo Motors (MQMA A4 Series)


Price: (Members Only)


Order #: MQMA


Model No.:


.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MQMA A4 Series)

MQMA-MINAS A4 Series (100-200V)


Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Power Supply Capacity (kVA): 0.4-1.0

  • Rated Output (W): 100-400

  • Rated Torque (N.m): 0.32-1.3

  • Momentary Max. Peak Torque (N.m): 0.95-3.82

  • Rated Current (Arms): 1.0-4.4

  • Max. Current (Ao-p): 6.9-18.6

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 5000

  • Static Friction Torque (N.m): 0.29-1.27

  • Engaging Time (ms): 50-60

  • Releasing Time (ms): 15

  • Exciting Current (DC) (A): 0.29-0.41

  • Releasing Voltage: DC1V or more

  • Exciting Voltage: DC 24 V ± 5%, DC 24 V ± 10%,

  • Mass without Brake (kg): 0.65-1.9


Model No.:
MQMA011P1, MQMA011S1, MQMA012P1, MQMA012S1, MQMA021P1, MQMA021S1, MQMA022P1, MQMA022S1, MQMA041P1, MQMA041S1, MQMA042P1, MQMA042S1


Catalog

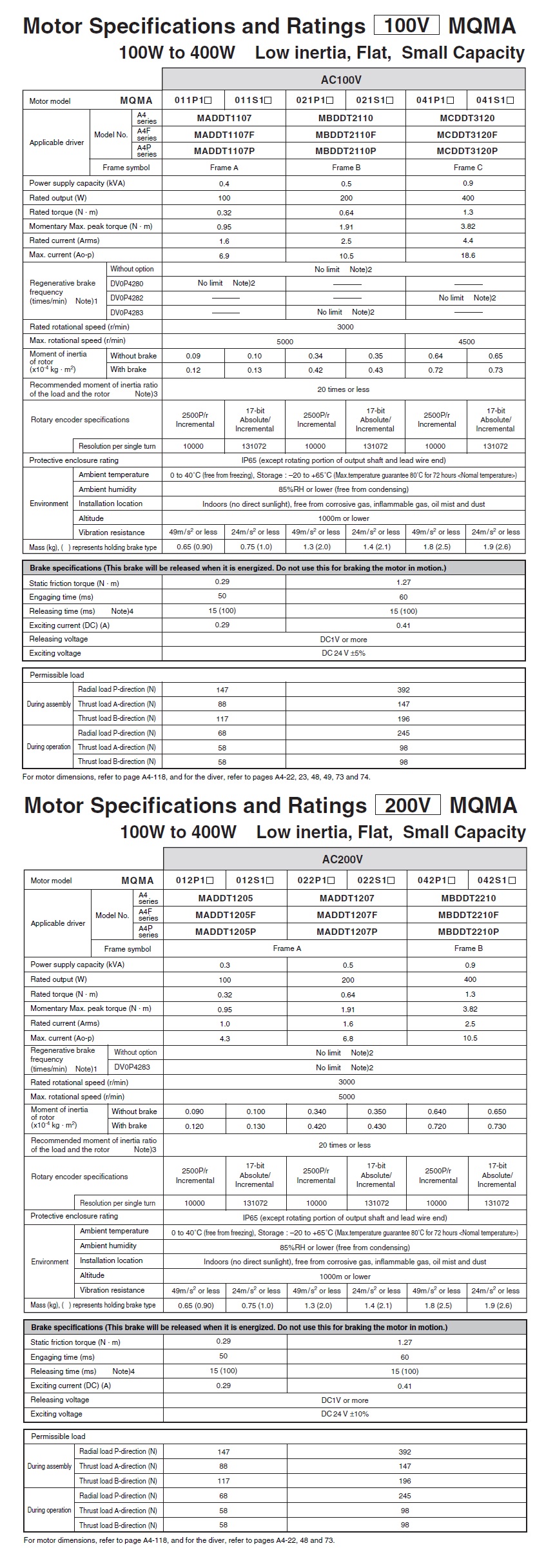

MQMA Specs

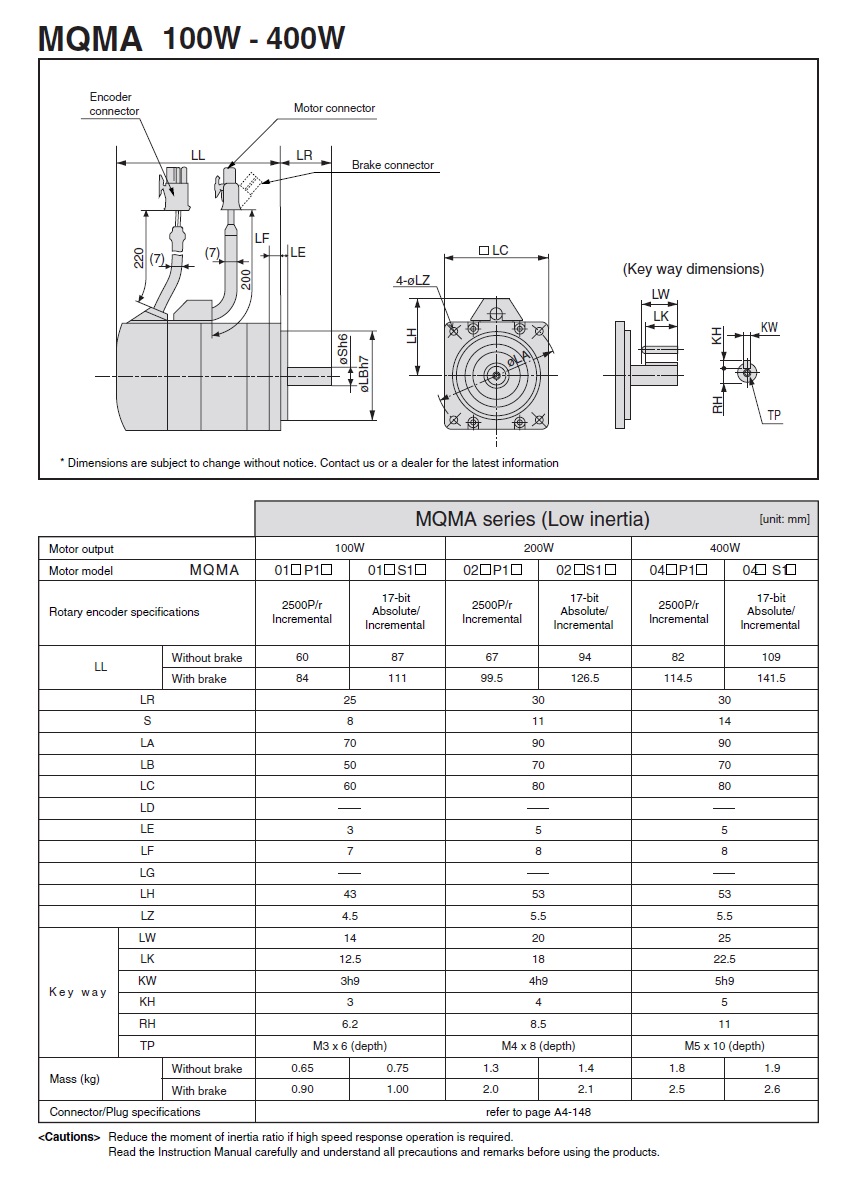

MQMA CAD

Wiring Diagram (1) (2)

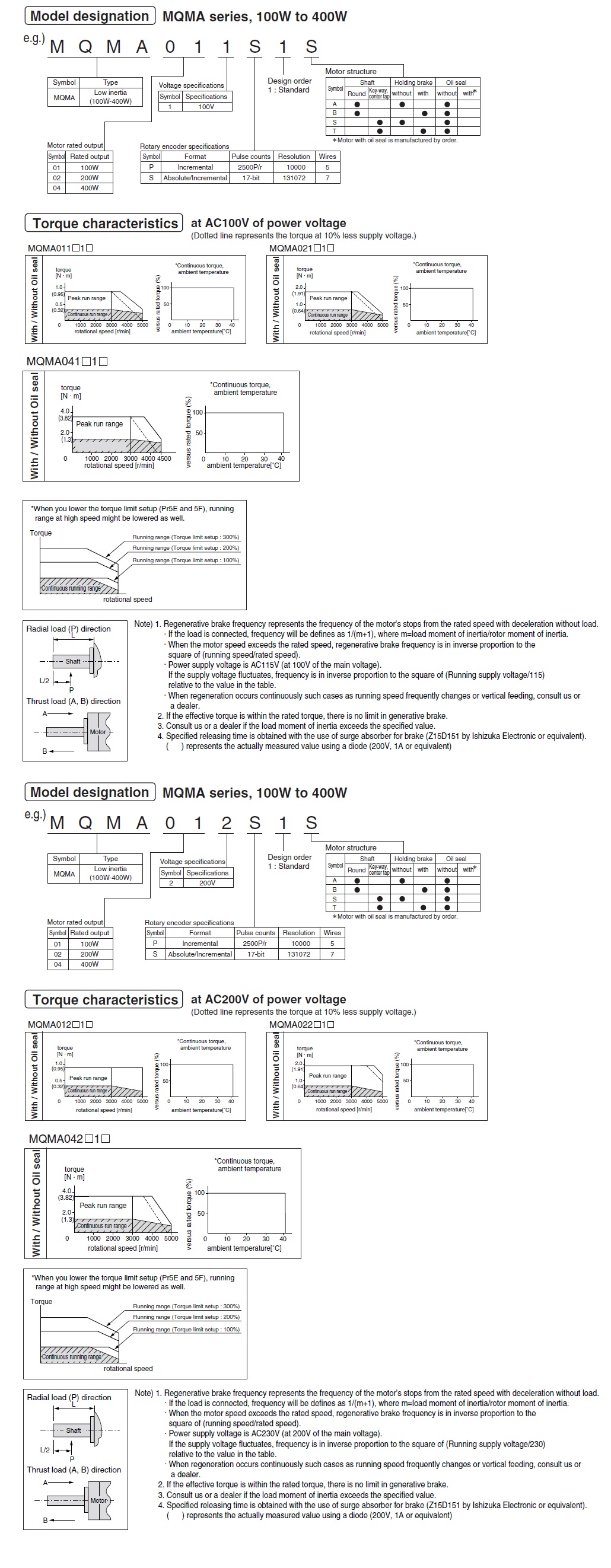

Buying Guide
