RSF Elektronik: Exposed Linear Encoder (MS 2x Series)
RSF Elektronik: Exposed Linear Encoder (MS 2x Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MS-2X


Model No.:

.

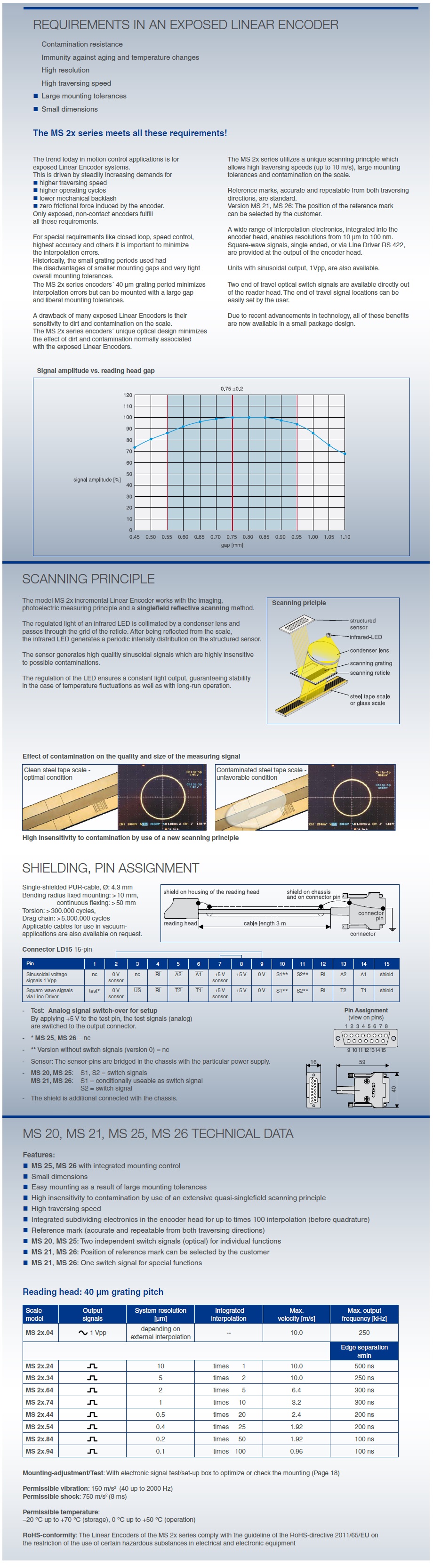

Description Specifications and Drawings


RSF Elektronik: MS 2x Series

(Open Linear Encoders with non-contact singlefield scanning)

Fields of Application:

Escalating market demand in terms of processing speed, operating cycles and mechanical backlash, together with the requirement that there should be no mechanical influences necessitates the provision of high-precision open linear measurement systems. The scale and reading head must be protected against soiling in this construction style. Open linear encoders are optimized for use in a "clean environment" (e.g. measuring machines, machines in electronics manufacture).

Performance Characteristics:

  • Non-contact optical scanning

  • No mechanical influence on the measurement slide

  • High measuring speed

  • High precision, small measuring increments

  • Reproducible thermal performance

  • Minimal space requirement

Typical Applications:

  • Measurement technology: Coordinate measuring machine, measuring microscope, presetting devices, video inspection

  • Electronics manufacturing: Circuit board assembly/ inspection / testing,screen-printing systems, LCD production

  • Semi-conductor production: Bonder

  • Linear drives

  • Rapid prototyping

  • Printer

  • Medical technology

  • Solar technology

Features:

  • Standard dimensions

  • System resolution: 2 µm - 0.1 µm

  • Indication of signal quality directly at the scanning head via 3-coloured LED (MS 25, MS 26, MS 28, MS 29)

  • Easy mounting without additional test box

  • Easy mounting as a result of large mounting tolerances

  • High insensitivity to contamination by use of an extensive single field scanning principle

  • Output signals: TTL, sinus 1 Vpp

  • Signal-immunity against aging and temperature changes

  • High traversing speed

  • Reference mark (accurate and repeatable from both traversing directions)

  • Integrated subdividing electronics in the encoder head: for up to times 100 interpolation (before quadrature)

  • Max. measuring length: 20 000 mm

  • Optional: Two independent switch signals (optical) for individual functions

  • Optional: Position of reference mark customizable

  • Optional: One switch signal for special functions

  • Grating pitch: 40 μm

  • Graduation substrate: Steel tape, Glass, glass ceramic


Model No.: MS 2x.04, MS 2x.24, MS 2x.34, MS 2x.44, MS 2x.54, MS 2x.64, MS 2x.74, MS 2x.84, MS 2x.94
