Infranor: DC Brush Servo Drives (MS Series)
Infranor: DC Brush Servo Drives (MS Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MS-XXXX


Model No.:

.

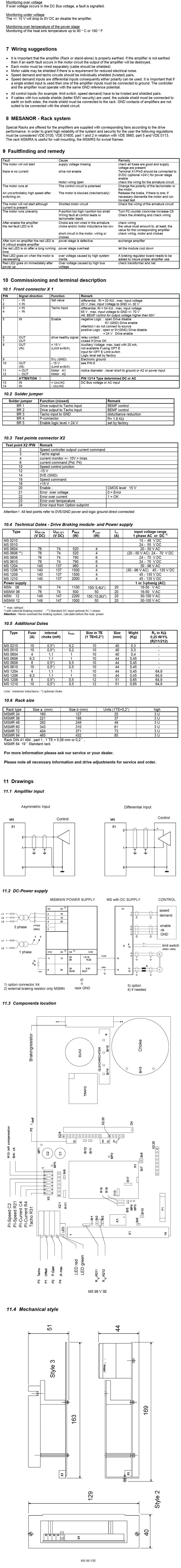

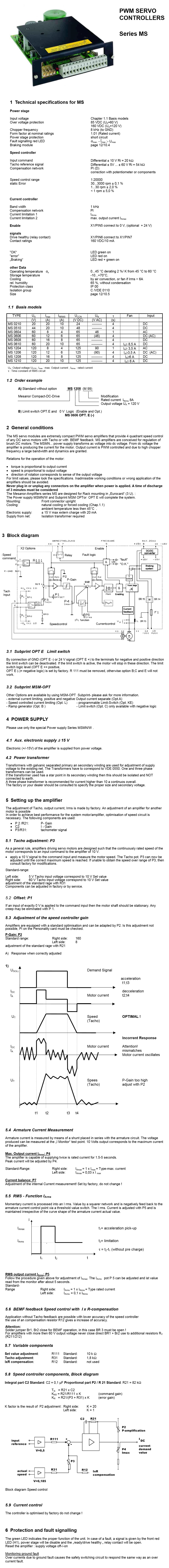

Description Specifications and Drawings

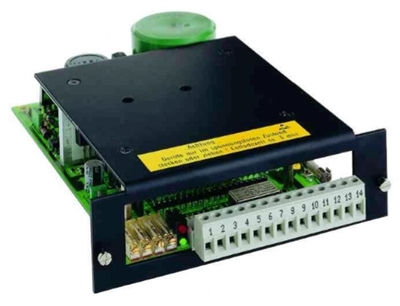

Infranor: DC Brush Servo Drives (MS Series)

MS servo modules are extremely compact PWM servo amplifiers that provide 4 quadrant speed control of any DC servo motors with Tacho or with BEMF feedback. MS amplifiers are conceived for regulation of brush DC motors. The MSMN... power supply transforms AC voltage into DC voltage. From DC voltage, the amplifier produces current for the motor. Output current is PWM controlled and due to high chopper frequency a large bandwidth and dynamics are granted.

Features

  • Internal power supply for controller electronics (± 15 V) and for supply of external components.

  • Armature current choke

  • 1 ph. rectifier for AC power supply up to Irms=4/6 A

  • Internal braking regulator

Specifications

  • Voltage (Input): 24VDC - 113 VAC

  • Current (Maximum): 2 - 30 Amp

  • Feedback (Type): Tach / BEMF


Model No.: MS 0210, MS 0510, MS 0604, MS 0606, MS 0608, MS 0610, MS 1204, MS 1206, MS 1208, MS 1210
