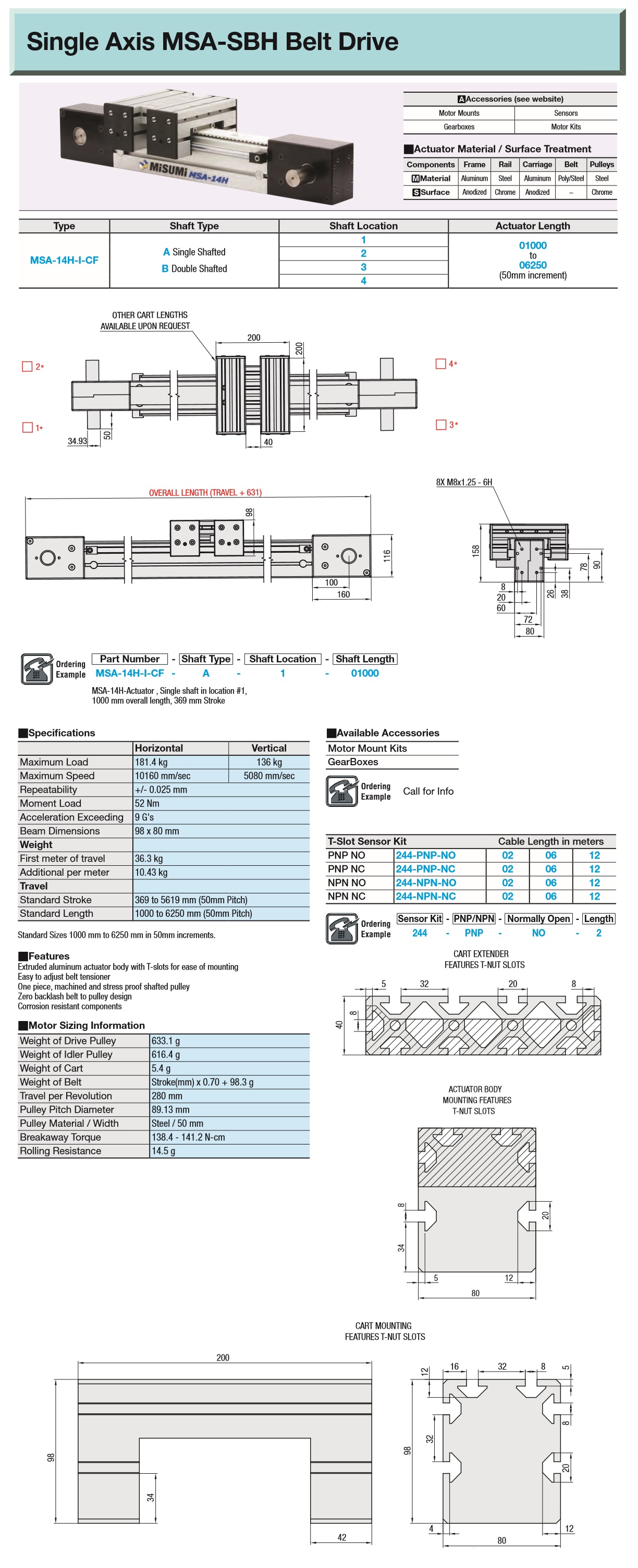

Description Specifications and Drawings

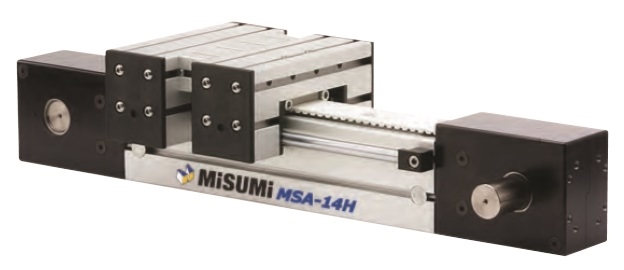

Misumi: Belt Drive Actuator (MSA-14H Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components

Specifications:

  • Maximum Load: 181.4 kg (Horizontal), 136 kg (Vertical)

  • Maximum Speed: 10160 mm/sec (Horizontal), 5080 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Moment Load: 52 Nm

  • Acceleration Exceeding: 9 G's

  • Beam Dimensions: 98 x 80 mm

  • Weight: 36.3 kg (First meter of travel), 10.43 kg (Additional per meter)

  • Standard Stroke: 369 to 5619 mm (50mm Pitch)

  • Standard Length: 1000 to 6250 mm (50mm Pitch)

  • Weight of Drive Pulley: 633.1 g

  • Weight of Idler Pulley: 616.4 g

  • Weight of Cart: 5.4 g

  • Weight of Belt: Stroke(mm) x 0.70 + 98.3 g

  • Travel per Revolution: 280 mm

  • Pulley Pitch Diameter: 89.13 mm

  • Pulley Material/Width: Steel / 50 mm

  • Breakaway Torque: 138.4 - 141.2 N-cm

  • Rolling Resistance: 14.5 g
