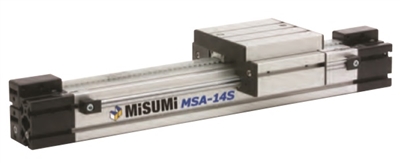

Misumi: Belt Drive Actuator (MSA-14S Series)
Misumi: Belt Drive Actuator (MSA-14S Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSA-14S
.

Description Specifications and Drawings


Misumi: Belt Drive Actuator (MSA-14S Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components


Specifications:

  • Maximum Load: 90.72 kg (Horizontal), 45.36 kg (Vertical)

  • Maximum Speed: 10160 mm/sec (Horizontal), 5080 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Moment Load: 26 Nm

  • Acceleration Exceeding: 9 G's

  • Beam Dimensions: 80 x 80 mm

  • Weight: 17.24 kg (First meter of travel), 8.85 kg (Additional per meter)

  • Standard Stroke: 311 to 5811 mm (50mm Pitch)

  • Standard Length: 750 to 6250 mm (50mm Pitch)

  • Weight of Drive Pulley: 263.9 g

  • Weight of Idler Pulley: 179.8 g

  • Weight of Cart: 3.54 Kg

  • Weight of Belt: Stroke(mm) x 0.28 + 20.75 g

  • Travel per Revolution: 150 mm

  • Pulley Pitch Diameter: 47.74 mm

  • Pulley Material/Width: Steel / 25 mm

  • Breakaway Torque: 30 - 31 N-cm

  • Rolling Resistance: 8.2 g
