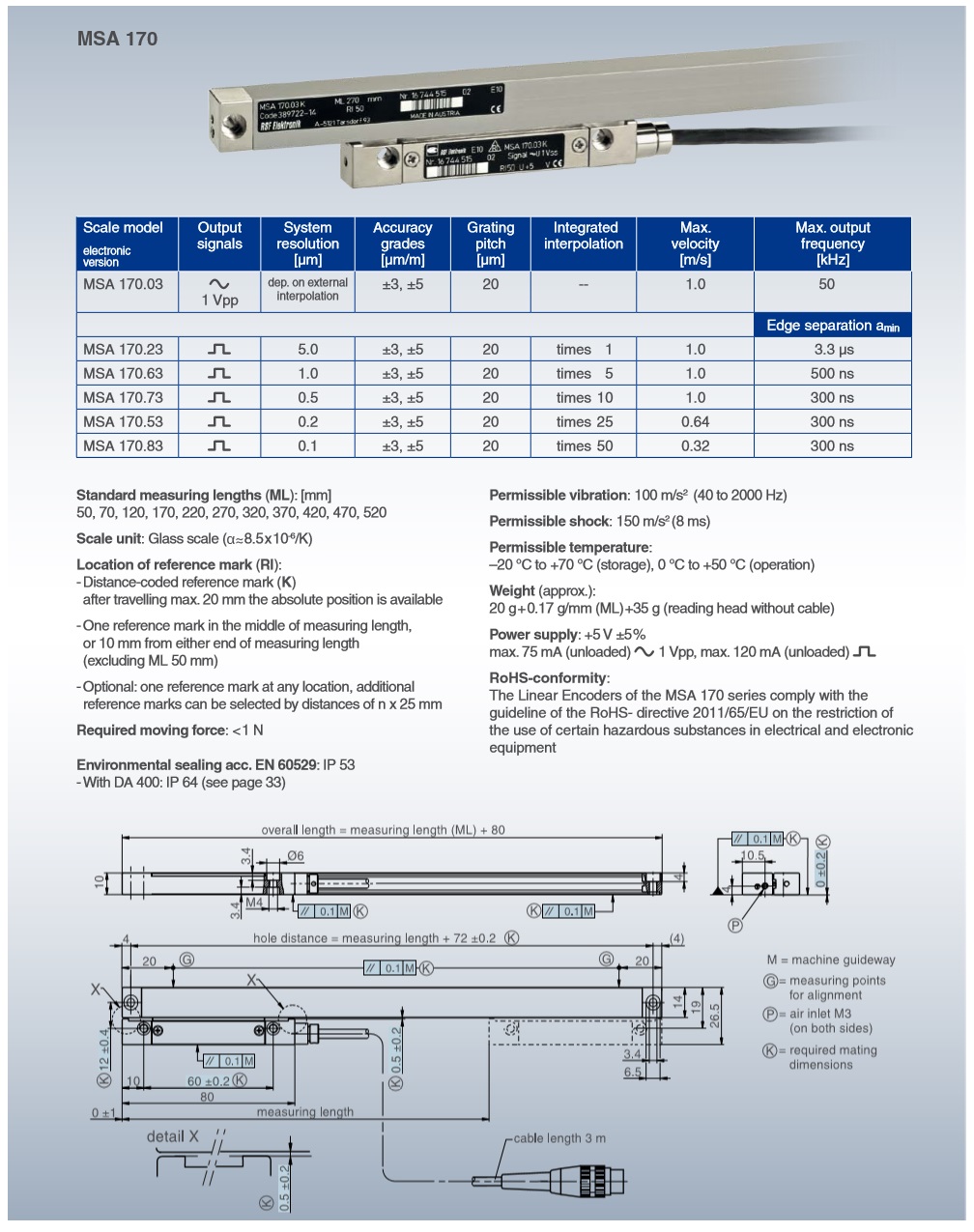

RSF Elektronik: Sealed Linear Encoders (MSA 170 Series)
Sealed linear encoders are particularly predestined for applications in automation and production technology. They are ideally suited for metrology, printing and robotics, especially in applications where protection for the scale and reading head is required.
Fields of Application:
Enclosed Linear Encoders are particularly suitable for use in situations which demand a high level of precision and efficiency despite harsh ambient conditions including coolant and lubricant ingress or soiling by shavings, filings or dust.
Performance Characteristics:
Compact measuring unit with optical scanning
Scale and reading head are protected by aluminum housing and sealing lips from soiling
Simple assembly
Patented coupling system between scanning carriage and scanning head allows greater assembly tolerances - without compromising precision
Reproducible thermal performance
Detachable connection cable
Typical Applications:
Machine tools: Turning, milling and grinding machines, erosion machines, press brakes
Electronics manufacturing: Circuit board drilling and milling, screen-printing systems,
Measurement technology: Microscope, measuring stage, presetting device
Linear units and drives
Rapid prototyping
Features:
System resolution: 0.1-5.0 µm
Very small cross-sectional profile
Scale unit: glass
Grating pitch: 20 µm
Miniaturized system
Measuring length: up to 520 mm
Model No.: MSA 170.03, MSA 170.23, MSA 170.53, MSA 170.63, MSA 170.73, MSA 170.83
