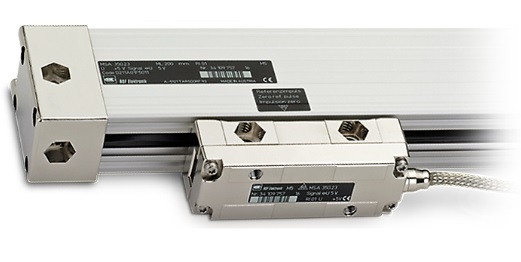

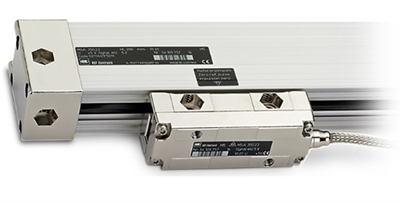

RSF ELEKTRONIK: Sealed Linear Encoders (MSA 35x Series)

Sealed Linear Encoders for Retrofitting Machine Tools

Sealed linear encoders are particularly predestined for applications in automation and production technology. They are ideally suited for metrology, printing and robotics, especially in applications where protection for the scale and reading head is required.


Features:

  • Retrofitting of machine tools

  • Very simple assembly

  • Robust housing

  • Various mechanical version

  • System resolution: 0.5-10.0 µm

  • Large cross-sectional profile

  • Scale unit: Glass

  • Grating pitch: 20, 40 µm

  • Max. measuring length: 3040 mm

  • Rigid mounting; large cross-section

  • Mounting holes on the extrusion ends

  • Reference marks

  • Additional mounting support for longer measuring lengths

  • MSA 352 is equipped with an additional set of sealing lips; the other features are identical with MSA 350


Model No.: MSA 350.23, MSA 350.24, MSA 350.63, MSA 350.64, MSA 350.73, MSA 352.23, MSA 352.24, MSA 352.63, MSA 352.64, MSA 352.73
