RSF Elektronik: MSA 4xx Series Enclosed Linear Encoders are particularly suitable for use in situations which demand a high level of precision and efficiency despite harsh ambient conditions including coolant and lubricant ingress or soiling by shavings, filings or dust. Performance Characteristics: Compact measuring unit with optical scanning Scale and reading head are protected by aluminium housing and sealing lips from soiling Simple assembly Patented coupling system between scanning carriage and scanning head allows greater assembly tolerances - without compromising precision Reproducible thermal performance Detachable connection cable
Machine tools: Turning, milling and grinding machines, erosion machines, press brakes Electronics manufacturing: Circuit board drilling and milling, screen-printing systems, Measurement technology: Microscope, measuring stage, presetting device Linear units and drives Rapid prototyping

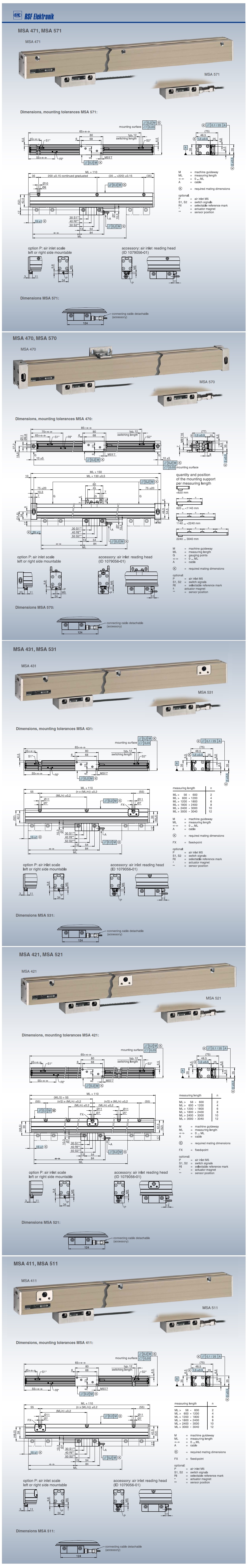

System resolution: 0.02-5.0 µm Large cross-sectional profile Scale unit: glass, glass ceramic Grating pitch: 8, 10, 20 µm Standard with fixed connecting cable Defined thermal behavior Large cross-sectional profile Measuring length: up to 3040 mm Various mechanical versions

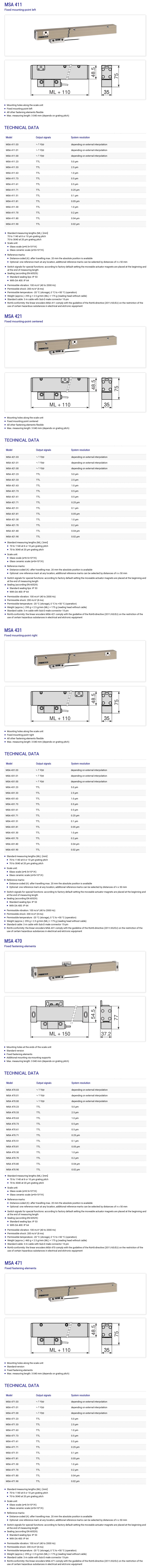

Model No.: MSA 411.00, MSA 411.01, MSA 411.03, MSA 411.23, MSA 411.30, MSA 411.33, MSA 411.51, MSA 411.61, MSA 411.63, MSA 411.70, MSA 411.71, MSA 411.73, MSA 411.80, MSA 411.81, MSA 411.90, MSA 421.00, MSA 421.01, MSA 421.03, MSA 421.23, MSA 421.30, MSA 421.33, MSA 421.51, MSA 421.61, MSA 421.63, MSA 421.70, MSA 421.71, MSA 421.73, MSA 421.80, MSA 421.81, MSA 421.90, MSA 431.00, MSA 431.01, MSA 431.03, MSA 431.23, MSA 431.30, MSA 431.33, MSA 431.51, MSA 431.61, MSA 431.63, MSA 431.70, MSA 431.71, MSA 431.73, MSA 431.80, MSA 431.81, MSA 431.90, MSA 470.00, MSA 470.01, MSA 470.03, MSA 470.23, MSA 470.30, MSA 470.33, MSA 470.51, MSA 470.61, MSA 470.63, MSA 470.70, MSA 470.71, MSA 470.73, MSA 470.80, MSA 470.81, MSA 470.90, MSA 471.00, MSA 471.01, MSA 471.03, MSA 471.23, MSA 471.30, MSA 471.33, MSA 471.51, MSA 471.61, MSA 471.63, MSA 471.70, MSA 471.71, MSA 471.73, MSA 471.80, MSA 471.81, MSA 471.90

|
|
|
 |
|
 |
|
