Misumi: Belt Drive Actuator (MSA-NBC Series)
Misumi: Belt Drive Actuator (MSA-NBC Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSA-NBC
.

Description Specifications and Drawings

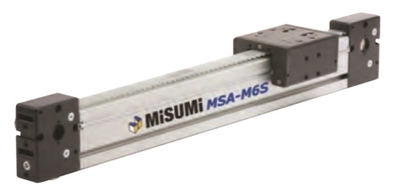

Misumi: Belt Drive Actuator (MSA-NBC Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components


Specifications
:

  • Maximum Load: 45.36 kg (Horizontal), 45.36 kg (Vertical)

  • Maximum Speed: 2540 mm/sec (Horizontal), 1270 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Moment Load: 34 Nm

  • Acceleration Exceeding: 5 G's

  • Beam Dimensions: 56 x 56 mm

  • Weight: 2.95 kg (First meter of travel), 1.36 kg (Additional per meter)

  • Standard Stroke: 325 to 5675 mm (50mm Pitch)

  • Standard Length: 750 to 6100 mm (50mm Pitch)

  • Weight of Drive Pulley: 109.7 g

  • Weight of Idler Pulley: 100.4 g

  • Weight of Cart: 408.23 g

  • Weight of Belt: Stroke(mm) x 0.09 + 16 g

  • Travel per Revolution: 150 mm

  • Pulley Pitch Diameter: 33.42 mm

  • Pulley Material/Width: Steel / 12 mm

  • Breakaway Torque: 21.2 - 22.6 N-cm

  • Rolling Resistance: 0.91 g
