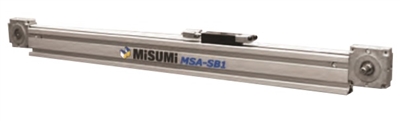

Misumi: Belt Drive Actuator (MSA-SB1 Series)
Misumi: Belt Drive Actuator (MSA-SB1 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSA-SB1
.

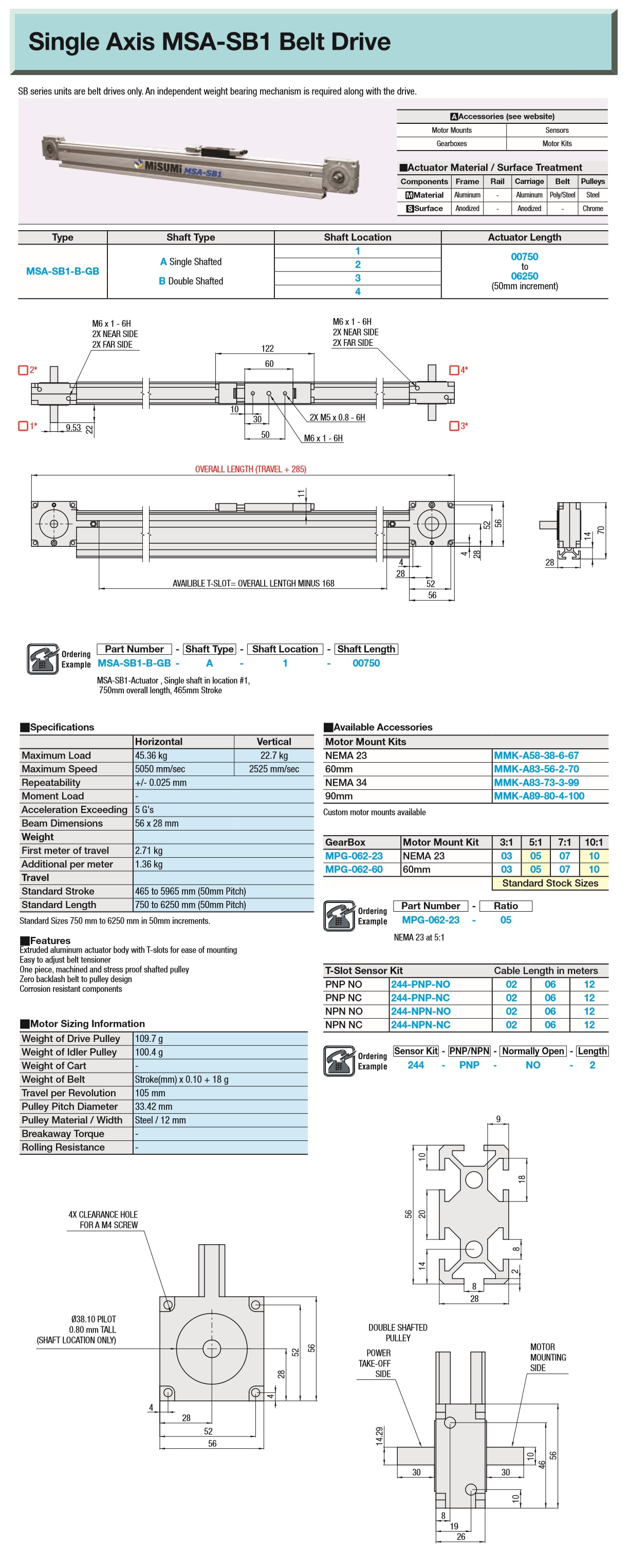

Description Specifications and Drawings


Misumi: Belt Drive Actuator (MSA-SB1 Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components

Specifications:

  • Maximum Load: 45.36 kg (Horizontal), 22.7 kg (Vertical)

  • Maximum Speed: 5050 mm/sec (Horizontal), 2525 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Acceleration Exceeding: 5 G's

  • Beam Dimensions: 56 x 28 mm

  • Weight: 2.71 kg (First meter of travel), 1.36 kg (Additional per meter)

  • Standard Stroke: 465 to 5965 mm (50mm Pitch)

  • Standard Length: 750 to 6250 mm (50mm Pitch)

  • Weight of Drive Pulley: 109.7 g

  • Weight of Idler Pulley: 100.4 g

  • Weight of Belt: Stroke(mm) x 0.10 + 18 g

  • Travel per Revolution: 105 mm

  • Pulley Pitch Diameter: 33.42 mm

  • Pulley Material/Width: Steel / 12 mm
