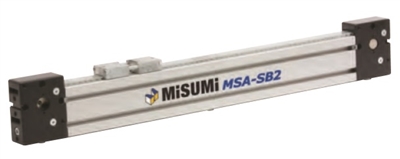

Misumi: Belt Drive Actuator (MSA-SB2 Series)
Misumi: Belt Drive Actuator (MSA-SB2 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSA-SB2
.

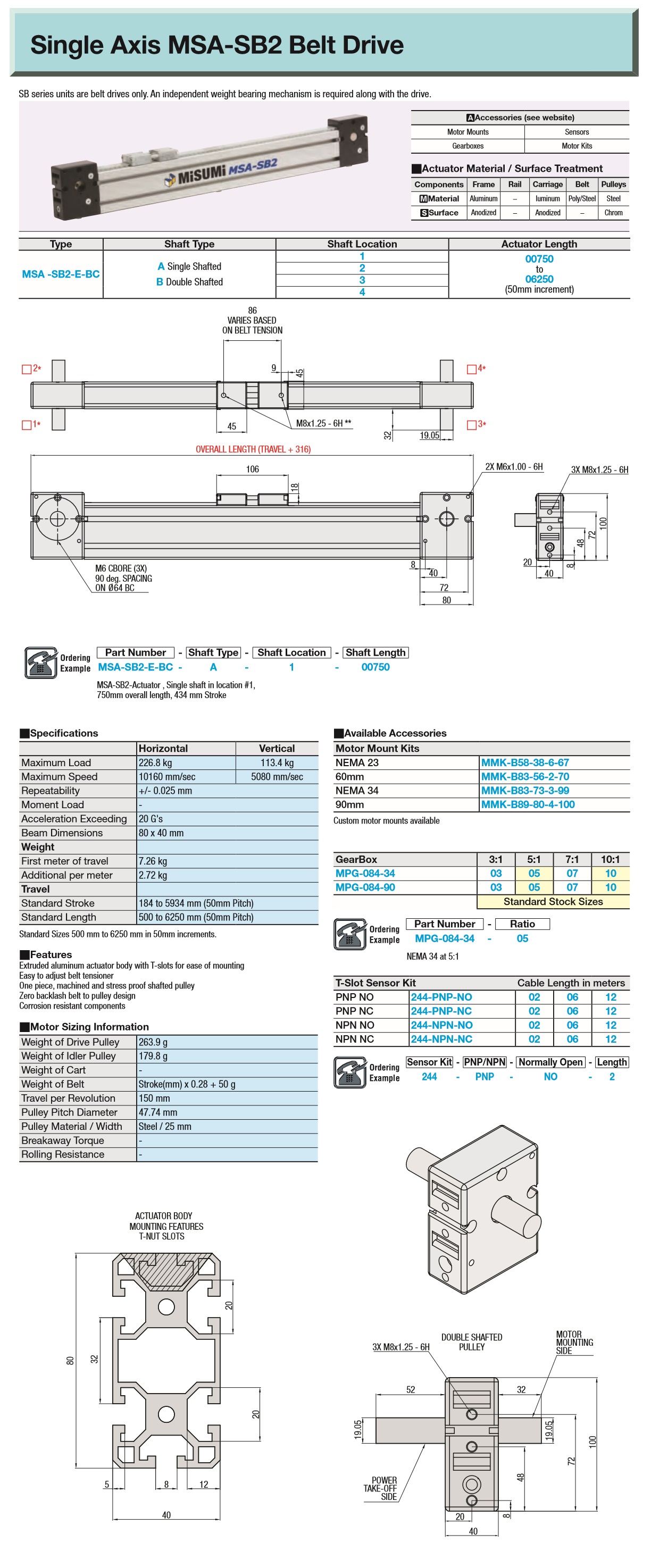

Description Specifications and Drawings


Misumi: Belt Drive Actuator (MSA-SB2 Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components


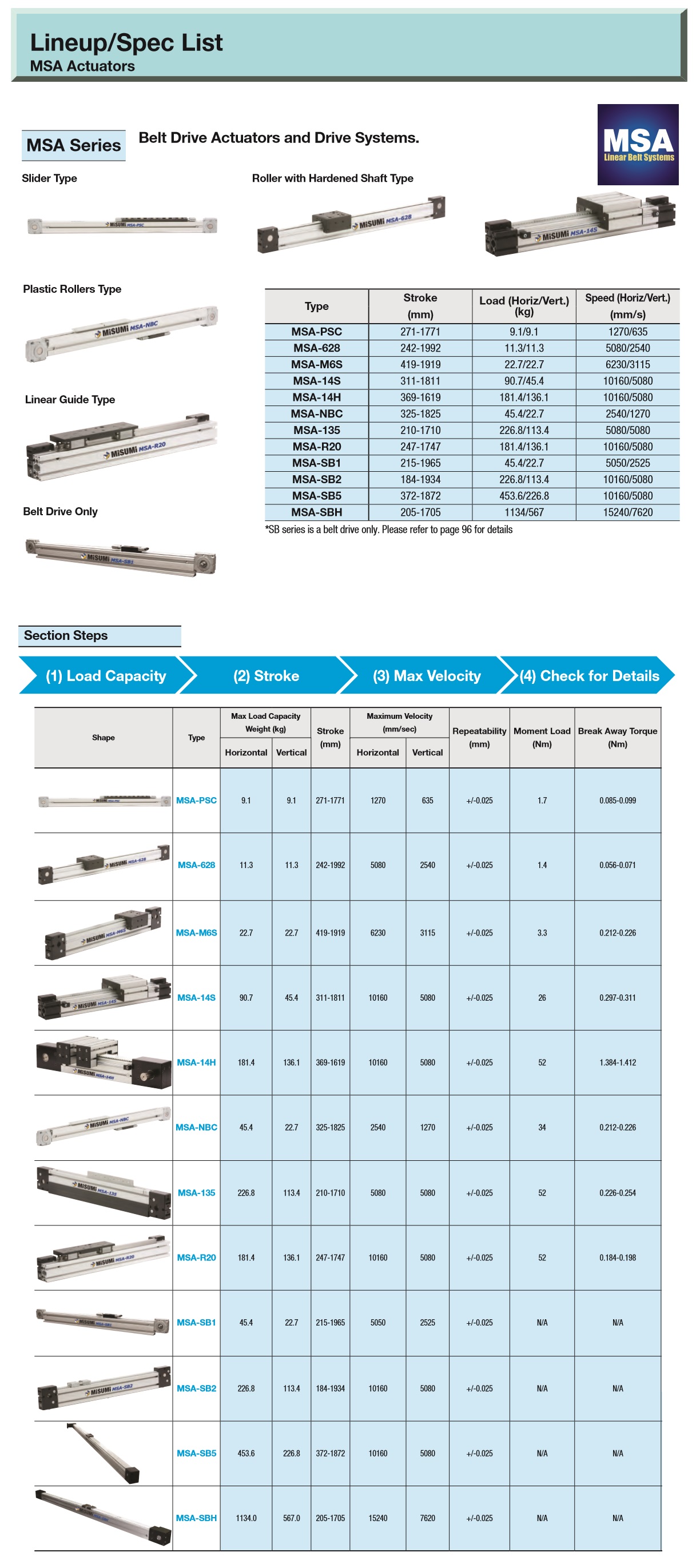

Specifications:

  • Maximum Load: 226.8 kg (Horizontal), 113.4 kg (Vertical)

  • Maximum Speed: 10160 mm/sec (Horizontal), 5080 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Acceleration Exceeding: 20 G's

  • Beam Dimensions: 80 x 40 mm

  • Weight: 7.26 kg (First meter of travel), 2.72 kg (Additional per meter)

  • Standard Stroke: 184 to 5934 mm (50mm Pitch)

  • Standard Length: 500 to 6250 mm (50mm Pitch)

  • Weight of Drive Pulley: 263.9 g

  • Weight of Idler Pulley: 179.8 g

  • Weight of Belt: Stroke(mm) x 0.28 + 50 g

  • Travel per Revolution: 150 mm

  • Pulley Pitch Diameter: 47.74 mm

  • Pulley Material/Width: Steel/25 mm
