Misumi: Belt Drive Actuator (MSA-SB5 Series)
Misumi: Belt Drive Actuator (MSA-SB5 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSA-SB5
.

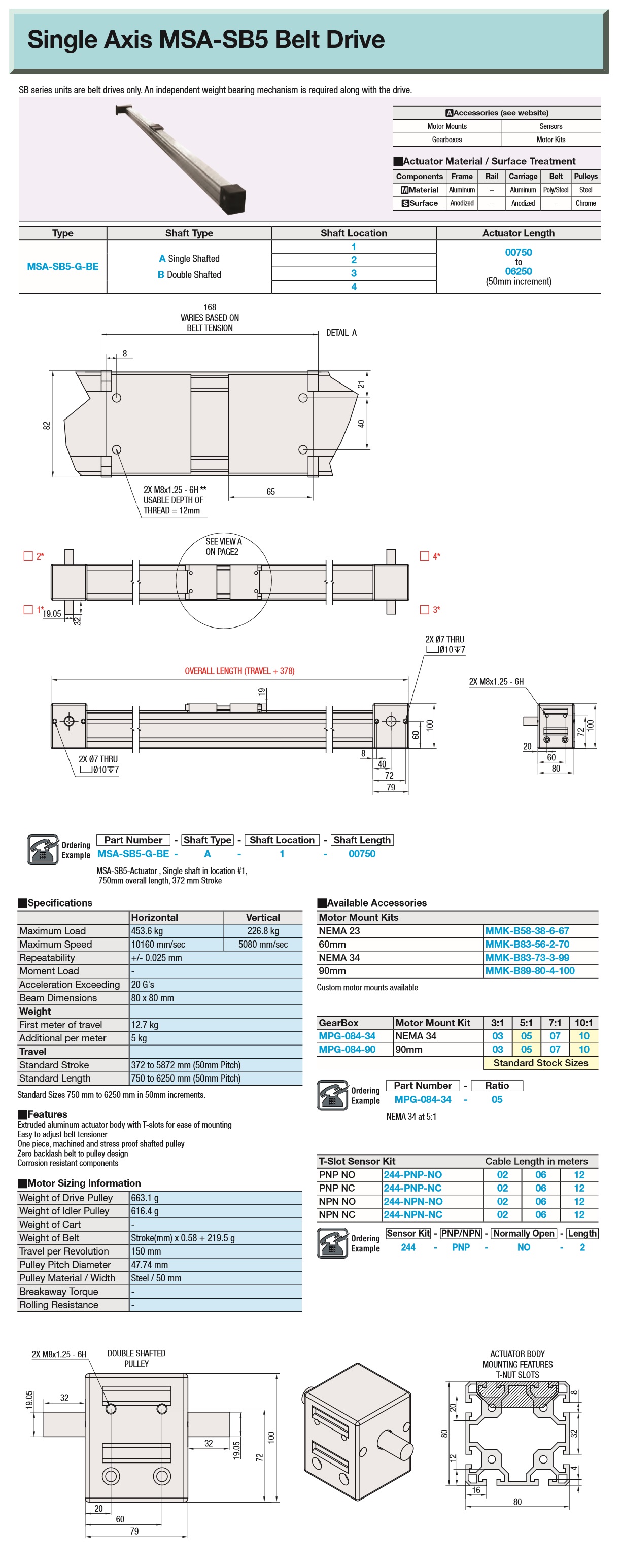

Description Specifications and Drawings

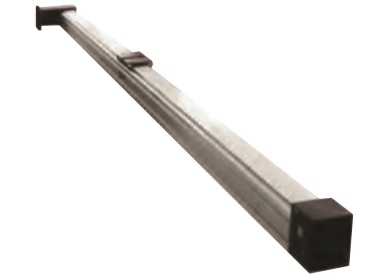

Misumi: Belt Drive Actuator (MSA-SB5 Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components


Specifications:

  • Maximum Load: 453.6 kg (Horizontal), 226.8 kg (Vertical)

  • Maximum Speed:10160 mm/sec (Horizontal), 5080 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Acceleration Exceeding: 20 G's

  • Beam Dimensions: 80 x 80 mm

  • Weight: 12.7 kg (First meter of travel), 5 kg (Additional per meter)

  • Standard Stroke: 372 to 5872 mm (50mm Pitch)

  • Standard Length: 750 to 6250 mm (50mm Pitch)

  • Weight of Drive Pulley: 663.1 g

  • Weight of Idler Pulley: 616.4 g

  • Weight of Belt: Stroke(mm) x 0.58 + 219.5 g

  • Travel per Revolution: 150 mm

  • Pulley Pitch Diameter: 47.74 mm

  • Pulley Material/Width: Steel / 50 mm
