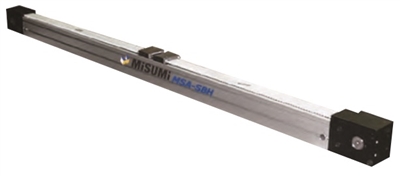

Misumi: Belt Drive Actuator (MSA-SBH Series)
Misumi: Belt Drive Actuator (MSA-SBH Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: MSA-SBH
.

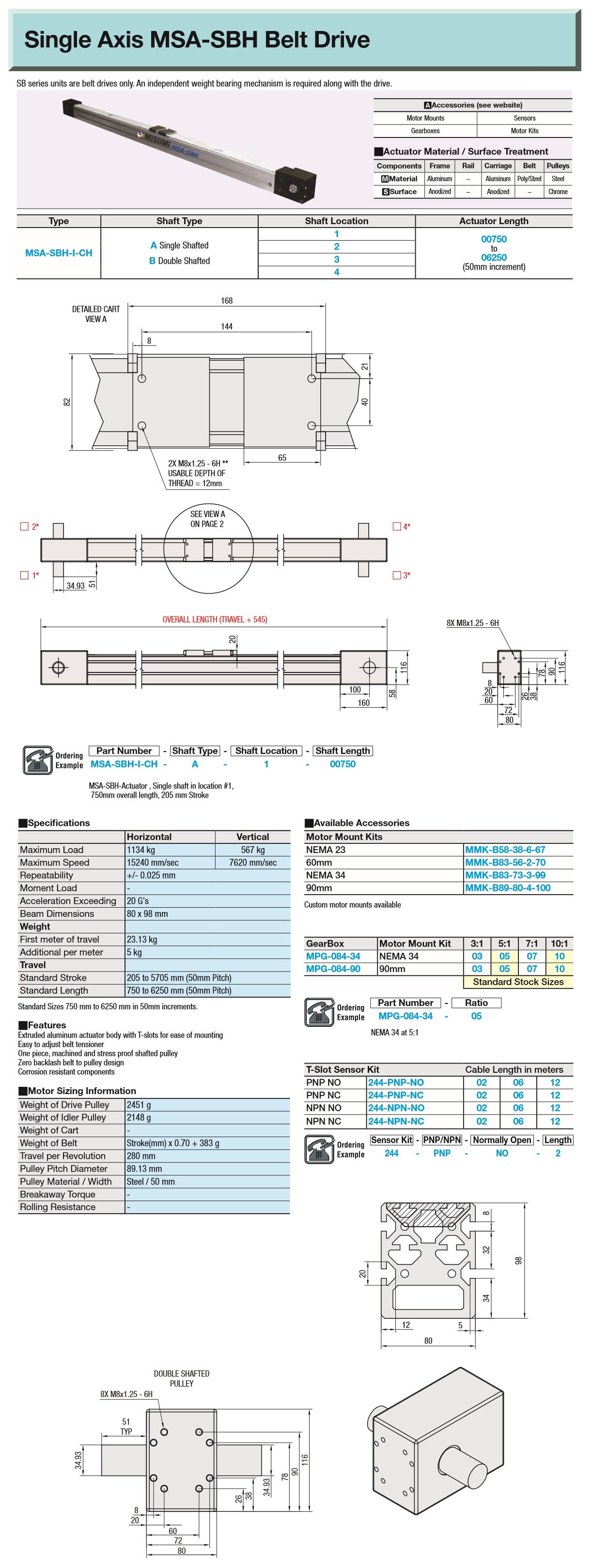

Description Specifications and Drawings


Misumi: Belt Drive Actuator (MSA-SBH Series)

Features:

  • Extruded aluminum actuator body with T-slots for ease of mounting

  • Easy to adjust belt tensioner

  • One piece, machined and stress proof shafted pulley

  • Zero backlash belt to pulley design

  • Corrosion resistant components

Specifications:

  • Maximum Load: 1134 kg (Horizontal), 567 kg (Vertical)

  • Maximum Speed: 15240 mm/sec (Horizontal), 7620 mm/sec (Vertical)

  • Repeatability: +/- 0.025 mm

  • Acceleration Exceeding: 20 G's

  • Beam Dimensions: 80 x 98 mm

  • Weight: 23.13 kg (First meter of travel), 5 kg (Additional per meter)

  • Standard Stroke: 205 to 5705 mm (50mm Pitch)

  • Standard Length: 750 to 6250 mm (50mm Pitch)

  • Weight of Drive Pulley: 2451 g

  • Weight of Idler Pulley: 2148 g

  • Weight of Belt: Stroke(mm) x 0.70 + 383 g

  • Travel per Revolution: 280 mm

  • Pulley Pitch Diameter: 89.13 mm

  • Pulley Material/Width: Steel / 50 mm
